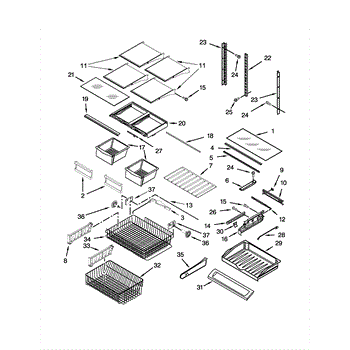

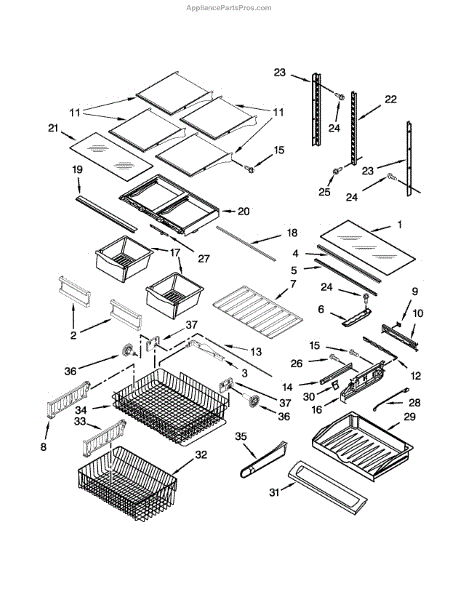

Parts for Ikea IX6HHEXDSM00: Shelf Parts

Glass shelf that provides a sturdy, flat surface for organizing refrigerator items and maximizing usable storage. Replaces damaged or missing shelves to restore stable support and proper spacing inside the fridge. What it does:

• Provides a stable surface for food containers, beverages and produce.
• Restores correct shelf height and spacing for efficient storage and door/drawer operation.
• Replaces cracked, chipped or broken glass to prevent items from falling or shifting.
• Installs into existing shelf rails to re-establish usable storage area.

• Remove all items from the shelf area and support the glass at both ends during removal and installation.
• Align the shelf with the existing rails and slide evenly until fully seated; do not force.
• Handle broken glass with heavy gloves and dispose of the old shelf safely.

This crisper drawer front replaces the damaged face of your refrigerator's produce bin, restoring a solid handhold and proper drawer fit. Install it to keep contents contained and help the drawer open, close, and align smoothly. What it does:

• Attaches to the front of the crisper pan and serves as the handhold for opening and closing
• Retains items inside the bin to prevent spills into the compartment
• Helps the drawer sit squarely and slide correctly in its tracks
• Common symptoms: cracked or missing front, loose/broken tabs, drawer hard to open/close, or popping off rails

• 1 crisper drawer front

• Disconnect power to the refrigerator before servicing
• Remove the crisper drawer and place it on a padded, flat surface
• Release the locking tabs/clips to remove the old front; avoid over-flexing the drawer box
• Align the new front and press until all tabs fully engage, then reinstall the drawer

This replacement oven door handle restores a secure grip for opening and closing the oven door. It replaces a damaged, loose, or missing handle to make door use safer and more convenient. What it does:

• Provides a sturdy grip for opening and closing the oven door
• Replaces handles that are cracked, bent, loose, or missing
• Helps prevent slippage and improves user control when handling hot appliances
• Matches the original mounting style for a straightforward replacement

• Use basic hand tools; support the door while removing and installing the handle to avoid injury or damage
• Disconnect power to the appliance or ensure it is cool before attempting replacement
• Tighten mounting fasteners securely but do not overtighten to avoid stripping

This replacement shelf trim restores the finished front edge of a refrigerator shelf, helping keep small items from sliding off and improving the shelf's appearance. It's the correct cosmetic/edge piece for a damaged, cracked, or missing shelf front. What it does:

• Attaches to the front edge of a refrigerator shelf to provide a finished trim and edge protection
• Helps prevent small items from sliding off the shelf front
• Replaces cracked, chipped, or broken shelf edging that affects appearance or function
• Matches the original shelf front location and mounting style

• One shelf trim

• Remove the shelf and place on a soft, stable surface before installing the trim
• Trim typically snaps onto the shelf front; press evenly until clips engage
• Handle glass shelves with care to avoid breakage; wear gloves and eye protection as needed
• If clips are damaged or installation feels forced, review the shelf and clip condition.

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

This lower basket tray replaces the damaged or missing drip pan beneath the dishwasher's lower rack to help contain spills and protect the tub. It restores proper water containment and supports lower-rack stability for everyday cycles. What it does:

• Sits under the lower dishwasher rack to catch drips and small debris
• Helps direct water flow away from components and into the drain area
• Prevents direct contact between dishes and the tub floor where applicable
• Useful when the original tray is cracked, warped, or missing

• One lower basket tray

• Designed for straightforward drop-in replacement; no special tools typically required
• Disconnect power and shut off water to the appliance before working on it
• Inspect surrounding rack supports and clips; replace any damaged hardware for proper fit
• Dispose of the old tray according to local regulations

This is a flat replacement glass shelf for refrigerator interiors that provides a stable, easy-to-clean surface for storing food and containers. Restores usable shelving when the original shelf is cracked, chipped, or missing. What it does

• Replaces broken, cracked, or missing interior shelving so items sit level and secure
• Provides a smooth, easy-to-wipe surface that resists stains and spills
• Supports typical fridge items like containers, produce bins, and packaged foods
• Helps maintain organized storage and prevents items from falling through damaged shelving

• One flat glass shelf

• Handle with care; wear cut-resistant gloves when installing to avoid injury
• Remove food and any loose items from the fridge area before replacing the shelf
• Slide into existing shelf supports or clips—do not force; ensure it seats evenly
• If shelf supports or clips are damaged, replace them before installing the glass

The Pantry Drawer Rail is an OEM part for Whirlpool refrigerators. This part allows it to slide in and out smoothly for easy access to stored food items.

Causes of a bad pantry drawer rail can include repeated heavy loads, general wear and tear, or accidental damage.

Symptoms of a bad pantry drawer rail include:

• Difficulty sliding the pantry drawer in and out
• Pantry drawer not staying in place
• Uneven or wobbly drawer movement
• Visible damage or bending of the rail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Note: Left Pantry End Cap

The Pantry End Cap is an OEM part for Whirlpool refrigerators. It provides structural support to the pantry drawer, ensuring smooth operation and proper alignment within the refrigerator.

Causes of a bad Pantry End Cap can include regular wear and tear, overloading the drawer, or accidental impact that causes the support to break or become misaligned. A damaged support can hinder the drawer's functionality and lead to difficulty in accessing stored items.

Symptoms of a bad Pantry Pantry End Cap include:

• Difficulty in opening or closing the pantry drawer
• The drawer not staying aligned or falling out of its track
• Cracks or breaks in the support structure
• Unusual noises when using the drawer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right Pantry End Cap

The Pantry END CAP is an OEM part for Whirlpool refrigerators. It functions as a structural component that helps to stabilize and support the pantry drawer, ensuring it slides smoothly and remains level within the refrigerator.

Symptoms of a bad Pantry END CAP include:

• The pantry drawer becoming difficult to open or close.
• Noticeable sagging or misalignment of the drawer, affecting its function.
• Unusual noises or resistance when moving the drawer, indicating improper support.

Causes of a bad pantry drawer support can include excessive weight in the drawer that exceeds design limits, physical impacts from loading or unloading items, or general wear and tear from frequent use.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the left-hand side Pantry Drawer Support, order part number WP12656105.

This CRSP brace is a replacement support component that helps stabilize and align the 36-inch crisp/crisper assembly for proper drawer operation and fit. Restores secure mounting and reduces movement or vibration of the crisp area. What it does:

• Provides structural support for the crisp/crisper assembly so drawers and panels sit squarely
• Helps stop sagging, misalignment, rattling or binding of the crisp area
• Maintains correct spacing for smooth opening and closing
• Replaces worn or damaged braces that compromise stability

• One CRSP brace

• Disconnect power to the appliance before beginning work to avoid electrical or mechanical hazards
• Basic hand tools are typically required; retain original fasteners
• Follow OEM service literature for exact removal and installation steps and torque recommendations
• Support panels or drawers while removing/installing the brace to prevent damage or injury

This shelf trim attaches to the edge of your refrigerator's glass shelf to create a finished lip and help contain minor spills. Replacing a cracked or missing trim restores shelf stability and keeps stored items from shifting. What it does:

• Snaps onto the glass shelf edge to provide a finished, protective lip
• Helps support and stabilize the glass shelf panel
• Aids in containing small spills on the shelf
• Common symptoms: trim is cracked, warped, missing, or won't stay attached

• 1 shelf trim

• Disconnect power and remove the shelf; work on a clean, padded surface
• Allow cold glass to reach room temperature before handling
• Align the trim with the shelf edge and press evenly until fully seated
• Wear cut-resistant gloves; avoid excessive force on glass edges

This is the glass insert for the crisper cover in your refrigerator. It sits above the crisper drawers to provide a sturdy shelf surface and help seal the drawers, restoring safe, usable storage when the original glass is damaged.

• Fits into the crisper cover frame to create the shelf surface above the drawers
• Helps the drawers maintain proper conditions by acting as the cover/lid
• Replaces cracked, chipped, or missing glass to restore stability
• Common symptoms: broken or shattered glass, unstable or sagging shelf, items tipping through the opening

• Disconnect power and remove food from the area before servicing
• Wear cut-resistant gloves; handle glass carefully
• Remove drawers if needed, lift out old glass from the cover frame, and clean the channels
• Set the new glass evenly into the frame without forcing; reinstall drawers

This replacement ladder secures and guides oven or range racks, restoring stable shelf positioning and smooth rack movement. It helps stop racks from tipping, sliding unevenly, or shifting during use. What it does:

• Provides a stable guide for oven/range racks so they slide in and out smoothly
• Prevents racks from tilting or falling when loading or removing cookware
• Reduces rattling or uneven movement caused by worn or damaged ladder guides
• Restores proper rack alignment and positioning

• Disconnect power to the appliance before beginning any work
• Remove racks and any obstructions to access the ladder mounting area
• Typically secures with clips or screws; retain hardware and install per OEM instructions

The Utility Pan is an OEM part for Whirlpool refrigerators. It is a storage drawer for various items in your refrigerator, such as deli meats, cheeses, and other small food items.

A bad utility drawer pan can be caused by regular use, accidental damage, or wear and tear over time. If you notice cracks, breaks, or warping in the pan, it may be time to replace it.

Symptoms of a bad utility drawer pan include:

• Cracks or breaks in the pan
• Warping or misalignment of the pan
• Difficulty in opening or closing the drawer

Replace your damaged or worn-out utility drawer pan with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Replace a damaged or missing freezer basket to restore organized, easy-access storage in your freezer compartment. This basket keeps items contained and properly positioned to support airflow and make loading and retrieval easier.

• Holds and organizes frozen items within the freezer compartment
• Seats on designated rails or locator tabs for secure, level placement
• Helps maintain airflow around stored packages
• Common symptoms: cracked, bent, or broken basket; won't sit level; or missing

• Empty the freezer area and remove the existing basket
• Align the new basket with the rails or locator tabs and lower into place—do not force
• Usually no tools required
• Wear gloves to protect hands from cold surfaces and sharp edges

This one-piece divider fits into a refrigerator shelf track to separate and stabilize items, helping keep food organized and upright. It restores the shelf layout and prevents items from sliding or shifting during normal use. What it does

• Separates and organizes food on a refrigerator shelf or compartment
• Helps keep bottles, containers, and small items upright and prevent tipping
• Restores proper shelf layout when the original divider is cracked or missing
• Provides a simple, low-profile partition without altering shelf surface

• One shelf divider

• Remove food and any loose shelving before installing to avoid spills
• Slide or snap the divider into the shelf track or designated slots; no special tools typically required
• Inspect mating shelf track for damage; replace track or shelf if divider will not seat securely
• Clean with mild detergent; avoid abrasive cleaners or high heat that could warp the plastic

This replacement freezer basket restores organized frozen storage and keeps items contained for easy access. It fits in the freezer compartment and provides a removable tray for holding packaged foods and loose items. What it does:

• Holds and organizes frozen food so items stay separated and accessible
• Prevents small items from falling into hard-to-reach areas of the freezer
• Replaces a cracked, bent, or missing freezer basket to restore usable storage
• Reduces rattling by keeping loose items grouped together

• Remove food from the area before installing to avoid spills or contamination
• Slide the basket into the freezer rails or ledges until it rests securely; no special tools usually required
• Inspect mounting rails or clips for damage and replace them if the basket does not seat properly
• Clean with mild detergent and dry thoroughly before returning food to the basket

Restore tidy storage in your refrigerator's deli/pantry drawer with this Pantry Drawer Divider. Replacing a cracked or missing divider keeps foods separated and helps the drawer slide and close properly without contents shifting or tipping.

• Separates and stabilizes items within the deli/pantry drawer for better organization
• Helps prevent contents from sliding and causing the drawer to bind
• Restores proper fit when the original divider is cracked, warped, or missing
• Typical symptoms: divider falls out or won't stay positioned; difficulty keeping foods organized

• Disconnect power to the refrigerator and remove items from the deli/pantry drawer
• Fully extend and lift out the drawer as directed in your user manual
• Align the divider with the molded slots/grooves and press or slide into place until secure
• Reinstall the drawer and verify smooth operation; do not force parts

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Left side mount

Right side mount
