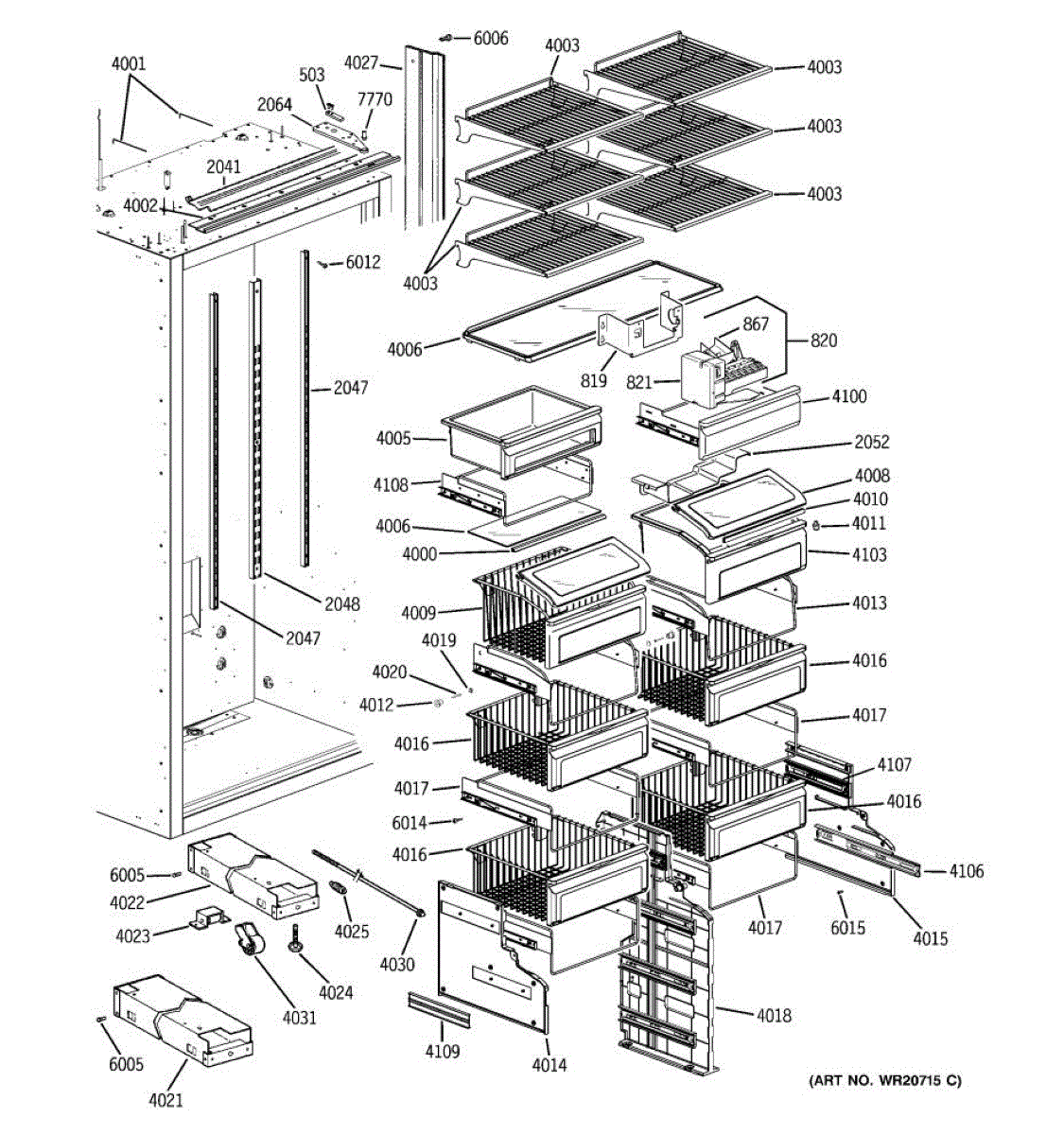

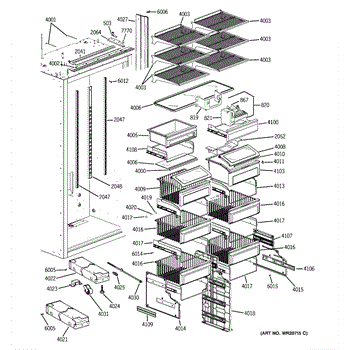

Parts for Ge ZIF360NXARH: 04 - Shelves & Drawers Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

This is the upper case hinge that secures and lets the refrigerator/freezer door pivot smoothly, restoring correct door alignment and sealing. Durable, direct-fit replacement for the refrigerator upper door hinge. What it does

• Supports the top of the door and provides the pivot point for opening and closing
• Keeps the door aligned to maintain a proper seal and even closing
• Replaces a cracked, bent, or worn hinge that can cause door sag or rubbing
• Works with the existing hinge pin and mounting hardware when in good condition

• One upper case hinge

• Unplug the appliance or turn off power before starting work
• Support the door while removing and installing the hinge to prevent drop or damage
• Reuse original screws and hinge pin if undamaged; replace any stripped hardware
• After installation, check door alignment and seal; adjust as needed for even gaps

Flexible front door seal (gasket) that restores a tight closure between the appliance door and cabinet to help maintain interior temperature and reduce moisture, frost and energy loss. Use when the existing seal is cracked, torn or no longer seals fully. What it does:

• Creates an airtight seal around the door to keep cold air in and warm, moist air out.
• Helps reduce frost build-up, water or ice between compartments, and visible condensation.
• Supports consistent internal temperatures to protect food and improve efficiency.
• Common symptom: visible gaps, a torn or deformed gasket, or cold loss around the door edge.

• Disconnect power or unplug the appliance before service.
• Remove food and any removable door shelves or bins that obstruct access.
• Clean and dry the door sealing surface before fitting the new gasket for best contact.
• Fit the gasket starting at a corner and work around the door; gently warm stiff seals to make them more pliable if needed.

This small replacement button glide restores smooth, reliable button movement on the appliance control panel, helping buttons press and release correctly for consistent operation. What it does:

• Provides a low-friction surface for control panel buttons to slide on
• Helps prevent buttons from sticking, binding, or feeling uneven
• Restores proper seating and tactile feedback for worn or damaged buttons
• Useful when buttons wobble, catch, or fail to make consistent contact

• Disconnect power (unplug or shut off circuit breaker) before servicing the control panel
• Typically accessible from the front control bezel; remove trim or key assembly as needed
• Handle small plastic parts carefully to avoid breaking tabs; reassemble trim in original order

A replacement showcase pivot bushing that supports the door pivot and helps the showcase door rotate smoothly. Restores proper pivot alignment to reduce wobble and rubbing for safer, quieter operation. What it does

• Provides a low-friction bearing surface at the showcase door pivot so the door opens and closes smoothly.
• Helps keep the pivot shaft centered to prevent door wobble or uneven movement.
• Reduces metal-on-metal contact that can cause noise, wear, or scraping.
• Commonly used when a door feels loose, binds, or hangs unevenly at the pivot.

• One (1) showcase pivot bushing.

• Disconnect power to the appliance before starting any repair.
• Remove the door or panel per the manufacturer's instructions to access the pivot area.
• Press or snap the bushing into the pivot housing until fully seated; replace pivot shaft/hardware as needed.
• Test door operation after installation; inspect pivot shaft and surrounding components for wear.

This snack pan assembly is the shallow refrigerator drawer that stores snacks and deli items in the fresh food compartment. Replace a cracked or missing pan to restore smooth sliding access and reliable, contained storage.

• Organizes smaller food items in the fresh food section
• Slides within the shelf rails for easy access
• Replaces cracked, broken, warped, or missing drawer
• Helps prevent spills or items falling due to a damaged bin

• Unplug the refrigerator or disconnect power before servicing interior parts
• Remove contents, pull the old pan straight out, and lift the front to clear the rails
• Inspect/clean rails and supports; transfer any reusable trim from the old pan if applicable
• Align and slide the new pan into the rails until fully seated

This lower vegetable basket assembly holds and organizes produce inside the refrigerator's crisper area, helping keep fruits and vegetables separated and contained for easier storage and access. What it does

• Provides a removable bin for storing fruits and vegetables in the refrigerator's lower crisper area.
• Keeps produce contained to prevent rolling and mixing with other items.
• Allows airflow and easy visibility of stored produce for quick access.
• Replaces a cracked, warped, or missing lower veg basket to restore proper storage function.

• Designed for drop-in or slide-in installation; handle gently to avoid cracking plastic.
• Remove all contents from the crisper area before installing; ensure rails/tracks are aligned.
• Inspect mounting rails and stops for damage; replace if worn to prevent basket misalignment.
• Disconnect power only if required by your model's service instructions.

The showcase pivot provides the pivot point that supports the washer's showcase assembly, restoring proper alignment and stable rotation for smoother operation and reduced noise or wobble. What it does:

• Serves as the pivot/support for the washer showcase assembly so the basket or door rotates as designed
• Keeps the showcase aligned to prevent rubbing, binding or uneven movement
• Helps reduce vibration and noise caused by a worn or damaged pivot
• Worn pivots can cause visible misalignment, wobbling or unusual noises during spin cycles

• Disconnect power and water supply before beginning any repair
• Remove access panels and note orientation of the old pivot before removing
• Inspect surrounding parts and replace if damaged
• Reassemble securely; run a short test cycle to verify alignment and operation

A #8-18 x 7/8 screw used to fasten appliance panels and components for secure operation. Small, corrosion-resistant fastener that restores proper fit and reduces rattling or loose parts. What it does:

• Secures trim, panels, brackets, or internal components to restore proper alignment
• Helps stop vibration and rattling caused by loose or missing fasteners
• Matches original thread size and length for correct fit in designated mounting points
• Used wherever a #8-18 x 7/8 machine/sheet metal screw is required

• Use the correct #2 Phillips or driver specified for the screw head to avoid stripping
• Do not overtighten; stop when snug to avoid damaging threads or components
• Disconnect power and remove panels before working near electrical parts
• Replace only with the same size and thread type for proper fit and safety

This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

This ice bucket cover assembly replaces the top cover that keeps ice contained and helps the dispenser operate cleanly. It restores a sealed opening for the ice bucket to reduce spills and contamination. What it does:

• Covers the ice bucket opening to keep ice from spilling into the fresh food compartment
• Helps keep ice cleaner by reducing exposure to refrigerator odors and debris
• Maintains proper alignment for the ice bucket and dispenser operation
• Reduces ice jamming or uneven dispensing caused by a damaged or missing cover

• Disconnect power to the refrigerator before servicing to avoid injury
• Remove the ice bucket before installing the cover; align cover tabs with bucket slots and snap into place
• Handle the cover carefully to avoid cracking the plastic
• Recheck tab engagement and alignment if the bucket does not seat properly after installation

This Slide Outer is the outer rail that supports and guides a refrigerator shelf/drawer, restoring smooth movement and proper alignment. It replaces a worn or broken outer slide to help shelves glide and stay level. What it does:

• Guides the shelf or drawer on one side and provides structural support during use
• Replaces a cracked, bent, or worn outer rail that causes sticking or uneven movement
• Helps restore proper alignment when a shelf tilts or binds while sliding
• Works with the matching inner slide and mounting hardware to enable smooth operation

• Disconnect power and empty the shelf/drawer before starting work
• Remove the shelf/drawer and any clips or screws holding the old slide; install in reverse order
• Use only the matching inner slide and hardware; fit before final assembly
• If mounting points are damaged, inspect cabinet/frame and replace as needed for secure installation

This outer drawer slide supports and guides a refrigerator drawer or pantry pan so it opens and closes smoothly. Replacing a worn or cracked slide restores alignment and helps prevent sticking, tipping, or spills.

• Attaches as the outer rail for the sliding drawer assembly
• Provides smooth gliding action and supports the drawer/pan
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to move, tilts or falls, cracked/broken rail, scraping or binding

• Disconnect power; empty and remove the affected drawer
• Remove the shelf/cover if needed to access the slide
• Take out mounting screws/clips; note the slide's orientation
• Install the new slide, ensure rails are parallel, and test drawer travel

Size: 8-16 x 2 inch ss.

This screw handle trim replaces the small decorative cover that hides and secures the mounting screw on a range/oven handle, restoring a finished look and preventing debris buildup around the screw. What it does:

• Covers the handle mounting screw and provides a clean finished appearance
• Helps keep crumbs and grease out of the screw cavity
• Stops a loose or missing trim from catching on clothing or hands
• Restores cosmetic look after handle removal or damage

• One screw handle trim

• Safety first: unplug the appliance or shut off power to the range before working
• Remove the handle screw, fit the trim over the screw area, then reinstall and tighten the screw securely (do not overtighten)
• Use the correct screwdriver and avoid forcing the trim; check alignment before final tightening
• If the original mounting hardware is damaged, replace it with OEM hardware

This is a bottom door hinge screw that secures the lower hinge assembly to the appliance door, restoring proper alignment and stable door movement. Use it to replace stripped, missing, or damaged hinge hardware. What it does

• Secures the bottom hinge to the door and helps keep the door aligned and level.
• Restores smooth, consistent opening and closing when a worn or missing screw causes sagging or misalignment.
• Prevents further wear to hinge components by maintaining correct hinge positioning.
• Works with original hinge assemblies; use the correct screw to avoid loose or unstable doors.

• Disconnect power to the appliance before performing any door or hinge repairs.
• Support the door while removing/installing the hinge screw to prevent the door from falling or causing injury.
• Use the correct screwdriver or bit to avoid stripping the screw head.
• Replace any additional worn hinge hardware as needed for proper alignment.

A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed
