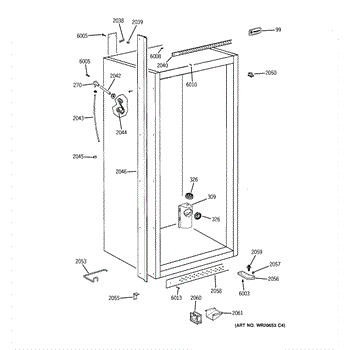

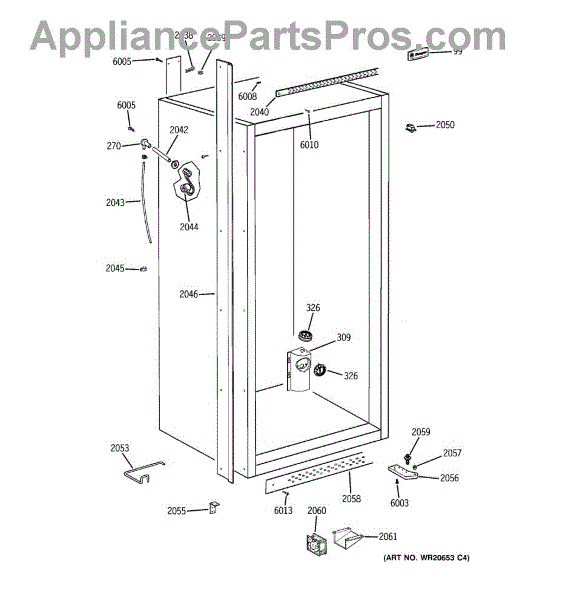

Parts for Ge ZIF360NXARH: 03 - Cabinet Parts (2) Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This rubber grommet seals and cushions the refrigerator's water fill tube where it passes through the liner, helping prevent leaks and vibration. It's a simple, low-cost part that restores a watertight, stable tube connection. What it does:

• Provides a sealed passage for the water fill tube to prevent drips and pooling
• Cushions the tube to reduce vibration and wear
• Helps keep the fill tube properly positioned for reliable water flow
• Commonly replaced when the tube leaks, moves, or the grommet is cracked or missing

• One rubber water fill grommet

• Turn off the water supply and unplug the appliance before servicing
• Access may require removing interior shelves or liners—handle panels carefully
• Press the grommet into the liner opening and feed the fill tube through until seated

This left-hand bottom light assembly restores illumination to the lower compartment, making it easier to see food and controls. It replaces a damaged or non-working lower light housing for improved visibility and safe use. What it does:

• Provides interior lighting for the refrigerator's lower/bottom left area
• Replaces a cracked lens, damaged housing, or faulty light assembly that causes no light or flickering
• Secures into the factory left-hand mounting location and connects to the existing wiring harness
• Helps you locate items and read controls in the lower compartment

• Disconnect power to the appliance before starting any repair
• Remove shelves/drawers as needed to access the lower left light housing
• Handle lens and bulb/socket carefully to avoid damage; replace bulb if necessary
• Secure assembly with factory screws and restore power; test operation before reassembling

This right-side bottom light assembly replaces the damaged or burned-out light housing in the refrigerator fresh-food section, restoring interior illumination and a finished appearance. Fits in the lower right area where the original light assembly mounts. What it does:

• Houses and protects the refrigerator interior light bulb so the fresh-food area stays illuminated
• Restores secure mounting and proper light direction when the original housing is cracked, loose, or missing
• Helps prevent moisture and debris from contacting the bulb or socket
• Resolves symptoms such as dim or no light in the lower/right compartment, rattling or a loose lens

• One right-side bottom light assembly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove only the fasteners or clips specified by the appliance design; handle the lens and bulb carefully to avoid damage
• If replacing the bulb, use the correct replacement bulb type and do not overtighten

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This fill tube assembly delivers water to the refrigerator ice maker and dispenser area, restoring proper fill function and reducing leaks from cracked or worn tubing. A direct-fit replacement for the original fill pathway. What it does

• Routes water from the inlet to the ice maker/dispenser so ice trays and dispenser fill correctly
• Replaces cracked, split, or clogged tubing that can cause leaks or reduced water flow
• Helps stop intermittent filling or underfilled ice trays when the original tube is damaged
• Works with the refrigerator's existing valve and mounting points for a like-for-like repair

• One fill tube assembly

• Turn off power and shut off the water supply before starting any repair
• Inspect mounting clips and seals; reuse or replace as needed for a watertight fit
• Some models require removing interior panels or the ice maker for access; follow OEM instructions
• Test for leaks after reconnecting water and restoring power

Size: 1/4 inch diameter.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-16 x 2 inch ss.

Size: 10-32 GXTT FLP.595 S
