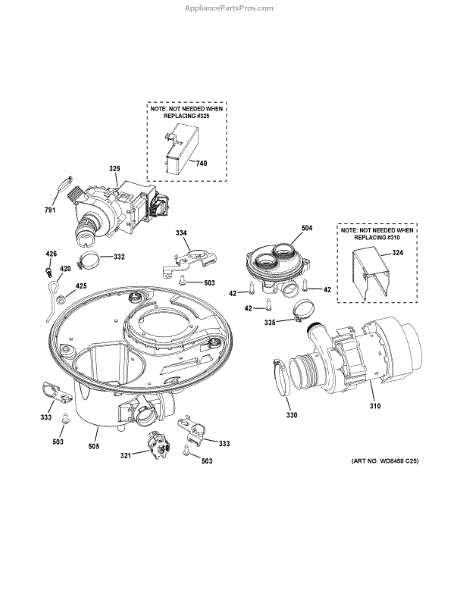

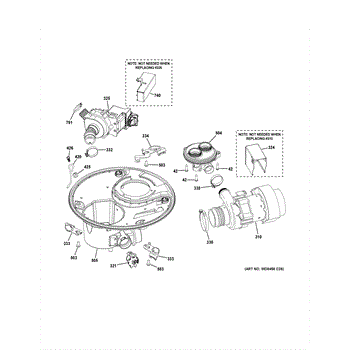

Parts for Ge GDF520PGD2BB: Sump & Motor Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a stainless steel hex washer-head screw used to fasten and secure components. Its integrated washer head provides a broad bearing surface for a tight, durable hold in appliance assemblies.

• Secures panels, brackets, and hardware to prevent looseness and vibration
• Restores proper fastening when originals are stripped, missing, or corroded
• Stainless construction helps resist rust in moisture-prone areas
• Common symptoms of a needed replacement include rattling, loose panels, or missing hardware

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct nut driver or socket for the hex head to avoid stripping
• Replace any damaged or missing fasteners in matched pairs or sets for even clamping
• Do not overtighten; snug to manufacturer torque guidance when available

The Turbidity Sensor Assembly is an OEM part for GE dishwashers. It is responsible for monitoring the cleanliness of the water during the dishwashing cycle. The turbidity sensor measures the level of particles and impurities in the water, allowing the dishwasher to adjust the cycle accordingly. It helps prevent issues such as over-washing or under-washing, resulting in clean dishes every time.

A bad Turbidity Sensor Assembly can lead to improper cleaning performance or cycle errors. Causes of a bad turbidity sensor can include sensor malfunction, damage to the sensor, or buildup of residue affecting its accuracy.

Symptoms of a bad Turbidity Sensor Assembly include:

• Incomplete or inadequate cleaning of dishes
• Error codes related to water cleanliness or turbidity
• Extended or shortened cycle times without reason
• Persistent residue or film on dishes after the cycle

Replace your faulty or damaged Turbidity Sensor Assembly with this genuine OEM GE part to ensure precise cleaning performance and spotless results.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This shield wash pump circulates dishwasher wash water so dishes get cleaned and rinsed effectively. Replaces a failed or noisy pump to restore normal wash performance and water movement inside the tub. What it does:

• Circulates wash and rinse water through the spray arms for proper cleaning and rinsing
• Helps maintain consistent water flow and pressure during the wash cycle
• Reduces loud noise or grinding when a worn pump or motor is replaced
• Commonly replaced when the dishwasher pauses mid-cycle, won't complete cycles, or leaks from the pump area

• One complete shield wash pump assembly (pump with motor and mounting shield as shown)

• Recommended for users comfortable with appliance disassembly; disconnect power and water before starting
• Inspect seals and mounting gaskets and replace if worn to prevent leaks
• Tighten hose clamps and check hose routing during reassembly to avoid kinks or stress

The Single Speed Dishwasher Drain Pump Kit is an OEM replacement part for GE dishwashers. This important part works to drain water from the dishwasher at the end of each cycle. The pump ensures water is fully drained from the tub and pipes to prevent damage.

Causes of a bad drain pump can include normal wear and tear over extended use, blockages in the drain system, or failures in the electric motor.

Symptoms of a bad drain pump include:

• Incomplete or slow draining of water after cycles
• Water remaining in the bottom of the tub
• Strange noises or vibrations coming from the pump motor
• Leaks in or around the drain pump area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This clamp kit replaces worn Piranha-style clamps used in the dishwasher's wash system. Restores a tight, reliable seal on internal connections to help prevent leaks and maintain proper water circulation for consistent cleaning results.

• Secures internal hose and pump connections within the wash system
• Helps stop water leaks caused by loose, stretched, or damaged clamps
• Supports proper circulation and wash performance by keeping joints sealed
• Common symptoms: water under the unit, drips at hose joints, loose connections, vibration or rattling from the sump area

• Disconnect power and shut off the water supply before servicing
• Access the sump/pump area from the front toe-kick or by pulling the unit out as needed
• Replace one connection at a time; position and fully seat the new clamp(s) on clean hose/barb surfaces
• Restore power/water and run a short cycle to check carefully for leaks before reinstalling panels

This clamp kit replaces worn Piranha-style clamps used in the dishwasher's wash system. Restores a tight, reliable seal on internal connections to help prevent leaks and maintain proper water circulation for consistent cleaning results.

• Secures internal hose and pump connections within the wash system
• Helps stop water leaks caused by loose, stretched, or damaged clamps
• Supports proper circulation and wash performance by keeping joints sealed
• Common symptoms: water under the unit, drips at hose joints, loose connections, vibration or rattling from the sump area

• Disconnect power and shut off the water supply before servicing
• Access the sump/pump area from the front toe-kick or by pulling the unit out as needed
• Replace one connection at a time; position and fully seat the new clamp(s) on clean hose/barb surfaces
• Restore power/water and run a short cycle to check carefully for leaks before reinstalling panels

This latch cam engages the door latch mechanism so the appliance door closes and stays secure during cycles. A worn or broken cam can prevent the door from latching or cause the door to feel loose. What it does

• Rotates with the latch to lock the door securely during operation
• Ensures the latch striker catches and holds the door closed
• Common symptom: door won't stay latched or appliance won't start
• Common symptom: door feels loose, noisy, or intermittently opens during cycles

• One latch cam

• Disconnect power before starting any repair to avoid shock or injury
• Inspect surrounding latch components and replace any visibly damaged parts
• Use basic hand tools; keep track of small fasteners and alignment during reassembly
• Test door operation several times after installation to ensure secure engagement

This clamp kit replaces worn Piranha-style clamps used in the dishwasher's wash system. Restores a tight, reliable seal on internal connections to help prevent leaks and maintain proper water circulation for consistent cleaning results.

• Secures internal hose and pump connections within the wash system
• Helps stop water leaks caused by loose, stretched, or damaged clamps
• Supports proper circulation and wash performance by keeping joints sealed
• Common symptoms: water under the unit, drips at hose joints, loose connections, vibration or rattling from the sump area

• Disconnect power and shut off the water supply before servicing
• Access the sump/pump area from the front toe-kick or by pulling the unit out as needed
• Replace one connection at a time; position and fully seat the new clamp(s) on clean hose/barb surfaces
• Restore power/water and run a short cycle to check carefully for leaks before reinstalling panels

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This drain pump hanger secures the washer's drain pump to the outer tub, keeping the pump and hoses aligned so the pump can remove water reliably. Use it to replace a cracked or broken support that lets the pump shift. What it does

• Holds the drain pump firmly in place and maintains proper pump alignment.
• Helps reduce pump vibration and noise from a loose or mispositioned pump.
• Prevents the pump from pulling on hoses or becoming dislodged during the spin/drain cycle.
• A worn or broken hanger can contribute to poor draining, intermittent drainage, or unusual pump noise.

• One drain pump hanger.

• Disconnect power to the washer before beginning any repair.
• Access typically via the washer's lower front or rear panel; follow for disassembly.
• Inspect and reuse mounting hardware and grommets if undamaged; replace if corroded or broken.

This rubber grommet provides a protective seal where hoses, wires or components pass through openings, helping prevent chafing and moisture intrusion. Use it to restore a tight fit and reduce wear at the penetration point. What it does:

• Seals and cushions openings to help prevent water leaks and air gaps.
• Protects wiring and hoses from rubbing on sharp metal edges that can cause wear or shorts.
• Reduces vibration and rattling by holding parts securely in place.
• Common symptoms of failure: visible cracking, missing or torn grommet, water dripping near the opening, or rubbing noises.

• Disconnect power to the appliance and turn off water supply before beginning any repair.
• Remove the access panel or boot as needed to reach the opening; press the grommet into the hole until fully seated.
• Inspect surrounding seals, hoses and wiring; replace any damaged components to prevent repeat issues.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

This diverter assembly kit controls the dishwasher's wash-water routing. It switches flow between spray arms for targeted cleaning. Replacing a failed diverter restores proper water distribution and helps recover normal wash performance.

• Directs wash water between lower and upper/middle spray arms as the cycle advances
• Works with the control to provide zone/alternating spray for efficient cleaning
• Failure can cause poor cleaning on one rack or water spraying from only one arm
• May produce repeated clicking/grinding from the sump area or extended cycles while indexing

• Disconnect power and shut off water supply before servicing; expect some residual water
• Access the diverter at the sump/pump area; follow your model's service procedures
• Ensure seals/O-rings are properly seated and parts are aligned before tightening
• Run a short test cycle to check for leaks and confirm both racks receive spray

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
