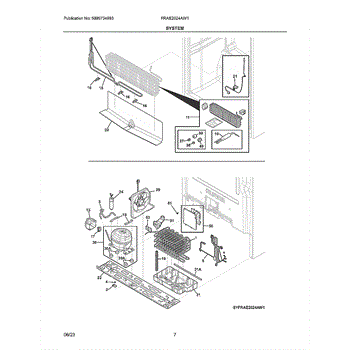

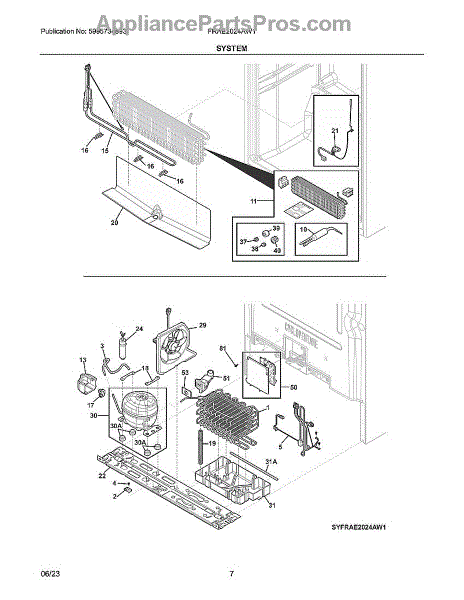

Parts for Frigidaire FRAE2024AW1: System Parts

This evaporator drain tube channels defrost and condensation water from the freezer/refrigerator evaporator to the drain pan, helping prevent water buildup and pooling inside the cabinet. What it does

• Guides defrost and condensation water out of the evaporator area to the drain pan.
• Helps prevent water pooling under shelves or in the fresh-food compartment.
• Commonly replaced when cracked, clogged, or detached causes leaks or excess moisture.
• Works with the evaporator, drain funnel, and drain pan as part of the cabinet drainage system.

• One evaporator drain tube.

• Disconnect power before servicing to avoid electrical shock.
• Inspect surrounding drain funnel and pan for clogs or damage and clear debris before installing.
• Ensure tube is seated and routed per service manual to maintain proper drain flow and avoid kinks.

This filter-drier removes moisture and contaminants from a refrigerator's sealed refrigerant circuit to help protect the compressor and improve cooling reliability. It's a service replacement for sealed-system repairs. What it does:

• Traps moisture and acid from refrigerant to reduce corrosion and oil breakdown.
• Captures particulate debris that can clog expansion devices and reduce cooling.
• Helps restore proper refrigerant flow after a compressor or tubing repair.
• Common symptom: system not cooling efficiently or refrigerant circuit contaminated after failures.

• One filter-drier (quantity: 1)

• Intended for certified HVAC/refrigeration technicians only; sealed-system service requires proper tools and refrigerant handling.
• Replace only when the system is opened for repair (compressor, tubing, or evaporator replacement).
• Must be brazed into the liquid line, evacuated, and charged per manufacturer refrigerant and service specs.
• Dispose of and handle used refrigerant and components according to local regulations.

This factory heater restores controlled heat in the appliance's heating or defrost circuit so cycles complete correctly and performance returns to normal. Replacing a failed heater helps resolve temperature-related issues and reduces extended run times. What it does:

• Generates heat for the unit's designed function (wash/dry assist or defrost), depending on model
• A failed element can cause no heat, extended cycles, or temperature-related error codes
• Result in dishes staying wet or detergent not dissolving (dishwashers)
• Lead to frost/ice accumulation that doesn't melt during defrost (refrigeration)
• Often tests open (no continuity) when defective

• 1 heater

• Disconnect power before servicing; turn off water supply if applicable
• Access and mounting vary by model—refer to the product's service information
• Note wire positions; make firm, original-style connections and avoid stressing terminals
• After reassembly, run a test and check for leaks where the heater passes through the tub (if applicable)

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Harness Assembly is an OEM part for Frigidaire freezers. It is a bundle of color-coded wires that connect electronic and mechanical components inside the freezer, allowing them to communicate and function as intended. The harness assembly reliably transmits signals from the control board to things like fans, temperature sensors, and door alarms.

Symptoms of a bad harness assembly include:

• Components not receiving power or control signals
• Intermittent operation of internal lights or fans
• Temperature control or cooling issues
• Buzzing or humming noises from loose wires
• Error codes related to communicating with modules

Causes of a bad dispenser can include damage over time from repeated bending and flexing of wires, rodent chewing, or corroded connections.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This evaporator fan assembly circulates cold air across the evaporator coil to maintain even refrigerator temperatures and proper cooling performance. Replaces a failed or noisy fan to restore airflow and reduce frost buildup. What it does:

• Spins to move cold air from the evaporator into the fridge and freezer compartments
• Helps maintain consistent internal temperatures for food preservation
• Worn bearings or a damaged blade can cause noise, rattling, or reduced airflow
• Restores airflow when a broken or seized fan prevents proper cooling

• One complete evaporator fan assembly (motor with blade and mounting as shown)

• Disconnect power before servicing to avoid electrical shock
• Access typically requires opening the evaporator cover—handle evaporator fins and wiring carefully
• Verify correct orientation and secure mounting to prevent noise and motor strain
• Allow the evaporator to thaw and dry before reinstalling

This compressor kit replaces a failed refrigerator compressor and the small electrical parts needed to restore the cooling system. It provides a ready set of components to help the appliance pump refrigerant and maintain proper temperatures. What it does:

• Replaces the refrigerator compressor motor that circulates refrigerant through the cooling loop
• Includes the basic electrical start/run parts needed to help the compressor restart and run reliably
• Commonly used when the appliance fails to cool or the compressor hums but doesn't start
• Helps address symptoms like warm temperatures in the fridge/freezer and a non-cycling compressor

• One compressor and accompanying electrical components as shipped

• Installation requires handling refrigerant lines and should be performed per local refrigerant and safety regulations
• Power to the appliance must be disconnected before starting work
• Replace any refrigerant and service fittings per OEM instructions; use correct refrigerant and oil specified by manufacturer
• Verify electrical connections and test for leaks after installation

This main control board is the oven/range electronic control that manages cooking functions, timing and user interface. Replacing a faulty board restores responsive controls and reliable operation for affected functions. What it does:

• Controls oven and cooktop functions, timers, and cycle sequencing
• Manages the user interface and display signals
• Can resolve unresponsive or intermittently working controls
• Stop error-code symptoms tied to a failed electronic control

• Disconnect power to the appliance before starting work to avoid shock or damage
• Handle the board by edges and avoid static discharge; use ESD precautions
• Follow factory wiring diagrams and mounting locations exactly

This cover drain jumper is a molded drain-channel cover that helps route defrost and condensate water into the refrigerator drain system, preventing water from pooling inside the cabinet and reducing ice buildup. What it does:

• Guides defrost and condensate water into the drain channel so it flows to the drain pan
• Helps prevent water from pooling at the back or bottom of the fresh-food compartment
• Reduces the chance of ice forming around the evaporator or in the drain path
• Fits into the drain housing to maintain proper condensate flow

• Disconnect power to the appliance before beginning any service.
• Remove shelves/panels that obstruct access to the drain area; handle plastic parts gently to avoid breakage.
• Make sure the drain channel is clear of debris and ice before installing the cover for best results.

The Capacitor is an OEM part for Frigidaire refrigerators. It is part of the refrigerator's electrical system, responsible for providing a boost of power to start the compressor.

A bad capacitor can be caused by electrical issues, component failure, or damage. When the capacitor becomes faulty, it can result in issues such as the compressor not starting, inadequate cooling, or the refrigerator not running at all.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• Unusual noises from the compressor
• Compressor turning on and off rapidly
• The refrigerator not running at all

Replace your faulty capacitor with this genuine OEM Frigidaire part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This replacement screw fastens appliance components so panels, brackets, and covers stay securely in place. Replace a missing, stripped, or damaged screw to restore a tight fit and help prevent vibration or noise. What it does:

• Secures panels, brackets, trim, or covers as designed for your model
• Replaces missing, rusted, or stripped hardware
• Helps correct loose or misaligned components
• Reduces vibration and rattling from loose fasteners

• Includes: 1 screw

• Disconnect power before servicing
• Wear gloves and eye protection
• Use the correct driver to avoid stripping the screw head
• Tighten snugly without overtightening; refer to your model's parts diagram for exact location

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
