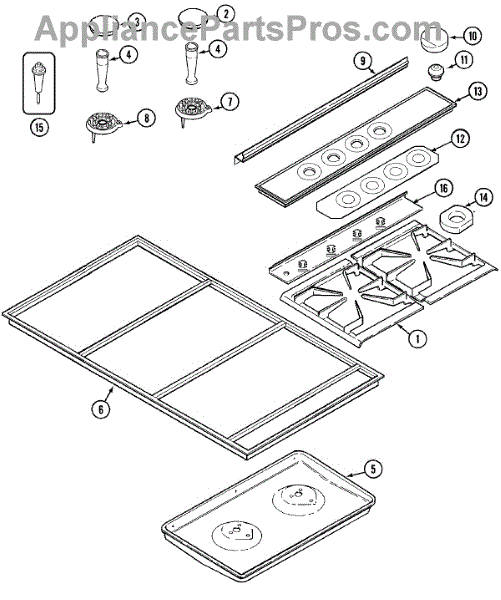

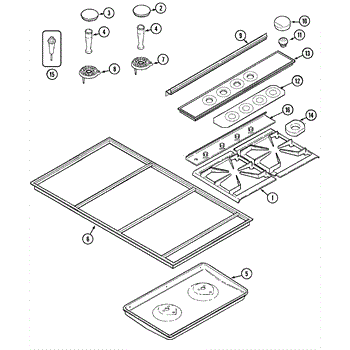

Parts for Jenn-Air CCGX2420W: 02 - Top Assembly Parts

This venturi mixing tube channels and meters incoming air to the gas burner assembly to support proper combustion. Replacing a worn or damaged venturi restores consistent air/gas mixing for safer, more reliable burner performance. What it does

• Directs and mixes incoming air with gas for stable burner combustion
• Restores proper burner operation when airflow is restricted or misdirected
• Can correct weak, uneven, or inconsistent burner flames linked to venturi damage
• Helps eliminate issues caused by cracked, clogged, or misshapen venturi passages

• Shut off electrical power and gas supply before beginning any service
• Inspect adjoining seals, gaskets, and mounting points; replace any damaged hardware
• After installation, check burner operation and test for gas leaks using a safe, approved method

This light lens is the clear plastic cover that fits over an appliance interior light to protect the bulb and help diffuse illumination for better visibility. It restores a finished appearance and keeps the lamp shielded from food and debris. What it does:

• Protects the interior light bulb from spills, splatter and physical damage
• Diffuses and directs light for more even interior illumination
• Prevents direct contact with the hot bulb for improved safety
• Helps maintain a clean, finished look inside the appliance
• Common symptom: cracked, cloudy or missing lens causing glare, visible bulb or reduced protection

• One clear plastic light lens

• Disconnect power or unplug the appliance before replacing any light parts
• Handle the lens carefully to avoid scratches or cracking during install
• Typically snaps into place or secures with small screws—retain original fasteners
• Use correct replacement bulb and ensure the lens is seated fully before restoring power

This oven igniter is the glow-bar that lights the gas for the bake or broil burner. Replacing a weak or failed igniter restores dependable ignition and consistent oven heat, solving no-heat and long preheat complaints.

• Heats to ignite the gas burner in the oven cavity
• Draws the proper current to open the oven safety valve
• Common symptoms: oven won't heat, igniter glows but no flame, delayed or intermittent ignition, extended preheat times
• Restores reliable burner lighting for baking or broiling

• Disconnect power and shut off gas supply before servicing; allow the oven to cool
• Handle the igniter by the insulated base; avoid touching the fragile element
• Mount using the correct bracket and position the tip near the burner, as on the original
• Restore power and gas, then test for prompt, steady ignition
