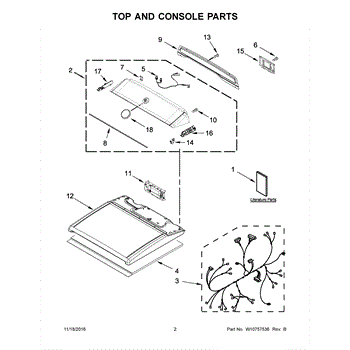

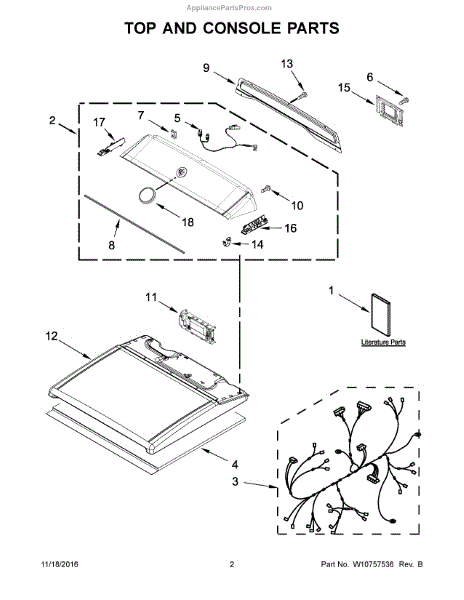

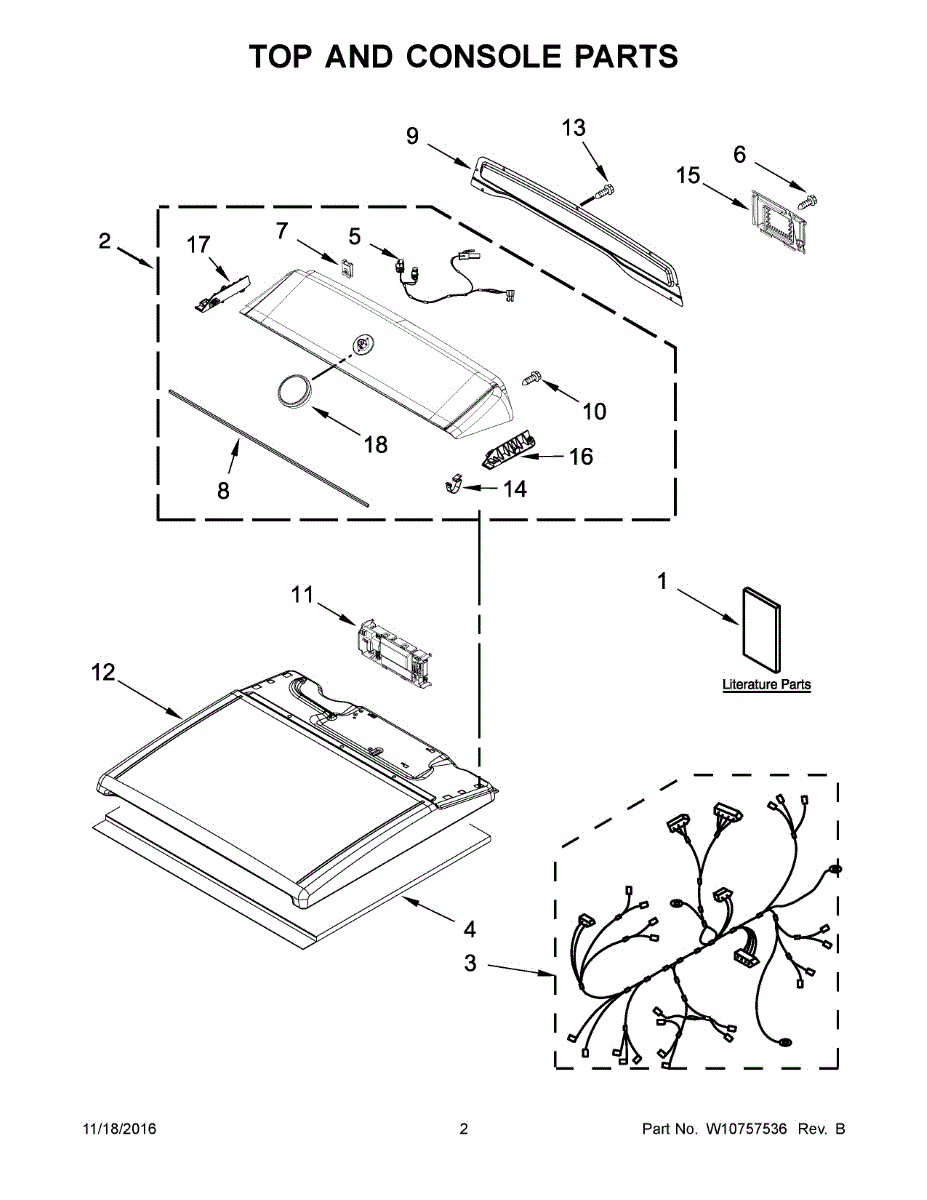

Parts for Kenmore 110.C69133410 (110C69133410, 110 C69133410): Top And Console Parts

This replacement wire harness connects electrical components to restore reliable power and signal paths in select Whirlpool appliances. Use it to replace a damaged or worn harness that causes intermittent operation or loss of function. What it does:

• Routes power and signal connections between appliance controls and components
• Replaces frayed, melted, or broken wiring that can cause intermittent operation
• Helps resolve symptoms such as no power to a circuit, intermittent operation, or control errors
• Ensures proper connector fit to maintain electrical continuity

• Disconnect power (unplug appliance or turn off circuit breaker) before starting any repair
• Verify connector orientation and routing against the service diagram before removing the old harness
• Secure harness away from pinch points and moving parts; avoid contact with sharp edges or heat sources

10 - 16 x 1/2

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

This electronic control board governs the appliance's user interface and cycle functions, restoring normal operation when the original control fails. It replaces a faulty main control to help resolve control- and display-related issues. What it does:

• Manages electronic logic for cycles, timing, and user commands
• Powers and communicates with the display/touchpad and sensors
• Helps stop intermittent operation, random resets, or no-display symptoms

• One electronic control board assembly

• Always disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid touching components or contacts
• Transfer any needed mounting brackets, wiring harnesses, or labels from the old board if required

The Top is an OEM replacement part for Whirlpool dryers. It serves as the protective cover for the top of the dryer, keeping dust and debris out while providing a finished look. It is designed to withstand the demands of daily use and provides a sturdy surface for placing items on top of the dryer.

A bad dryer top panel can occur due to physical damage, wear and tear, or improper installation. If you notice symptoms such as a cracked or broken panel, misalignment, or an unattractive appearance, it may be time to replace the top panel.

Symptoms of a bad dryer top panel include:

• Cracked or broken panel
• Misalignment or uneven surface
• Unattractive or worn-out appearance

Restore your dryer by replacing the faulty or damaged top panel with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This top panel replaces the appliance's cabinet top to restore a flush, secure surface and protect internal components. It's a direct-fit exterior panel used when the existing top is dented, bent, or damaged. What it does:

• Covers and protects the washer/dryer cabinet and internal components from debris and spills
• Provides the mounting surface for controls, console, and trim
• Restores a straight, even appearance when the original top is warped or dented
• Helps maintain proper alignment of adjoining panels and doors

• 1 top panel

• Unplug the appliance or disconnect power before starting work
• Keep fasteners organized and hand-tighten before final torque to ensure proper fit

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

This mounting bracket secures and supports appliance components to keep panels and internal parts aligned for reliable operation. It prevents shifting and reduces noise caused by loose or damaged supports. What it does:

• Secures panels or assemblies to the appliance frame to maintain alignment
• Prevents movement that can cause rattling, vibration, or uneven operation
• Replaces cracked, bent, or worn brackets that fail to hold components firmly
• Restores proper fit where mounting points were compromised

• One mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Use the original fasteners when possible; replace damaged hardware as needed
• Tighten to a snug fit—do not overtighten and strip mounting holes

This mounting bracket secures and supports appliance components to keep panels and internal parts aligned for reliable operation. It prevents shifting and reduces noise caused by loose or damaged supports. What it does:

• Secures panels or assemblies to the appliance frame to maintain alignment
• Prevents movement that can cause rattling, vibration, or uneven operation
• Replaces cracked, bent, or worn brackets that fail to hold components firmly
• Restores proper fit where mounting points were compromised

• One mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Use the original fasteners when possible; replace damaged hardware as needed
• Tighten to a snug fit—do not overtighten and strip mounting holes
