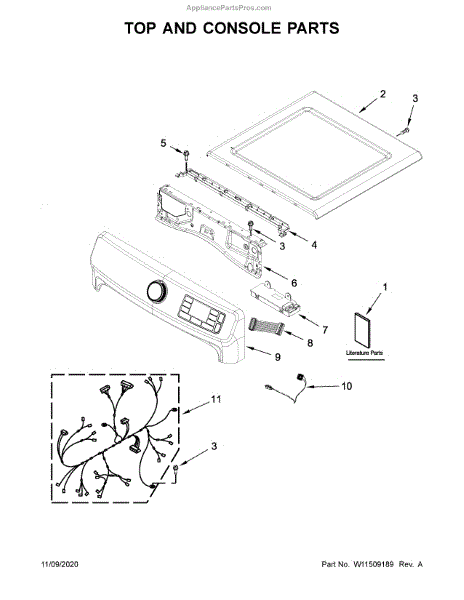

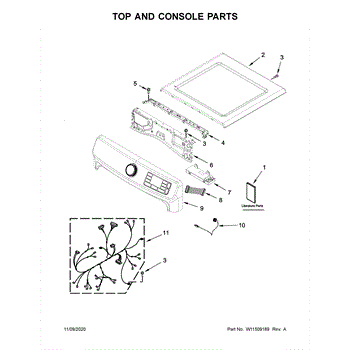

Parts for Maytag MED8630HC2: Top And Console Parts

This is the appliance's cabinet top panel in a chrome finish. It replaces a dented, bent, or rusted top to restore a clean appearance and a secure fit while protecting internal components and supporting mounted parts.

• Forms the finished top surface of the cabinet (chrome finish)
• Shields internal components from debris and accidental contact
• Provides mounting/support points for the console, hinges, or brackets (varies by model)
• Addresses damage, corrosion, looseness, or rattling from a bent or missing top

• Disconnect power before servicing; wear cut-resistant gloves (sheet-metal edges are sharp)
• Retain and reuse the original screws/clips; transfer any brackets from the old panel
• Fasteners are typically at the rear or beneath the console—support the panel, remove screws, then lift off
• Align the new panel and tighten fasteners evenly to ensure a secure, rattle-free fit

This top panel is the upper cover of your dryer's cabinet. Replace a dented, rusted, or warped panel to restore a secure, flush fit and the clean, finished look of your machine.

• Forms the dryer's upper cabinet surface and covers internal components
• Provides proper mounting/alignment for the control console and top hardware
• Helps maintain cabinet rigidity and a solid, secure fit
• Common signs it's needed: visible dents/bends or rust, top won't sit flush or stay secured, gaps or misalignment near the console

• Disconnect power; shut off gas supply for gas models
• Wear cut-resistant gloves—cabinet edges can be sharp
• Remove fasteners securing the top, lift off, and transfer any clips/insulation from the original panel
• Align the new panel and tighten fasteners evenly to ensure a flush, secure fit

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This bracket is a small mounting support that secures appliance panels or components in place to restore stable alignment and reduce rattling. It's a direct-fit replacement that helps keep parts properly positioned for reliable operation. What it does:

• Provides a secure mounting point for a panel or internal component to prevent shifting or vibration
• Restores correct alignment for doors, panels, or assemblies that have become loose
• Helps eliminate rattling, buzzing, or scraping noises caused by a loose support
• Maintains proper spacing so attached components operate smoothly

• Verify appliance is unplugged or power is disconnected before starting work
• Inspect mounting area and fasteners; replace any damaged screws or clips as needed
• Use basic hand tools to remove and reinstall the bracket; avoid overtightening

The Control Board is an OEM part for Whirlpool laundry center units. As the central processing component, it coordinates all functionality across the washer and dryer simultaneously. The precise circuitry allows for customized paired cycles that wash and dry loads efficiently based on user settings.

Symptoms of a bad control board typically include the inability to operate either appliance individually or synchronize them together as intended. Components may run incorrectly or in an unbalanced state. Water levels, temperatures, speeds, and timed durations could all be disrupted.

Symptoms of a bad control board include:

• Washer and dryer failing to start or end together
• Display/selections malfunctioning
• Paired cycles unable to be completed properly
• Fault codes appearing

This OEM replacement is also compatible with stackable units from Whirlpool brands like Maytag, KitchenAid, Jenn-Air, Amana, and some Kenmore models.

This console housing replaces a damaged or worn control panel housing to restore the appliance's front control area and support the control components. It provides a clean, stable mounting surface for switches, knobs, and the display. What it does:

• Replaces cracked, broken, or warped console housing that affects the control area appearance
• Supports and secures the control board, switches, and user interface components
• Helps stop loose or vibrating controls and restores proper fit and alignment
• Can prevent debris from entering the control area and protect internal components

• Disconnect power to the appliance before starting any repair
• Removal typically requires unscrewing fasteners and carefully detaching trim; keep track of hardware
• Handle the new console carefully to avoid scratching the finish or damaging mounting tabs

This wire harness is the electrical connector assembly that links appliance components, restoring proper power and signal paths for reliable operation. It replaces a damaged or worn harness to help stop intermittent power issues and component failures. What it does:

• Routes power and control signals between the appliance control board and components
• Replaces frayed, corroded, or broken wires that cause intermittent or total failures
• Helps resolve symptoms like no power to a component, error codes, or unpredictable behavior
• Provides factory-style connectors and wiring layout for a direct replacement

• One complete wire harness assembly as shown

• Disconnect power before starting; follow all safety precautions
• Inspect connector pins and mating sockets for damage or corrosion before installation
• Match the harness routing and connector locations to the existing harness for correct fit
