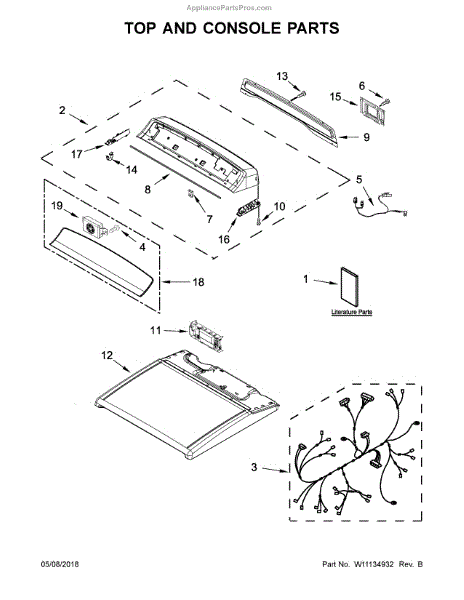

Parts for Whirlpool WED8500DC4: Top And Console Parts

The Console is an OEM part for Whirlpool electric dryers. This console houses the dryer control panel, buttons, toggle switches and electronic display.

Causes of a bad console could include physical damage from impact or repeated opening and closing of the dryer door. Over time, constant exposure to heat and vibration can also degrade sensitive electronic components inside.

Symptoms of a faulty console are:

• Non-responsive or uncalibrated control buttons
• Flickering or blank control display
• Inability to select cycles or temperature settings
• Loose fitting or opening console panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory-specified screw secures panels, brackets, and internal components in your appliance. Replacing worn or missing hardware restores a tight fit to help reduce vibration, noise, and premature wear.

• Fastens sheet metal, brackets, or plastic parts as designed by the manufacturer
• Helps maintain alignment and reduce vibration/rattling
• Direct replacement for stripped, corroded, or missing screws
• Common signs: loose panels or trim, shifting components, screw won't tighten

• Disconnect power; shut off water or gas supply if applicable
• Use the correct driver to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening
• Replace one-for-one in the original location per service information

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The control board is an OEM part for Whirlpool clothes dryers. As the central processing hub, it directs cycles by broadcasting commands to individual mechanical and electronic components.

Causes of a bad control board include moisture corroding connections, as well as power fluctuations over time corrupting retention in the memory banks. Breakdowns disrupt routines.

Symptoms include:

• Fault codes indicating board errors stalling the process
• Inoperable settings like specific cycles or adjustable options
• Full mechanical functions ceasing to respond appropriately

This OEM Whirlpool part is also compatible with some Maytag, KitchenAid and Amana dryers.

The Top is an OEM replacement part for Whirlpool dryers. It serves as the protective cover for the top of the dryer, keeping dust and debris out while providing a finished look. It is designed to withstand the demands of daily use and provides a sturdy surface for placing items on top of the dryer.

A bad dryer top panel can occur due to physical damage, wear and tear, or improper installation. If you notice symptoms such as a cracked or broken panel, misalignment, or an unattractive appearance, it may be time to replace the top panel.

Symptoms of a bad dryer top panel include:

• Cracked or broken panel
• Misalignment or uneven surface
• Unattractive or worn-out appearance

Restore your dryer by replacing the faulty or damaged top panel with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This top panel replaces the appliance's cabinet top to restore a flush, secure surface and protect internal components. It's a direct-fit exterior panel used when the existing top is dented, bent, or damaged. What it does:

• Covers and protects the washer/dryer cabinet and internal components from debris and spills
• Provides the mounting surface for controls, console, and trim
• Restores a straight, even appearance when the original top is warped or dented
• Helps maintain proper alignment of adjoining panels and doors

• 1 top panel

• Unplug the appliance or disconnect power before starting work
• Keep fasteners organized and hand-tighten before final torque to ensure proper fit

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block cover protects the dryer/range terminal block and wiring by keeping connections enclosed and reducing risk of accidental contact or debris intrusion. It restores a finished, safe rear electrical access area. What it does:

• Covers and shields the appliance's electrical terminal block to help prevent accidental contact with live wires
• Helps keep dust, lint and small debris out of the terminal area
• Provides a mounting surface for the terminal block screw or clamp where applicable
• Common service symptom: missing, cracked or damaged cover exposes wiring or looks broken at the rear access

• One terminal block cover

• Disconnect all power at the breaker or unplug the appliance before servicing
• Intended to mount over the terminal block; secure with the factory screw(s) or fastener(s)
• Inspect wiring and terminal connections while the cover is off; replace frayed or damaged wires before reinstalling

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The User Control and Display Board is an OEM part for Whirlpool dryers. It is the visible interface containing all buttons, dials, and displays that allow the user to operate the dryer.

Causes can include normal wear and tear over years of exposure to moisture, heat cycling, and repetitive use. Accidental damage is also possible.

Symptoms of a bad User Control and Display Board include:

• Stuck, cracked, or unresponsive buttons
• Faded or missing labels on controls
• A non-functional or flickering display
• Inability to scroll through options or make selections

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
