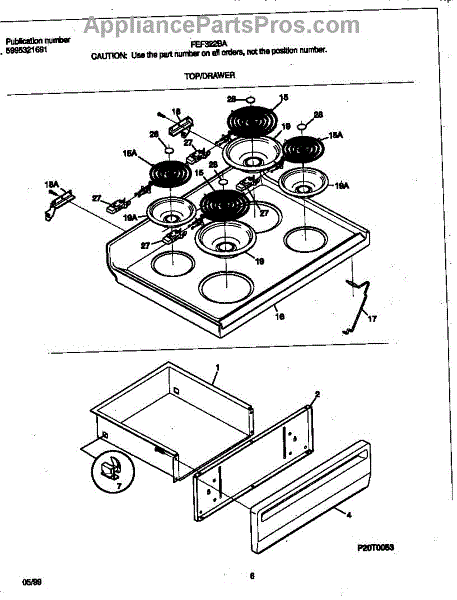

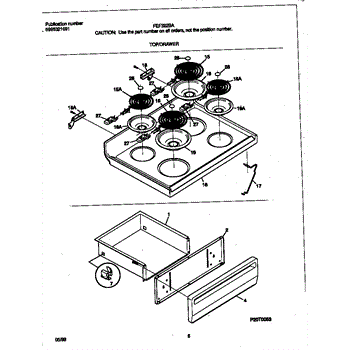

Parts for Frigidaire FEF322BAWM: 04 - Top / Drawer Parts

The Rear Drawer Glide is an OEM part for Frigidaire ovens and ranges. It is designed to provide smooth movement for the oven's rear drawer. The rear drawer glide allows the drawer to slide in and out with ease, providing convenient access to storage space or broiler pans. This is the glide that attaches to the rear of the oven drawer. For front glide that attaches to the body use 3051162. Two front and two rear are used for each stove. One for each corner.

Causes of a bad rear drawer glide can include normal wear and tear over time or accidental damage. When the glide becomes defective, it can lead to difficulties in smoothly opening or closing the drawer.

Symptoms of a bad rear drawer glide include:

• Difficulty in sliding the drawer in or out.
• Uneven movements or sticking of the drawer.
• Excessive noise or scraping sounds when operating the drawer.
• The drawer not staying securely closed or aligned.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

This main top is the flat cooktop surface that mounts over a range's burner box to provide a stable, finished cooking surface and protect internal components from spills and debris. It restores a level, secure area for burners and cookware. What it does:

• Covers and protects the range's internal burner box and wiring from spills and food debris
• Provides a stable, level surface for burner grates and cookware
• Helps maintain proper airflow and fit for burner components
• Replaces warped, dented, or corroded tops that can interfere with burner alignment or cookware stability

• Disconnect power to the appliance before beginning any service
• Remove burner grates, knobs and other removable components to access mounting screws
• Handle carefully to avoid sharp edges; lift and set into place, aligning mounting holes before fastening

Main top support rod.

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

This small replacement clip secures a cooktop surface (coil) element to the range, keeping the element seated and stable for consistent contact and safe operation. Designed to match the original mounting hardware. What it does:

• Holds the surface heating element in its correct position under the cooktop
• Prevents the element from wobbling, shifting, or disconnecting from its terminal
• Helps maintain reliable electrical contact for consistent heating
• Resolves symptoms like a loose or unseated surface element or an element that won't stay in place

• Disconnect power to the range at the breaker before any service
• Handle the heating element and terminals carefully to avoid damage
• Installation typically requires lifting or removing the coil and securing the clip into the element housing—refer to your model's service instructions

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.
