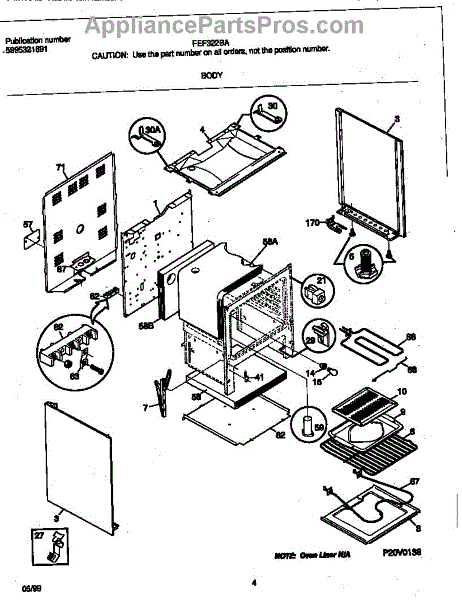

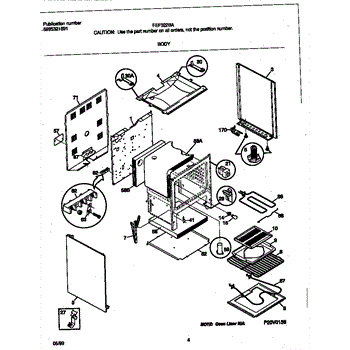

Parts for Frigidaire FEF322BAWM: 03 - Body Parts

Plastic leveling leg.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This body-side spacer installs on the cabinet side of the door or lid hardware. It sets the correct stand-off and alignment so the handle or latch feels solid and sits flush for a clean, secure fit. What it does:

• Positions and supports door/lid hardware on the cabinet/body side
• Maintains proper spacing to help prevent rubbing or scuffing of the panel
• Helps keep the handle or latch tight and aligned
• Common symptoms: loose or wobbly handle/latch, uneven alignment, visible gap or scuff marks at the mounting point

• Includes 1 body-side spacer

• Disconnect power to the appliance before servicing
• Support the handle/latch, remove the cabinet-side mounting screws, place the spacer, realign hardware, and reinstall screws snugly
• Reuse the original fasteners; avoid overtightening to prevent cracking the spacer or stripping threads
• Check door operation and alignment before finishing

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

The Front Drawer Glide is an OEM replacement part for Frigidaire ranges and ovens. It facilitates the smooth opening and closing of the storage drawer typically located at the bottom of the range.

Symptoms of a faulty Front Drawer Glide include:

• Difficulty in opening or closing the drawer smoothly
• The drawer becoming stuck or jammed in its track
• Excessive noise or grinding sounds when operating the drawer
• Visible signs of wear, damage, or misalignment in the glide mechanism

Causes of needing to replace the front drawer glide can include normal wear and tear over time, physical impact or mishandling, or exposure to excessive heat or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and oven models.

This oven insulation surrounds the oven cavity to retain heat and protect nearby components and cabinetry. Replacing a burnt or deteriorated insulation blanket restores temperature stability and helps keep exterior surfaces cooler on your range during cooking.

• Minimizes heat loss for more consistent baking temperatures
• Shields wiring, controls, and adjacent cabinets from excessive heat
• Damaged insulation can cause long preheat times or trouble maintaining set temperature
• Exterior panels or control area may feel unusually hot, or a burnt odor may persist after spills

• Disconnect power at the breaker; shut off gas
• Allow the appliance to cool completely before service
• Access typically requires pulling the range and removing outer panels; note original routing and retainers for reassembly
• Handle insulation carefully; wear gloves, eye protection, and a dust mask to avoid irritation from fibers

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This broil element mounts at the top of the oven cavity and delivers radiant heat for broiling and top-browning. Replace a broken or burned-out element to restore consistent broil performance.

• Emits high, radiant heat from the top of the oven during the broil cycle
• Used to sear and top-brown foods
• Replaces the original broil element on compatible units
• Common symptoms: No heat in broil, element won't glow, uneven top browning, visible cracks/blistering on the element

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; support the element while removing mounting screws
• Carefully pull the element forward and disconnect the wire terminals; avoid bending the element
• Attach the new element, secure with screws, ensure it is clear of the oven liner, then restore power and test

The Bake Element is an OEM replacement part for Frigidaire ovens that provides the heat necessary for baking. Located at the bottom of the oven, the bake element heats up when electrical current flows through it, converting electricity into heat. This heat is then distributed throughout the oven cavity to cook or bake the food evenly.  Measures approximately 19 ¼ inches x 17 ¾ inches

Causes of a bad bake element can include visible damage such as blistering, cracking, or splitting of the element itself. Over time, exposure to high temperatures can lead to material fatigue and eventual failure. Electrical issues, such as a short circuit or a power surge, can also damage the element, preventing it from heating properly.

Symptoms of a bad Bake Element include:

• Oven not heating to the set temperature
• Uneven cooking or baking results
• Visible damage to the element

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Support for broil heating element.

The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Size: 8-18ab x 0.5 inch.

This small push-in plug button caps the opening in an oven bottom to keep the cavity clean and finished-looking. It prevents food and debris from falling into the oven base and restores a secure, even interior surface. What it does:

• Covers and seals the hole in the oven bottom to prevent debris buildup
• Helps maintain a finished appearance and reduces hotspots around openings
• Stops loose items from dropping into the oven base and interfering with components
• Simple, low-profile cap designed for a snug, friction-fit installation

• Turn the oven off and allow it to cool completely before installing
• Press the plug button firmly into the opening until it seats flush
• Use a non-marring tool if needed to avoid scratching the oven surface
• Replace with the correct OEM part if the plug does not fit securely or is damaged

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
