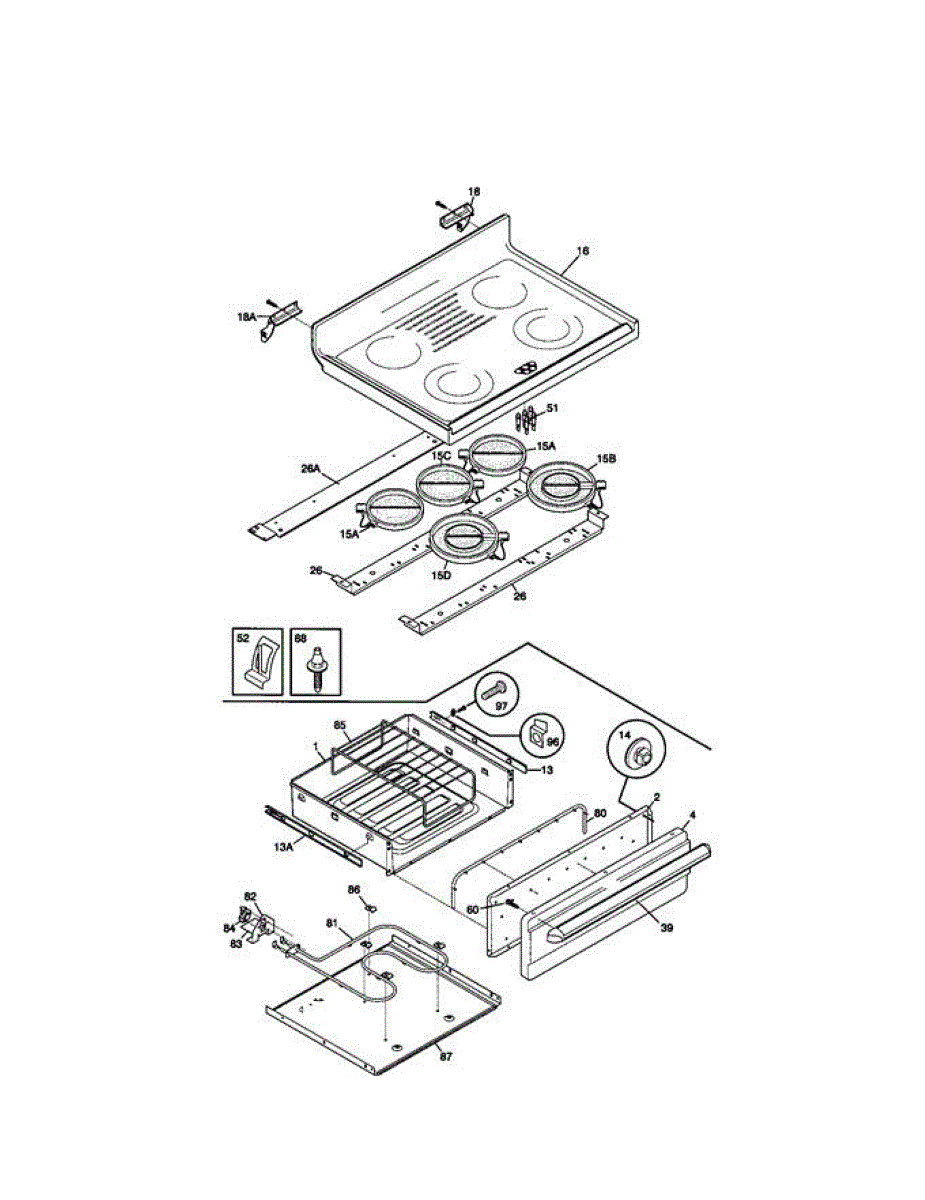

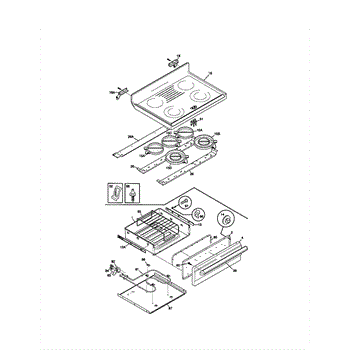

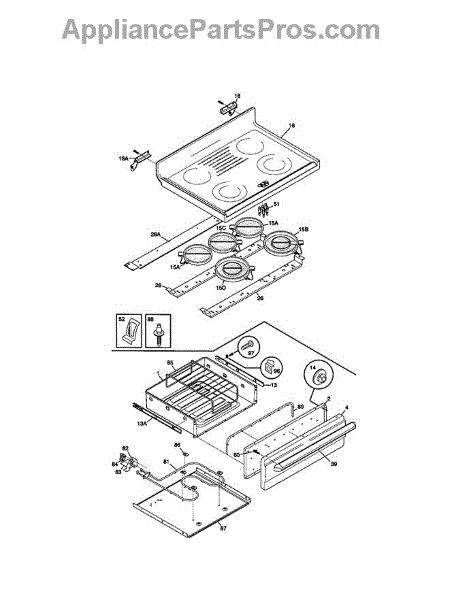

Parts for Frigidaire FEF389WJCB: Top / Drawer Parts

This glide is a low-friction slide used in select cooking appliances to support and guide a moving component, such as a lower drawer. Replacing a worn or broken glide restores smooth travel and proper alignment without sticking or scraping.

• Provides a smooth sliding surface for the mating part
• Helps keep the component aligned as it opens and closes
• Reduces friction and wear during movement
• Failure symptoms include sticking, scraping noises, uneven travel, or the component coming off track

• Disconnect power and allow the appliance to cool before servicing
• Remove the sliding component (e.g., drawer) to access the glide
• Remove the damaged glide and install the new one, transferring any screws or clips as needed
• Reinstall and test to ensure smooth, even movement

This glide is the low-friction slide piece used in select Frigidaire ranges and wall ovens to support a moving component. Replacing a worn glide restores smooth in-and-out movement, reduces binding, and helps prevent premature wear on mating rails. What it does:

• Provides a smooth, low-friction surface for a sliding drawer or rack
• Helps keep the component aligned on its track to avoid binding
• Reduces sticking and scraping noises during operation
• Common symptoms: hard-to-open/close movement, uneven travel, wobbling, or a visibly cracked/missing glide

• One glide

• Disconnect power and allow the appliance to cool before servicing
• Remove the drawer or rack to access the glide location
• Release screws or tabs securing the old glide; transfer any reusable hardware
• Install the new glide, and test for smooth travel

This small push-in plug button caps the opening in an oven bottom to keep the cavity clean and finished-looking. It prevents food and debris from falling into the oven base and restores a secure, even interior surface. What it does:

• Covers and seals the hole in the oven bottom to prevent debris buildup
• Helps maintain a finished appearance and reduces hotspots around openings
• Stops loose items from dropping into the oven base and interfering with components
• Simple, low-profile cap designed for a snug, friction-fit installation

• Turn the oven off and allow it to cool completely before installing
• Press the plug button firmly into the opening until it seats flush
• Use a non-marring tool if needed to avoid scratching the oven surface
• Replace with the correct OEM part if the plug does not fit securely or is damaged

This dual surface element restores steady, selectable heat to a cooking zone on your electric range or cooktop. It provides two heating areas in one burner position so you can match heat output to small or larger cookware.

• Heats cookware by energizing the inner ring alone or both inner and outer rings together
• Helps resolve issues such as a surface burner not heating, only one ring heating, or intermittent/uneven heat
• Replaces a cracked, blistered, or visibly damaged element to restore reliable performance

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element from beneath the cooktop; photograph wire locations for reference
• Carefully transfer any brackets, clips, or attached limiter from the original element if required
• Avoid touching the element surface; secure all connections and test both inner and dual settings after reassembly

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This oven rack is a replacement wire shelf that supports cookware and bakeware inside the oven cavity, restoring proper spacing and airflow for even cooking and broiling. Ideal when the original rack is bent, rusted, or missing. What it does:

• Provides a stable surface for pans, baking sheets and cookware
• Restores correct oven spacing for even heat circulation
• Replaces bent, warped or corroded racks that catch or bind
• Enables use of multiple rack positions for different cooking needs

• Allow the oven to cool completely and disconnect power before installing
• Position rack with the rolled edges toward the oven walls and slide into desired rack guides
• Use gloves to avoid sharp edges and protect finishes
• Clean gently with non-abrasive cleaners; do not use oven self-clean while rack is in place unless rack is rated for self-clean cycles
