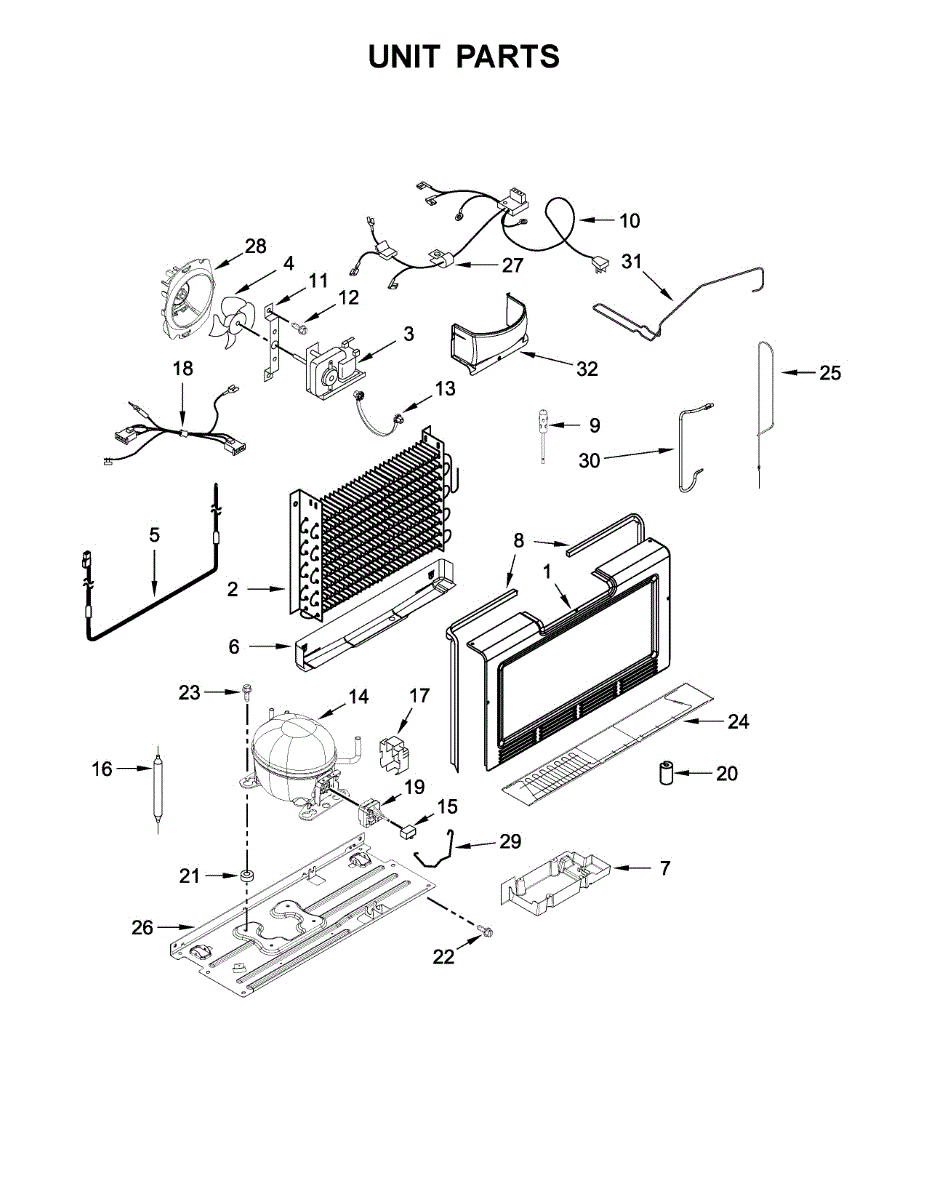

Parts for Amana AZF33X16DW04: Unit Parts

This OEM wiring harness connects the appliance's electrical components to restore reliable power and signal paths. Replaces a damaged or burnt harness to help stop intermittent operation and wiring-related error codes. What it does:

• Carries power and control signals between components to enable normal operation.
• Replaces frayed, melted, or broken wiring that can cause intermittent power or failures.
• Helps resolve symptoms such as no power to modules, lights, or motors and erratic component behavior.
• Restores factory routing and connector fit for reliable connections.

• Always disconnect the appliance from power (unplug or shut off breaker) before servicing.
• Follow the OEM wiring diagram and secure harness routing to avoid pinching or contact with moving parts.
• Match connectors and colors; do not splice unless using proper connectors and techniques.

The Start Device is an OEM part for Whirlpool refrigerators. It is a critical component that helps initiate the compressor, enabling the refrigerator to start the cooling process. This device provides the necessary electrical boost to get the compressor running and then disengages once the compressor is up to speed.

Some common causes of a faulty start device include electrical issues, wear and tear, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling problems in your refrigerator.

Symptoms of a bad start device include:

• Refrigerator not cooling properly
• Clicking noises coming from the refrigerator
• Compressor not running
• Overheating of the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively
