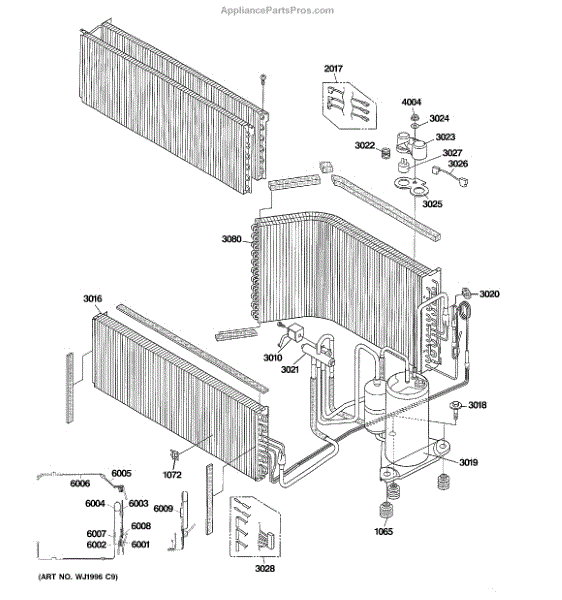

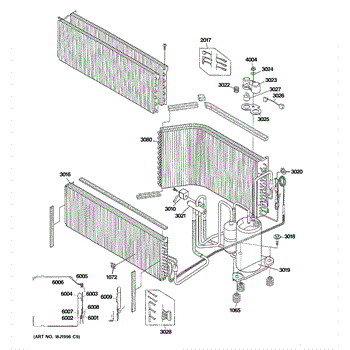

Parts for Ge AZ61H15DABM3: Unit Parts

A rubber compressor cushion that isolates the compressor from the refrigerator chassis to reduce vibration and prevent metal-on-metal contact. Replaces worn or missing cushions to help minimize noise and vibration transfer. What it does:

• Cushions the compressor to dampen vibration and reduce rattling or buzzing noises.
• Keeps the compressor from directly contacting the cabinet, preventing wear and chafing.
• Helps maintain proper compressor positioning and reduces stress on mounting components.
• Common symptom: increased compressor noise or vibration, or visible worn/deteriorated cushion.

• One compressor cushion (rubber mount).

• Disconnect power to the appliance before starting any repair.
• Support the compressor or secure the unit when removing/replacing mounts to avoid strain.
• Remove the old cushion and press the new cushion into place; no refrigerant handling required.
• Use basic hand tools and wear gloves.

This thermistor is the refrigerator temperature sensor that helps the control board monitor and regulate cooling. Replacing a faulty sensor restores accurate temperature readings and consistent cooling performance. What it does:

• Measures internal refrigerator/freezer temperature and sends readings to the control board
• Helps the control board adjust compressor and fan operation for stable temperatures
• Can cause incorrect temperature display or uneven cooling when it fails
• Linked to excessive running, frequent defrost cycles, or poor cooling performance

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring harness carefully; avoid kinking or damaging the lead
• Ensure the connector is fully seated and any mounting clip or bracket is secured
• Some panel removal may be required; follow for access and reassembly

This capillary tube is the refrigerant metering element used in compatible refrigerators and freezers to control refrigerant flow for proper cooling. It helps maintain steady evaporator performance when operating correctly. What it does

• Meter refrigerant from the high-pressure side to the evaporator to regulate cooling
• Helps maintain correct evaporator temperature and steady refrigeration cycle
• Worn, clogged, or damaged capillary tubes can cause reduced cooling, long run times, or inconsistent temperatures
• Small leaks or kinks may cause loss of refrigerant and system performance issues

• One capillary tube

• Refrigeration system service should be performed; system must be recovered and evacuated before replacing
• Avoid kinking or sharply bending the tube during installation; routing affects performance
• Inspect fittings and replace any damaged connectors or seals to ensure a leak-free repair
• Follow all safety and environmental regulations for handling refrigerant and pressurized systems

This capillary tube is the replacement temperature-sensing tube used in refrigeration systems to transmit temperature/pressure changes to the control. It restores proper sensing for consistent cooling performance when the original tube is damaged. What it does

• Transmits temperature/pressure changes from the evaporator area to the thermostat or control device
• Helps the control regulate compressor and evaporator operation for consistent cooling
• Common symptom: inconsistent temperature or cycling, slow cool-down, or erratic thermostat behavior
• Fragile—kinks or breaks can prevent accurate sensing and lead to cooling problems

• One replacement capillary tube

• Disconnect power before servicing; follow device safety instructions
• Handle tube carefully to avoid kinks, sharp bends, or crushing
• Verify correct routing and secure mounting to prevent vibration or contact with hot components

This replacement capillary tape is the insulation/fastening tape used to secure capillary tubing on refrigeration and freezer temperature control assemblies. It helps keep the capillary tube routed and protected for reliable temperature sensing. What it does:

• Secures and insulates capillary tubing so the sensing tube stays in the correct position
• Minimizes heat transfer and vibration that can affect temperature sensing
• Helps prevent kinks, rubbing, or contact with hot/cold surfaces that can cause erratic operation
• Common symptom linkage: used when temperature control is inconsistent, cooling cycles are irregular, or capillary tubing is loose or exposed

• One capillary tape for securing/insulating capillary tubing

• Turn off and unplug the appliance before starting any work
• Handle capillary tubing gently—do not crimp, pinch, or sharply bend the tube
• Re-route and secure the tube following the original path; wrap tape without over-tightening
• If the capillary tube or sensor is damaged, replace the damaged component rather than relying on tape

This lead tube is a direct-replacement service part used where a rigid small-diameter tube is required to route fluid or gas between components. It restores proper routing and connection points for safe, reliable appliance operation. What it does

• Provides a rigid connection path for fluids or gases between appliance components
• Restores proper alignment and sealing where a damaged or corroded tube causes leaks
• Helps stop symptoms such as visible leaks, loss of supply to a component, or poor system performance
• Supports secure attachment at fittings and compression joints when used with compatible hardware

• Replace only with the exact OEM part or an approved equivalent to maintain fit and sealing
• Shut off and isolate power and any fluid or gas supply before starting work
• Inspect fittings and seals; replace any damaged compression ferrules or gaskets as needed
