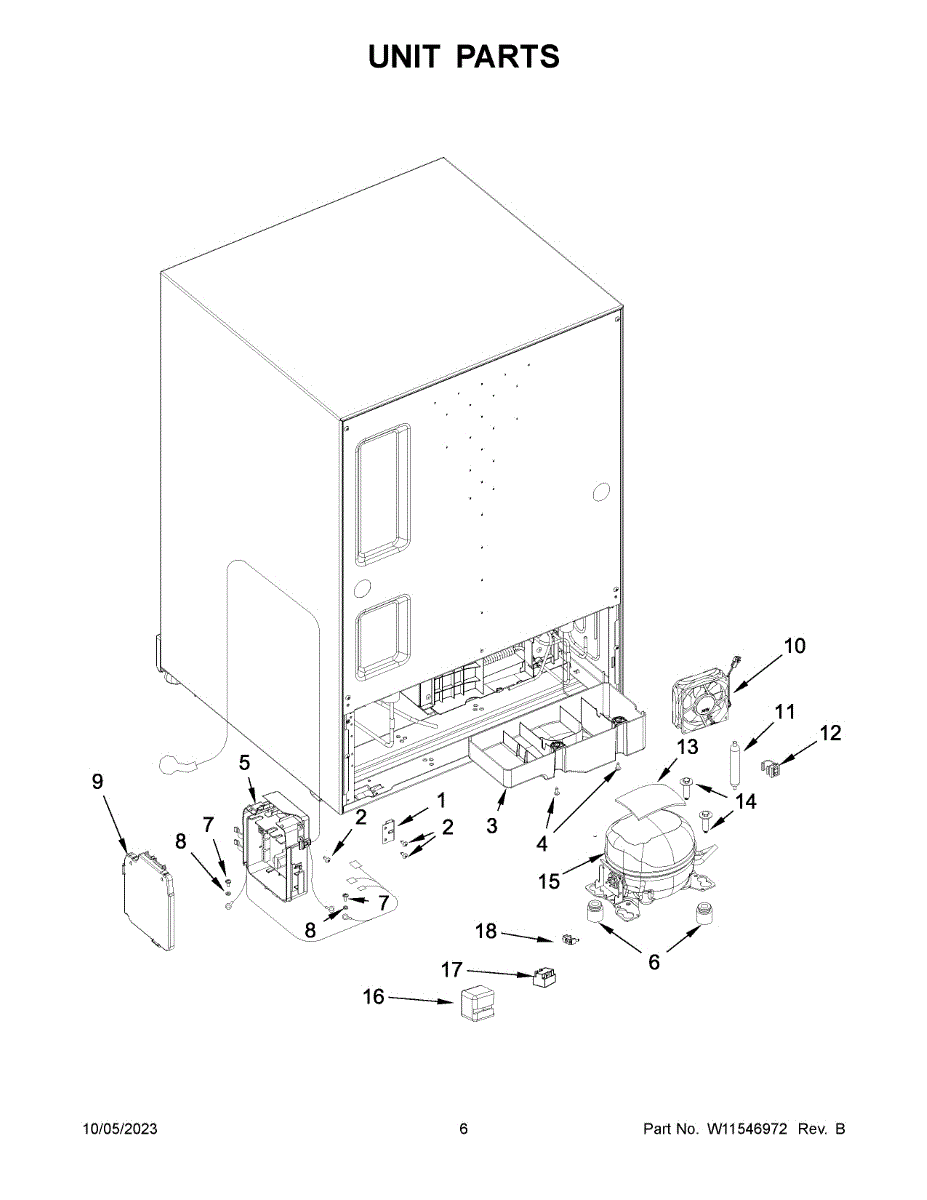

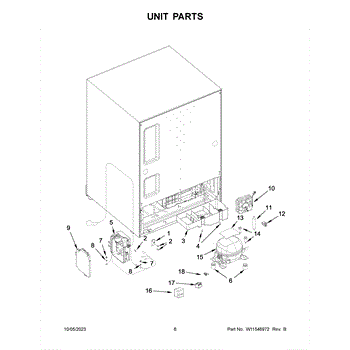

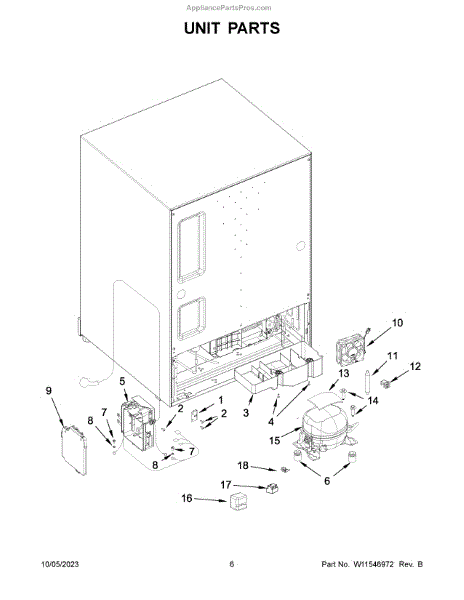

Parts for Kitchenaid KURL114KPA00: Unit Parts

This control box is the appliance's main electrical control module that manages timed operations and electronic functions, helping restore proper cycle control and responsiveness to user commands. What it does:

• Receives and routes power to electronic components and relays for timed cycles
• Controls start/stop, cycle selection and other electronic commands
• Can cause failure to start, unresponsive controls, or erratic cycle behavior when faulty
• Replaces a failed or damaged control module to restore normal electronic operation

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the control module and circuit board by edges; avoid touching contacts
• Reuse mounting hardware only if intact; replace damaged connectors or wiring

This replacement dryer tube channels heated air from the dryer cabinet to the lint filter/blower and exhaust path, restoring proper airflow and helping the cycle dry clothes efficiently. Use it when the original tube is cracked, crushed, or blocked. What it does

• Directs dryer airflow from the drum/blower chamber to the lint trap and exhaust.
• Helps maintain proper venting to prevent overheating and inefficient drying.
• Reduces air leaks that can cause longer dry times or hot spots.
• Minimizes lint buildup in the cabinet by providing a smooth, routed path for debris to the lint filter.

• One dryer tube

• Disconnect power (and gas supply if applicable) before servicing; ensure the dryer is completely powered off.
• Remove front or rear access panel as required to reach and replace the tube; keep fasteners for reassembly.
• Inspect adjacent seals and clamps; replace any damaged gaskets or worn clamps for a secure fit.
• Use gloves to avoid sharp sheet-metal edges and run a short test cycle to ensure proper airflow and quiet operation.

This PTC relay is the start device that helps the refrigerator/freezer compressor get up to speed so the cooling system runs properly. Replacing a failed relay can restore normal compressor startup and improve cooling reliability. What it does:

• Provides the initial start boost to the compressor motor so it can begin running
• Stops the compressor from repeatedly failing to start, which can prevent cooling
• Commonly linked to symptoms like the compressor clicking, running intermittently, or the appliance not cooling
• Works as the replaceable electrical start component — not a capacitor or overload protector

• Disconnect power before accessing the compressor area to avoid shock
• Verify wiring and match the relay visually and by part number before installing
• Handle gently; do not attempt to modify or repair the relay
