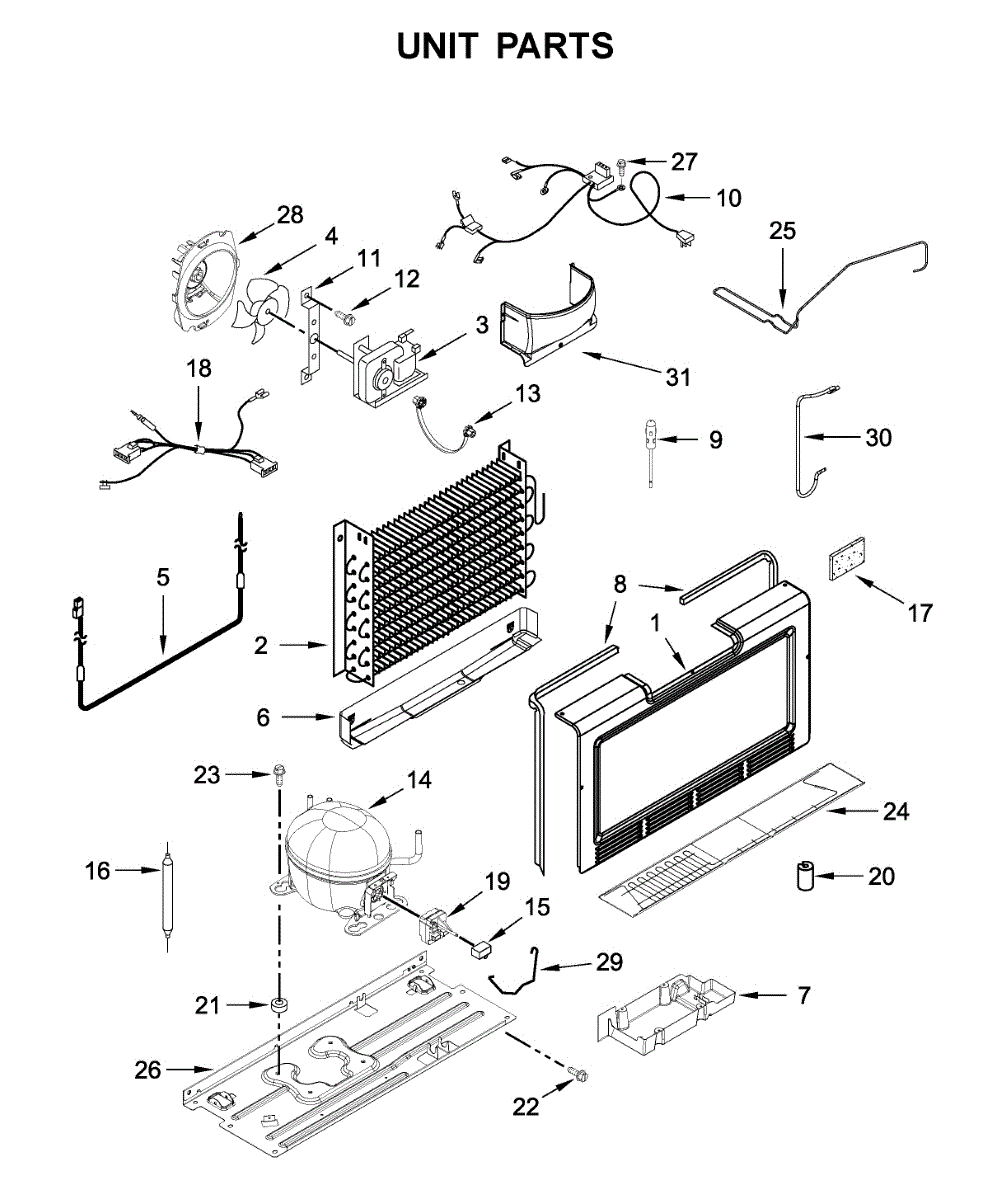

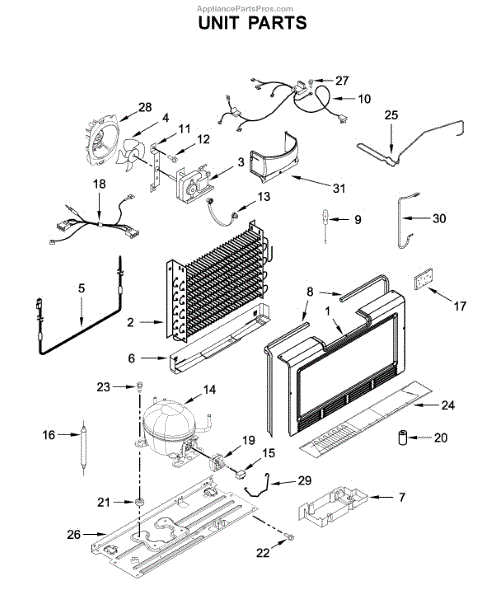

Parts for Maytag MZF34X16DW06: Unit Parts

This wire harness is a factory-style wiring assembly designed to restore reliable electrical connections between major appliance components. It helps ensure consistent power and signal routing for proper operation and safety. What it does:

• Routes power and control signals between components to enable normal appliance functions
• Replaces damaged, burned or frayed wiring that can cause intermittent operation
• Can resolve symptoms such as components not powering, controls not responding, or cycles failing to start
• Provides original-style connector ends and wire routing for a plug-and-play fit when installed correctly

• Disconnect power (and gas if applicable) before beginning any repair
• Compare the new harness to the old one to confirm connector types and lengths before installing
• Route and secure the harness following original cable paths and mounting points to avoid chafing or heat exposure
• If wiring or connector damage is extensive, inspect associated components and replace as needed.

The Compressor is an OEM part for Whirlpool refrigerators. It is responsible for the cooling process of your refrigerator.  It compresses the refrigerant gas, creating the necessary pressure to circulate refrigerant and regulate the temperature inside the refrigerator.

A bad compressor can occur due to various factors, including wear and tear, electrical issues, or refrigerant leaks. If you notice symptoms such as inadequate cooling, unusual noises coming from the refrigerator, or the refrigerator not running at all, it may be time to replace the compressor.

Symptoms of a bad compressor include:

• Inadequate cooling or inconsistent temperature
• Unusual noises, such as clicking or buzzing
• Refrigerator not running or not cooling at all

Repair your refrigerator by replacing the faulty or damaged compressor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This evaporator wire harness routes power and signals to the freezer evaporator components so the cooling and defrost systems operate correctly. It replaces a damaged or disconnected harness to restore circuit connections behind the evaporator. What it does:

• Provides electrical connections to evaporator components such as the defrost heater, thermostat/thermistor, and fan motor
• Ensures consistent signaling for defrost cycles and evaporator fan operation
• Helps stop symptoms like a warm freezer, intermittent cooling, or failed defrost when caused by wiring faults
• Maintains proper routing and secure connector fit to prevent shorts or intermittent contacts

• One evaporator wire harness assembly

• Disconnect power to the appliance before starting any repair
• Remove evaporator cover panels carefully; avoid bending evaporator fins
• Match connector shapes and routing to the original harness; secure away from moving parts

The Start Device is an OEM part for Whirlpool refrigerators. It is a critical component that helps initiate the compressor, enabling the refrigerator to start the cooling process. This device provides the necessary electrical boost to get the compressor running and then disengages once the compressor is up to speed.

Some common causes of a faulty start device include electrical issues, wear and tear, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling problems in your refrigerator.

Symptoms of a bad start device include:

• Refrigerator not cooling properly
• Clicking noises coming from the refrigerator
• Compressor not running
• Overheating of the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing
