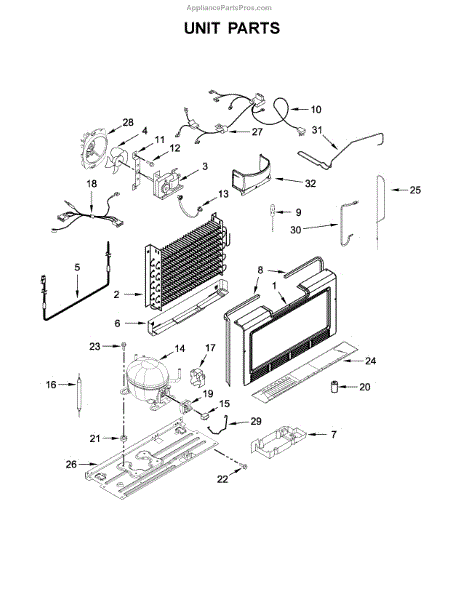

Parts for Whirlpool WZF34X16DW04: Unit Parts

The Evaporator Coil is an OEM part for Whirlpool refrigerators. It is responsible for absorbing heat from the refrigerator interior as refrigerant passes through its fine tubes and fins. Cool air is then circulated through convection to maintain consistent temperatures.

Causes of a bad evaporator coil can include mineral deposits or frozen moisture clogging fins over time, physical damage to tubes, or corrosion of metal surfaces.

Symptoms of a bad evaporator coil include:

• Inability to decrease interior temperatures sufficiently
• High energy bills due to inefficient heat transfer
• Abnormal ice buildup inside due to poor airflow
• Warm or lukewarm areas inside the refrigerator compartment

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, KitchenAid, and some GE models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan catches and channels stray water to help protect floors and the appliance base from leaks and spills. It's a simple replacement that restores proper drainage and reduces visible pooling under the machine. What it does:

• Collects and directs small leaks or condensation away from the cabinet and floor
• Helps prevent water damage to subflooring and surrounding cabinetry
• Stops visible pooling under the appliance that can cause corrosion or staining
• Works with the appliance's drain path to route water to the drain system

• Disconnect power and shut off water supply before starting any repair
• Remove access panels per manufacturer instructions to reach and replace the pan
• Inspect surrounding seals and hoses for damage; replace if needed to stop leaks
• After installation, restore power/water and run a short cycle to check for proper drainage and leaks

This replacement door gasket creates an airtight seal for the refrigerator fresh-food compartment to help maintain proper cooling and reduce frost buildup. It restores door sealing to help the appliance run more efficiently. What it does

• Seals the fresh-food compartment door to keep cold air in and warm air out
• Helps reduce frost and moisture buildup inside the compartment
• Supports consistent internal temperature for safer food storage
• Can improve energy efficiency when the door seal is compromised

• Disconnect power to the appliance before starting any repair.
• Remove the old gasket per the manufacturer's instructions; inspect the door surface for damage or debris.
• Warm and flex the new gasket as needed to ease installation; ensure the gasket is seated evenly in the door channel.
• After installation, check the door for a secure, even seal; adjust alignment if necessary.

This clip is a small mounting retainer that secures appliance panels and components to keep parts aligned and reduce vibration. It restores a snug fit for trim, panels, and harnesses so covers stay in place and operate quietly. What it does

• Holds trim, panels or wire harnesses in position to prevent rubbing and rattling
• Keeps access panels and covers aligned for a proper seal and finish
• Prevents electrical harnesses or hoses from sagging or contacting moving parts
• Stops intermittent scraping or vibration noises caused by loose fittings

• Disconnect power to the appliance before replacing the clip to avoid shock or injury
• Replacement typically requires basic hand tools (flat screwdriver, pliers) to remove the old clip and snap the new one into place
• Inspect surrounding trim, fasteners and harnesses and replace any additional damaged clips as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A small rubber grommet that cushions and protects wiring or hoses where they pass through sheet metal or plastic openings. Replaces a worn or damaged grommet to help prevent chafing and reduce vibration-related noise. What it does

• Cushions and protects wires, hoses, or tubing from sharp edges
• Helps prevent abrasion that can cause fraying or electrical shorts
• Reduces vibration and rattling where components pass through panels
• Commonly replaced when the original shows cracking, tearing, or visible wear

• One rubber grommet

• Disconnect power before accessing internal wiring or panels
• Remove the damaged grommet and press the replacement into the opening until fully seated
• Use blunt tools or a cloth to avoid cutting or distorting the new grommet

This OEM wiring harness connects the appliance's electrical components to restore reliable power and signal paths. Replaces a damaged or burnt harness to help stop intermittent operation and wiring-related error codes. What it does:

• Carries power and control signals between components to enable normal operation.
• Replaces frayed, melted, or broken wiring that can cause intermittent power or failures.
• Helps resolve symptoms such as no power to modules, lights, or motors and erratic component behavior.
• Restores factory routing and connector fit for reliable connections.

• Always disconnect the appliance from power (unplug or shut off breaker) before servicing.
• Follow the OEM wiring diagram and secure harness routing to avoid pinching or contact with moving parts.
• Match connectors and colors; do not splice unless using proper connectors and techniques.

The Start Device is an OEM part for Whirlpool refrigerators. It is a critical component that helps initiate the compressor, enabling the refrigerator to start the cooling process. This device provides the necessary electrical boost to get the compressor running and then disengages once the compressor is up to speed.

Some common causes of a faulty start device include electrical issues, wear and tear, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling problems in your refrigerator.

Symptoms of a bad start device include:

• Refrigerator not cooling properly
• Clicking noises coming from the refrigerator
• Compressor not running
• Overheating of the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

This compressor grommet is the rubber isolator that cushions the refrigerator's compressor at its mounting points. Replacing a worn grommet helps quiet vibration and rattling and reduces stress on refrigerant tubing for smoother, safer operation.

• Isolates the compressor from the base to damp vibration and humming
• Helps prevent metal-to-metal contact and rattling at the mounts
• Supports proper compressor alignment to reduce stress on tubing
• Helps with symptoms like loud buzzing/rattling or cracked/flattened rubber at the compressor feet

• Unplug the appliance and remove the rear access cover to reach the compressor area
• Support the compressor while removing hardware; replace the grommet in the same orientation
• Avoid kinking or stressing refrigerant lines; no sealed-system opening is required
• Tighten mount fasteners evenly and ensure the compressor sits level and isolated

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This fan scroll is the molded blower housing that channels airflow from the appliance's blower wheel for efficient air movement and cooling. It restores directed airflow to help the appliance vent and operate quietly. What it does:

• Directs airflow from the blower wheel through the appliance to improve ventilation and cooling
• Helps maintain proper airflow for heating, drying or cooling cycles
• Reduces air leaks and vibration-related noise when intact and properly seated
• Worn or cracked scrolls can cause reduced airflow, overheating, rattling or poor performance

• Disconnect power before beginning any repair to avoid shock or injury
• Handle carefully—edges and mounting tabs may be sharp or brittle on older parts
• Ensure the blower wheel is correctly seated in the scroll and mounting tabs align before securing panels
• After installation, verify proper airflow and listen for unusual noises; re-tighten fasteners if needed
