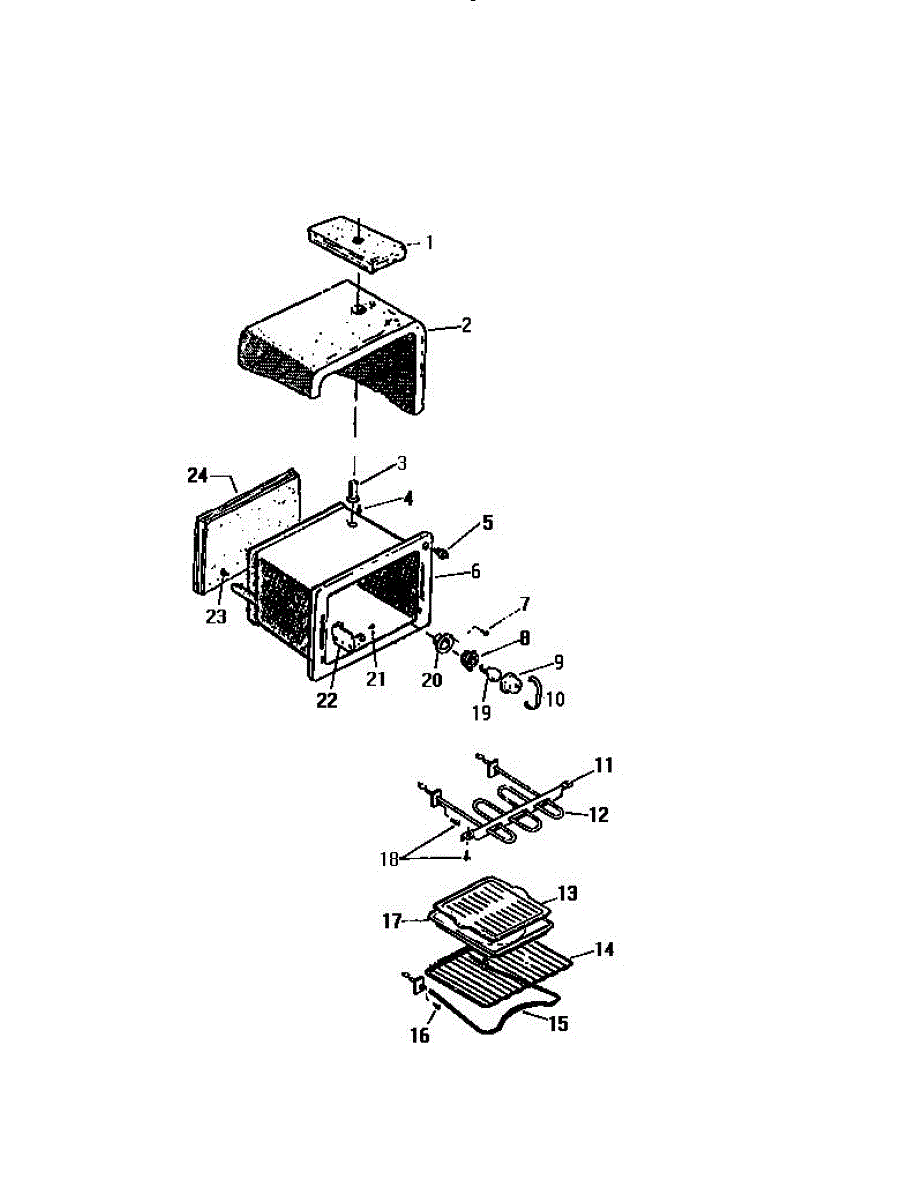

Parts for Frigidaire KD220GDD1: 04 - Oven Cavity Parts

This vent tube directs airflow or drainage away from internal components to the appliance vent opening, helping maintain proper venting and reduce buildup. A simple replacement when the original tube is cracked, split, or disconnected. What it does:

• Routes vented air or condensate from internal ducts to the exterior vent
• Restores proper airflow path when the original tube is damaged or collapsed
• Helps prevent leaks or pooling caused by cracked or disconnected vent tubing
• Reduces chances of performance issues related to restricted venting

• Disconnect power (and gas supply on gas appliances) before starting any repair.
• Inspect surrounding ducts and seals; replace any damaged clamps or connectors for a secure fit.
• Push or clamp the tube fully onto both mating fittings to prevent leaks; secure with the proper fasteners.
• Use basic hand tools.

Has two terminals.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Replace your oven's light lens cover if cracked, broken, or missing. Protects the bulb and restores interior visibility. Confirm fit with your model.

Broiler won't heat or heats unevenly? This upper oven broil element delivers intense top-down heat for broiling. Simple DIY repair takes under an hour.

Oven not heating or baking unevenly? This lower bake element restores proper heating. Easy DIY repair—disconnect power, unscrew element, swap wires.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.
