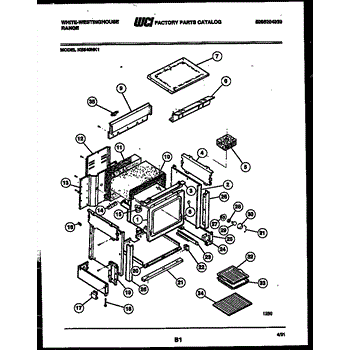

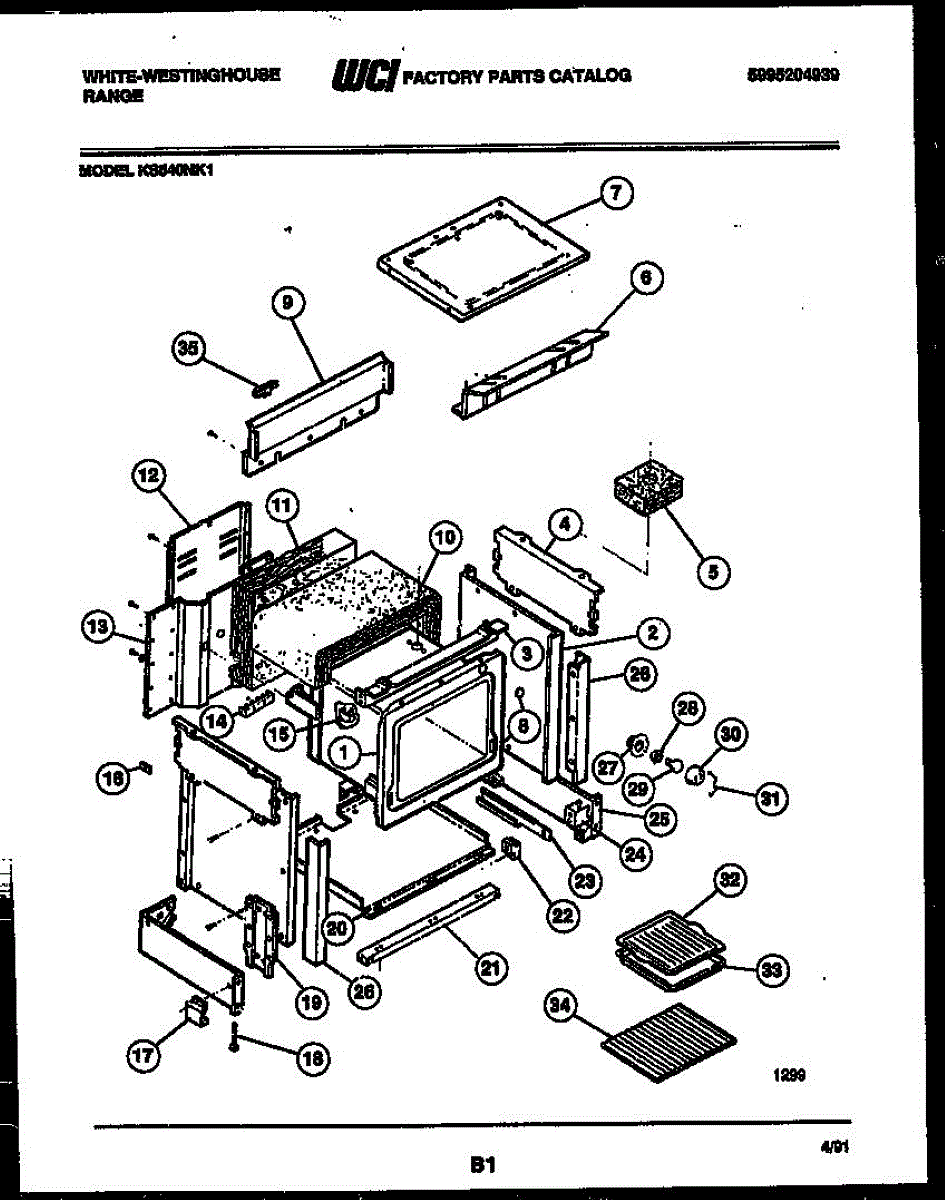

Parts for Frigidaire KS540NKW1: 05 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

Has two terminals.

This lower oven heat shield is a factory-style replacement panel that protects internal components from direct bake-broil heat and helps direct oven airflow for consistent cooking. Restores heat protection and prevents heat-related damage to nearby parts. What it does:

• Shields wiring, insulation and under-oven components from direct heat and hot spots
• Helps control internal oven heat flow for more even cooking
• Reduces risk of scorched or warped parts caused by excessive localized heat
• Common symptom: visible heat damage, burnt insulation, or a missing/warped shield

• Disconnect power (and gas supply if applicable) and allow the oven to fully cool before beginning work
• Handle carefully; edges may be sharp—wear gloves and eye protection
• Basic hand tools usually required; follow for exact fastener locations
• If corrosion or adjacent component damage is present, inspect and replace affected parts as needed

Range won't power on or tripped breaker? Burnt or loose terminal block connections are often the cause. This kit restores safe power delivery. DIY-friendly.

Sold individually.

Nylon guide that supports the front of your range oven drawer as it slides in and out. Replace if cracked, broken, or worn causing drawer misalignment.

This part has been discontinued by the manufacturer and is no longer available.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

Replace your oven's light lens cover if cracked, broken, or missing. Protects the bulb and restores interior visibility. Confirm fit with your model.

Replace your cracked, warped, or hard-to-clean oven rack. This durable rack installs inside your range oven to support cookware during baking and roasting.
