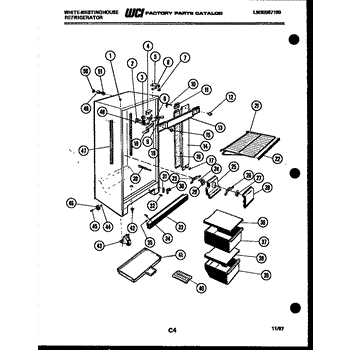

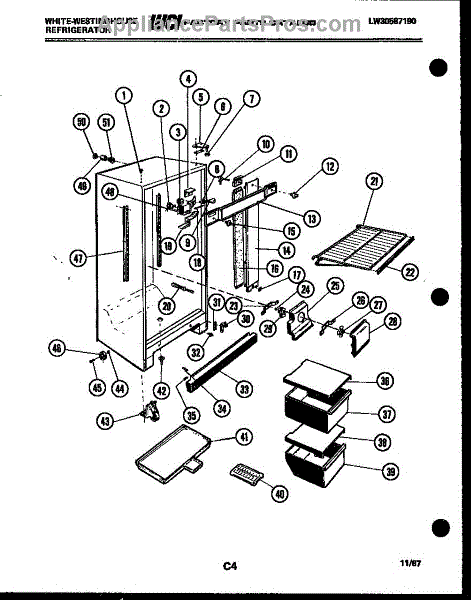

Parts for Frigidaire RA186GCD4: 03 - Cabinet Parts

Excessive ice buildup in freezer or warm fridge? This defrost timer controls the defrost cycle. DIY-friendly repair with basic tools in under 30 minutes.

Upper door hinge for refrigerators. Mounts at the top of the door to support and secure it to the cabinet. Replace if cracked, bent, or worn out.

Replace your refrigerator light socket when bulbs won't illuminate or burn out quickly. Provides secure bulb connection and prevents overheating. Verify fit.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Replace a cracked or broken motor mounting bracket causing excessive vibration or motor misalignment. Simple hand tool installation in 15-20 minutes.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

Fix a loose or vibrating trimmer motor with this front motor mounting bracket. Secures the motor assembly to the housing. Easy 15-minute repair.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

Fix squealing freezer noise or warm fridge temps? Your evaporator fan motor may have failed. Most DIYers replace this in 10-15 minutes with basic tools.

Lower door hinge for refrigerators. Mounts at the bottom of the door to support weight and allow opening. Replace if cracked, bent, or worn out.

This part has been discontinued by the manufacturer and is no longer available.

Refrigerator bottom hinge shim that provides proper spacing and alignment for your door hinge. Replace if worn, damaged, or missing to restore fit.

Interior light not turning on when you open the door? This door-actuated switch restores automatic lighting control. Simple snap-in repair in minutes.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Missing ice trays or need extra ice capacity? This stackable ice cube tray fits most refrigerators. Simple DIY installation takes just minutes.

This drain tube directs defrost and condensation water from the freezer/refrigerator evaporator to the drain pan, helping prevent leaks and ice buildup. Fits the OEM drain path for compatible Frigidaire units. What it does

• Channels defrost and condensation water away from the evaporator area to the drain system
• Helps prevent water pooling, freezer ice buildup, and moisture-related leaks
• Works with the refrigerator's drain pan and heater to ensure proper evaporation
• Common replacement when the original tube is cracked, clogged, or damaged

• One replacement drain tube

• Recommend inspecting for clogs and routing before installing; replace if cracked, split, or hardened
• Disconnect power to the appliance before accessing evaporator area or removing panels
• Use basic hand tools; avoid sharp bends or kinks when seating the tube to maintain drainage
• If water leak persists after replacement, inspect adjacent drain pan, grommet, and drain heater for issues

This part has been discontinued by the manufacturer and is no longer available.

A small replacement pin used to secure and align moving parts in the appliance for reliable operation and correct fit. Replaces a worn or broken locating/hinge pin to reduce play and restore proper movement. What it does:

• Secures and locates a pivot or hinge point so doors, panels, or components stay aligned
• Maintains correct spacing to prevent rubbing, binding, or uneven closing
• Restores stable movement when the original pin is worn, bent, or damaged
• Helps reduce rattling or excessive play at the pivot/hinge area

• Disconnect power and empty/remove any attached panels or doors before starting
• Use basic hand tools; support the component while removing/installing the pin to avoid damage
• Inspect mating parts (bushings, brackets) and replace if excessively worn
• Take care to control spring release to avoid injury
