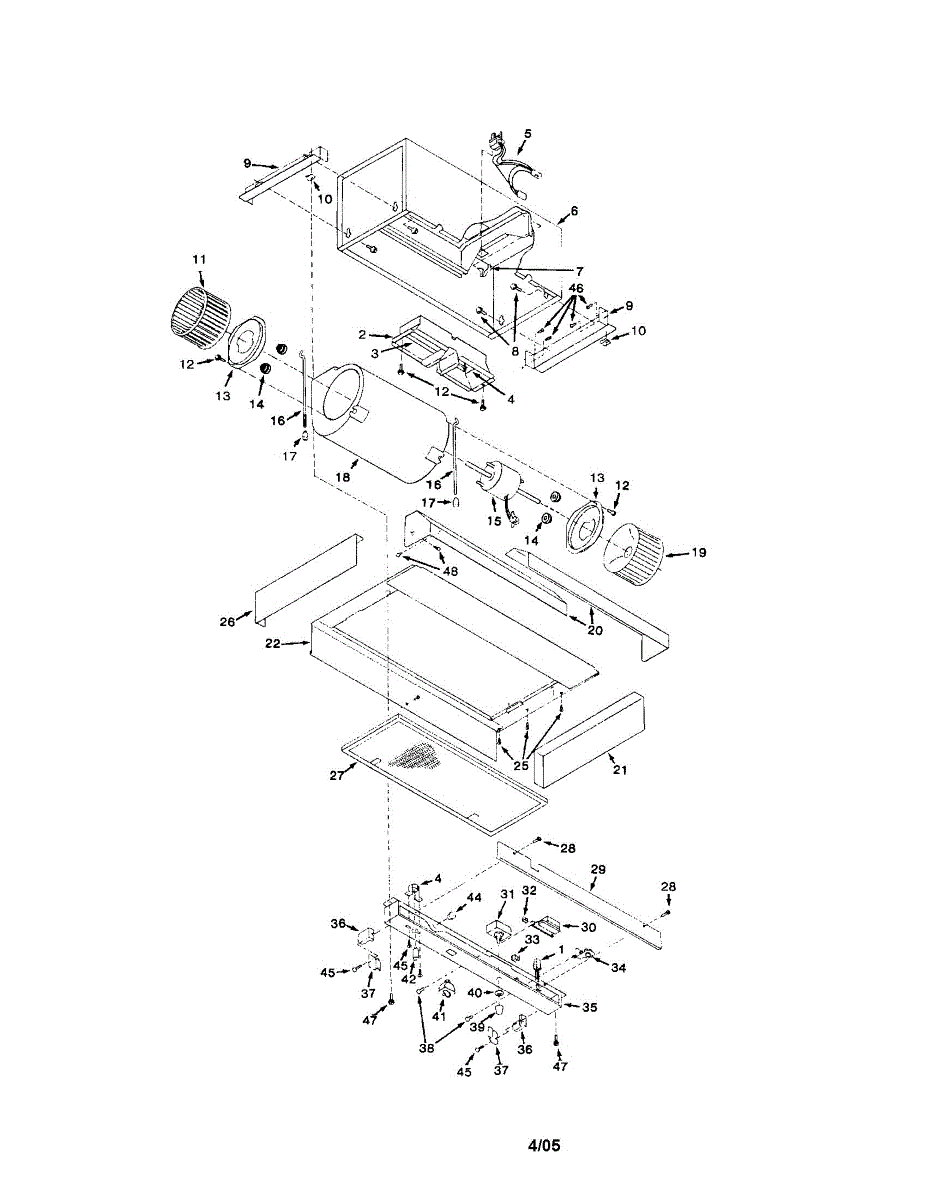

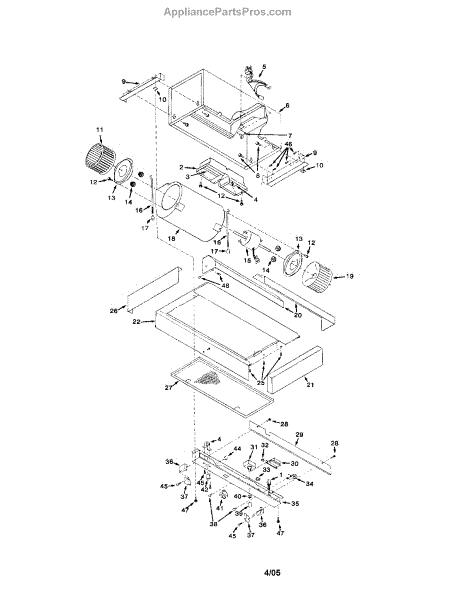

Parts for Broan 103023: Wood Hood Kit Parts

This wire harness routes power and signals between the hood's motor, lights, switches and controls to restore electrical connectivity and proper operation. It replaces a damaged or burnt wiring assembly to help clear electrical faults. What it does:

• Connects the blower motor, light sockets, and control switches to the hood's power supply
• Restores broken or corroded wiring paths that can cause intermittent operation or complete failure
• Helps stop arcing, shorts, or blown fuses when the original harness is damaged
• Enables proper function of speed switches and lighting circuits once installed

• One complete wire harness assembly as shown

• Disconnect power to the appliance at the breaker before starting any work
• Verify connector orientations and secure all wiring with the original clips or mounts
• Inspect adjacent components for heat or damage that could have affected the harness

This replacement fan motor drives the blower that moves air through your ventilation system. Replace a failing motor to help restore proper airflow and reduce noise during operation. What it does:

• Spins the blower wheel/impeller to move air through the venting system
• Helps clear steam, smoke, and odors by maintaining consistent airflow
• Can address symptoms like a fan that won't start, just hums, runs slowly, or is unusually noisy
• Resolve overheating or a burning smell coming from the motor area

• 1 motor

• Disconnect power at the breaker before servicing
• Note wire locations and motor orientation for correct reassembly
• Ensure the blower wheel is secure and spins freely after installation
• Test run before final reassembly and check for vibration or rubbing

This is a replacement mounting nut that secures hardware and components on compatible Broan appliances, restoring proper fastener retention and preventing looseness. What it does

• Fastens and secures panels, brackets, or components in place
• Prevents vibration-related loosening that can cause rattling or misalignment
• Replaces missing or damaged thread hardware for safe, reliable attachment
• Used wherever the corresponding bolt/stud requires a matching nut to hold parts together

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct wrench or socket size to avoid stripping the nut or mating threads
• Thread the nut on by hand first, then snug with a tool; avoid overtightening
• Inspect mating bolt/stud and threads for damage; replace if stripped or corroded

This ballast transformer restores proper power regulation to the appliance lighting circuit so bulbs operate reliably and safely. Designed for use as a direct replacement to revive dim, flickering, or non-working range-hood/vent hood lamps. What it does:

• Regulates voltage to the appliance lighting system so lamps start and run consistently
• Helps eliminate dimming, flicker, or intermittent light failures tied to a faulty ballast
• Works with the hood's existing lamp sockets and wiring to restore normal lighting operation
• Supports service-level replacement where the original ballast has failed

• Service-replacement part — disconnect power to the appliance before starting work
• Handle carefully to avoid damage to terminals; secure mounting per original hardware

This electronic control module operates the hood's fan and lights so the range hood responds to user commands and runs reliably. Replaces a failed or unresponsive control to restore normal vent and lighting operation. What it does:

• Receives input from the hood's buttons or touchpad and activates fan speeds and lights
• Controls power to blower motor and lighting circuits based on user selections
• Can resolve symptoms like unresponsive controls, intermittent fan/lights, or loss of specific speed settings
• Works as the main interface between user controls and the hood's electrical components

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the module carefully; avoid bending pins or exposing it to static
• Typical install requires removing the hood's access panel and unplugging the old module connector(s)
• Test all functions after installation and secure panels before returning the hood to service

This is a direct replacement part sold under the manufacturer's part number for use with compatible ventilation and range hood products. It provides a like-for-like swap when the original component fails, restoring normal function. What it does

• Replaces a failed or damaged factory part to restore appliance operation.
• Prevents intermittent or complete loss of the related feature when installed correctly.
• Helps avoid makeshift repairs that can cause further damage or unsafe operation.
• Works only in models specified by the manufacturer for this part number.

• One replacement part as shown and labeled by the manufacturer.

• Disconnect power to the appliance before attempting any repair to avoid shock or injury.
• Use proper tools and secure fasteners to the manufacturer's specifications; do not force parts into place.

This small replacement retainer secures a range-hood or vent component in place, restoring proper fit and preventing rattling or displacement. It's a simple, inexpensive part that helps keep panels, filters or grilles stable. What it does:

• Holds a grille, filter or small panel securely in its mounting location
• Keeps parts aligned to prevent gaps and air leakage
• Reduces vibration and rattling caused by loose fittings
• Helps prevent parts from falling or shifting during use

• High-level, trim-level replacement; typically installs with basic hand tools
• Disconnect power to the appliance before working near lights, fans or wiring
• Keep track of any screws or clips removed and note original orientation

Replacement rocker switch that restores manual control of the range-hood fan or light, providing straightforward on/off operation. Use this switch to replace worn, stuck, or non-responsive controls for safer, more reliable operation. What it does

• Replaces a failed or damaged rocker-style on/off control so the fan or light will operate when switched.
• Use when the hood fan or light won't turn on, the switch feels loose or sticks, or the control works intermittently.
• Fits into the original switch location and connects to existing wiring/quick-disconnect terminals.
• Restores simple user control without replacing the entire hood control assembly.

• One rocker switch.

• Always disconnect power at the breaker before servicing electrical components.
• Turn off power, label or photo the wiring for reference, then remove the old switch and attach the replacement to matching terminals.
• Secure the switch and restore power; test fan and light operation.

This replacement plug restores a secure electrical connection for compatible Broan ventilation units, letting the appliance receive power safely and reliably. Use it to replace a damaged or worn plug to help resolve intermittent or no-power issues. What it does:

• Provides a proper connection point between the appliance power cord and the outlet
• Replaces damaged, cracked, or frayed plug ends that can cause power loss or arcing
• Can stop intermittent power or complete loss-of-power symptoms when the original plug is the cause
• Maintains grounding and basic safety when installed correctly

• Disconnect the appliance from power before removing the old plug or wiring the new one
• Follow the appliance service manual wiring diagram and secure strain reliefs where applicable
• Do not use the appliance until the plug is correctly installed and tested

This replacement screw secures trim, panels, and internal components on compatible Broan appliances to restore a solid fit and reduce rattling or loose parts. Use it to replace missing or damaged fasteners and maintain safe operation. What it does:

• Secures mounting brackets, trim pieces, or internal assemblies
• Prevents panels from vibrating, rattling, or coming loose
• Restores proper alignment and fit of affected components
• Helps stop intermittent contact or movement that can cause noise

• Disconnect power to the appliance before servicing to reduce electrical and injury risk
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or damage parts
• Keep removed hardware organized and reuse only matching OEM fasteners
