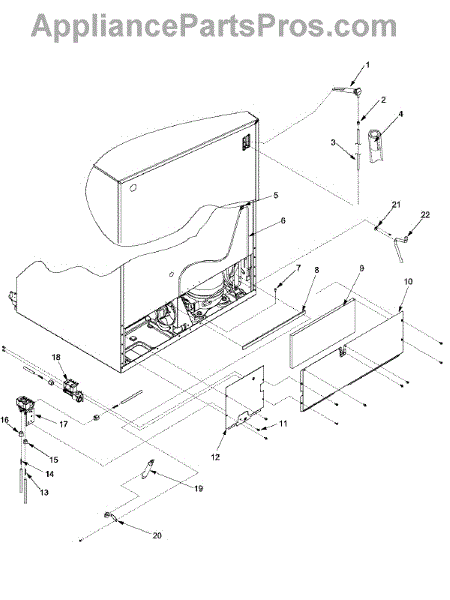

Parts for Maytag PSD264LGRB / PPSD264LGB0: 01 - Cabinet Back Parts

This right-angle elbow fits between the water supply line and the refrigerator's icemaker fill tube. It directs water cleanly into the icemaker and helps maintain a sealed connection to reduce drips and leaks. What it does:

• Connects the inlet water tubing to the icemaker fill tube at a 90-degree angle
• Routes water into the icemaker during the fill cycle
• Helps maintain a watertight connection at the rear of the cabinet
• Common symptoms: leaking behind the refrigerator, slow or no ice production, ice buildup near the fill area

• 1 fill tube elbow fitting

• Unplug the refrigerator and turn off the water supply; relieve line pressure before starting
• Access the rear lower area, place a towel for any residual water, and locate the elbow at the fill tube connection
• Release the clamp or retainer, disconnect the tubing, seat the new elbow fully, and resecure the line
• Turn water back on, check for leaks, then restore power and monitor the first ice fill

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

Ice maker water line: 1/4x 8ft.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

Replacement power cord that restores the electrical connection so your appliance receives safe, consistent power. Use this cord to replace frayed, damaged, or non-functioning cords and help return reliable operation to the appliance. What it does:

• Restores the appliance's main power connection so it can turn on and operate.
• Commonly used when a cord shows frayed insulation, exposed wires, scorch marks, or intermittent power.
• Can address issues where the appliance does not power on due to a broken or damaged cord.
• Replaces cords with loose or damaged plug/terminal connections that may cause sparking or overheating.

• Always disconnect power at the breaker or unplug the appliance before inspecting or replacing the cord.
• Verify the cord configuration (3-prong vs. 4-prong) and terminal type match your appliance and local electrical code before installation.
• Use proper strain relief and routing to prevent pinching; secure all connections and replace any damaged terminal hardware.

Size: 8-32 x .312 inch.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Size: 1/4 inch. Nut for plastic water line.

This water inlet valve kit restores proper water flow to your refrigerator's ice maker and/or dispenser. Replace a sticking, leaking, or failed valve to resolve no-ice, no-dispense, or slow-fill issues and help prevent water leaks.

• Controls water from the household supply to the ice maker and/or water dispenser on demand
• Opens when energized and closes to seal off flow when inactive
• Common symptoms include no ice production, no or slow water dispensing, dripping at the fill area, leaks near the valve, or unusual buzzing/clicking from the valve
• Helps maintain consistent, reliable filling performance

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water and relieve line pressure
• Note tube and wire locations; transfer bracket/fittings as needed and tighten all connections securely
• Restore water and power, check carefully for leaks, and purge air from the system per manufacturer guidance

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

The Primary Water Inlet Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water into the refrigerator's ice maker and water dispenser.

Causes of a bad primary water inlet valve can include mineral deposits or debris clogging the valve, electrical issues such as faulty solenoids, and general wear and tear from frequent use.

Symptoms of a bad primary water inlet valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Low water pressure from the dispenser

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drier is the factory replacement air/gas flow assembly that helps maintain proper airflow and drying performance in compatible laundry dryers. Replacing a worn drier restores consistent drying and reduces overheating risk. What it does:

• Directs and stabilizes heated air through the drum for efficient drying
• Helps prevent restricted airflow that can cause long dry times or damp laundry
• Supports safe exhaust flow to reduce the chance of overheating or lint buildup
• Works with the dryer's heating and ventilation components to maintain normal operation

• One drier assembly as shown

• Disconnect electrical power before beginning service; if this is a gas dryer, turn off and disconnect the gas supply
• Follow the dryer manufacturer's service manual for disassembly and reassembly steps
• Use appropriate hand tools and avoid forcing parts; inspect venting and lint traps while replacing

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.
