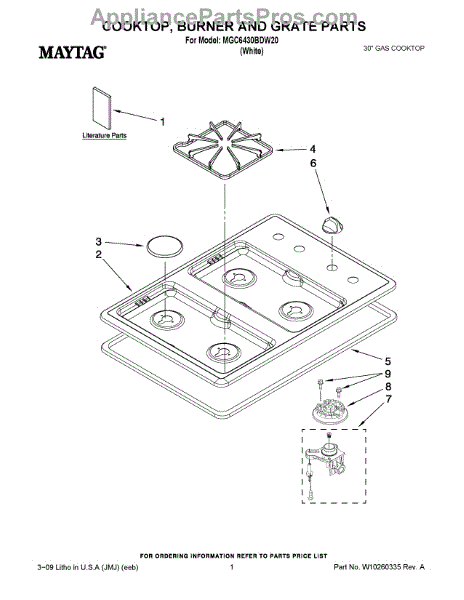

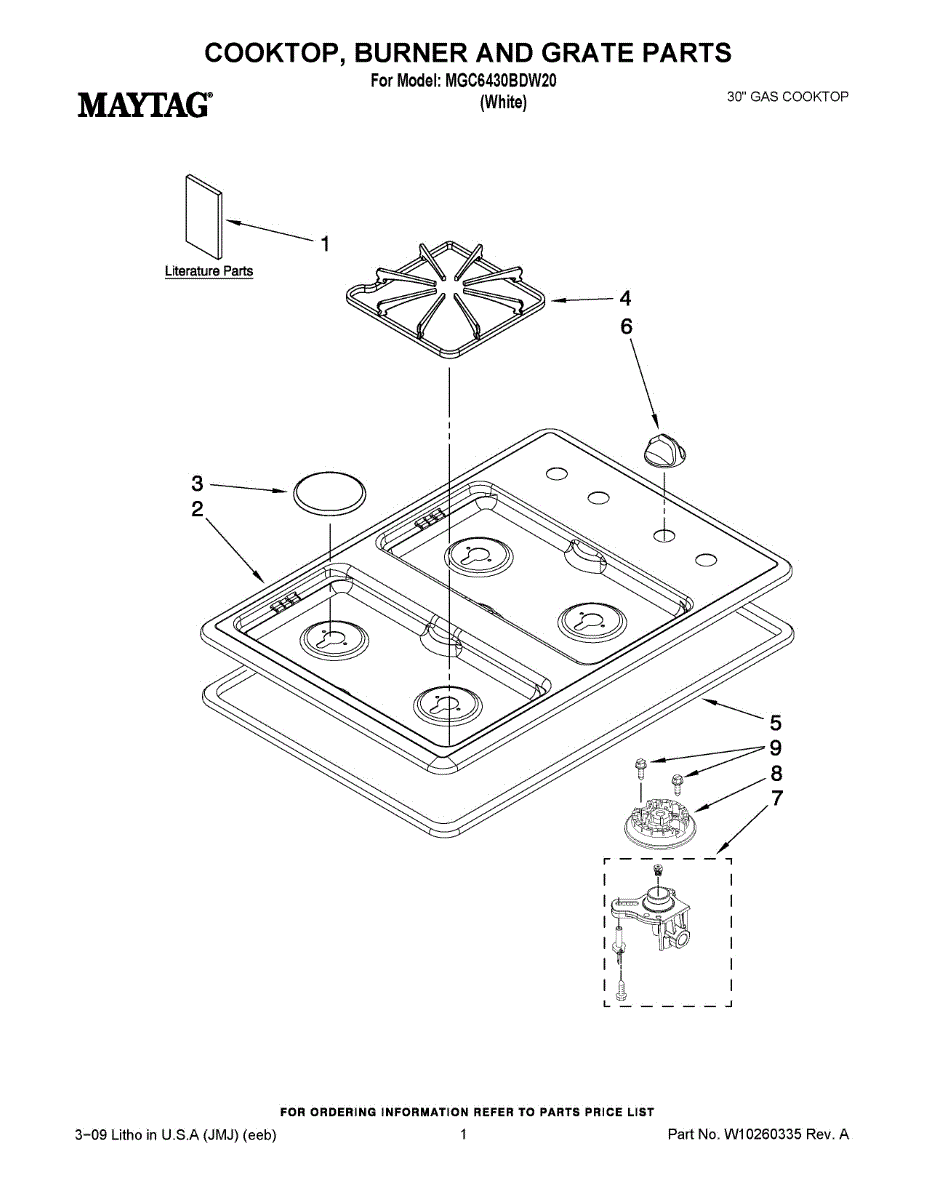

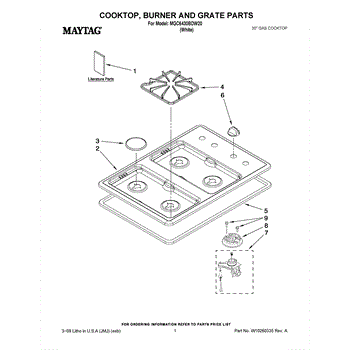

Parts for Maytag MGC6430BDW20: 01 - Cooktop, Burner And Grate Parts

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents

Color: White. Measures about a little over 2 inches in diameter. For black order WP74011287.

This surface burner orifice holder is a genuine Whirlpool part, sold individually. This surface burner orifice holder can be used as a replacement part in a gas range. This part holds the components of the burners in place, such as the igniter, the burner cap, the retaining nut, the spring clips, and the burner grates.If the surface burner orifice holder of one of the burners is lost or misplaced, the component should be immediately replaced with this genuine OEM replacement part. If the surface burner orifice holder is damaged, the component should be removed and replaced. The repair or replacement process is simple. The repair or replacement will require a putty knife and a screwdriver. Work gloves should be worn during the repair or replacement process.This is an OEM part sourced directly from the manufacturer. This surface burner orifice holder is compatible with the following appliance brands: Whirlpool and Amana.

This orifice holder secures the center burner orifice on gas ranges, keeping the orifice aligned so the burner lights and burns properly. Replaces a worn or damaged holder to restore consistent pilot/flame position and performance. What it does:

• Holds the center burner orifice in the correct position for proper gas flow
• Helps maintain an even, reliable flame at the center burner
• Can address symptoms like a center burner that won't light or has an uneven/weak flame
• Works as the mounting piece for the matched orifice insert

• Turn off the appliance and shut off the gas supply before servicing
• Only install the exact replacement part for your model; check the appliance parts diagram
• Use basic hand tools; avoid overtightening to protect threads and seals

This orifice holder routes gas from the surface burner valve to the burner head. Sized for a 12K burner, it restores proper gas flow and reliable ignition when the original holder is damaged, clogged, or misaligned.

• Positions the orifice and channels gas to the burner head on a 12,000-BTU burner
• Maintains correct gas flow for a steady, consistent flame
• Common symptoms: burner won't ignite though the igniter sparks, weak/uneven flame, or stripped/damaged threads at the holder
• Match the 12K rating to the correct burner location per your model's parts diagram

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner parts; lift the cooktop as needed to access the holder
• Transfer any brackets/gaskets from the original and install squarely; do not overtighten fittings
• Restore gas and check all connections with a non-corrosive leak-detection solution; verify ignition and flame quality

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
