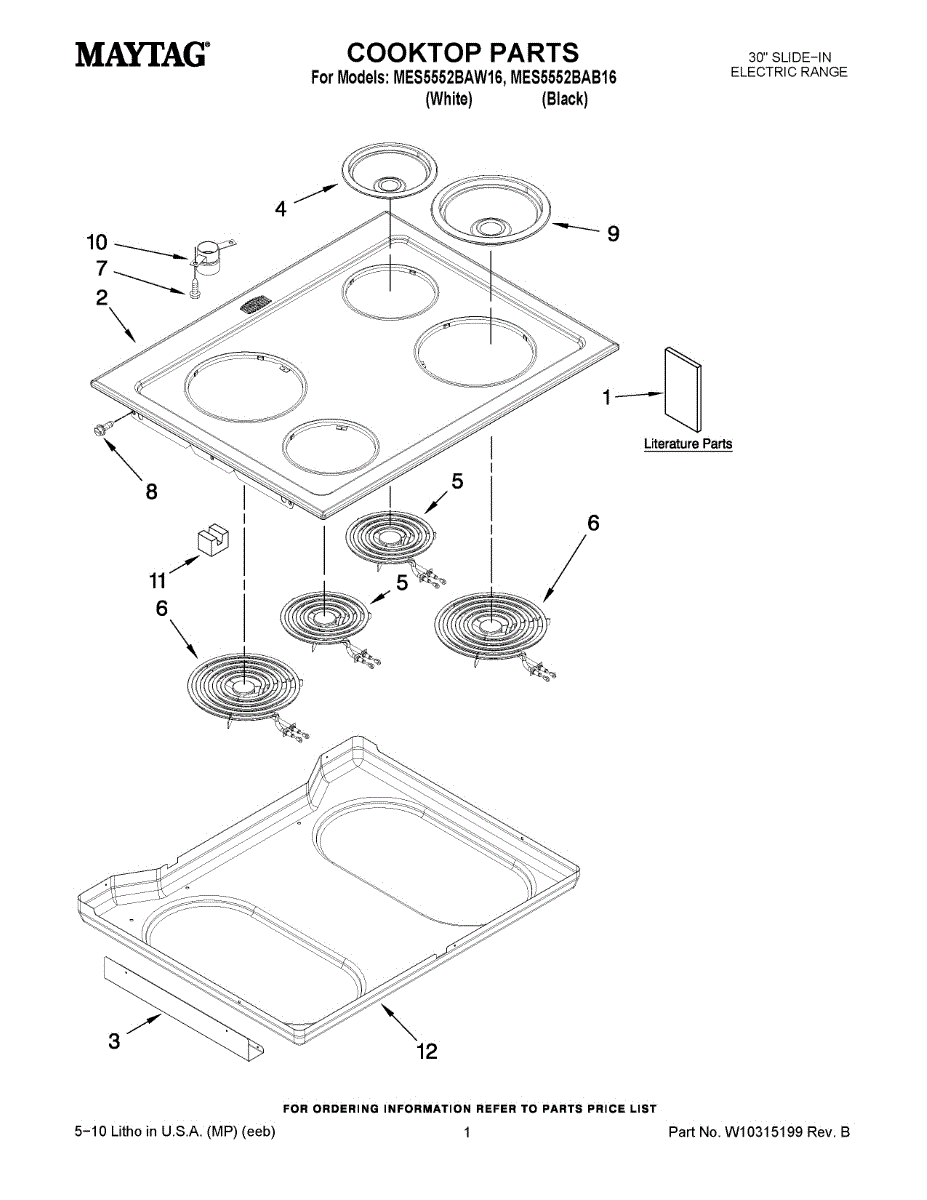

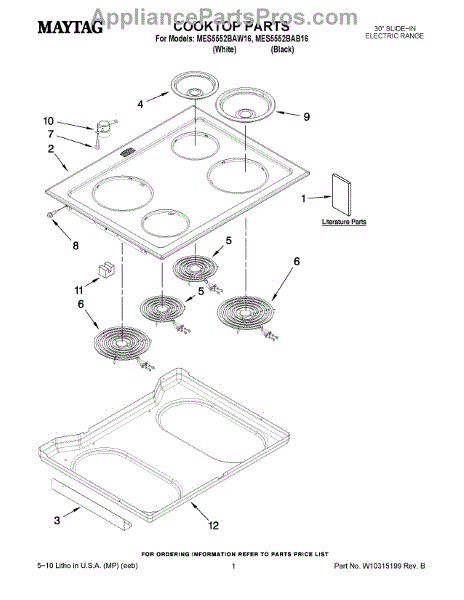

Parts for Maytag MES5552BAB16: 01 - Cooktop Parts

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

This 8-inch coil surface element restores reliable heating on the large burner of electric ranges and cooktops. Its 2350-watt design provides steady, even heat for boiling, frying, and everyday cooking.

• Converts electrical power into heat for the large cooktop position
• Common failure symptoms: no heat, uneven heating, only part of the coil glowing, visible breaks or blisters, or failed continuity
• Plug-in coil style for receptacle-type burner sockets
• If no heat persists after replacement, also inspect the element receptacle and the burner switch

• Disconnect power to the range/cooktop and allow the element to cool completely
• Lift the old element and pull straight out from the receptacle
• Align the new element's terminals with the receptacle, push in firmly until fully seated, and set it into the support/drip bowl
• Restore power and test the burner

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.
