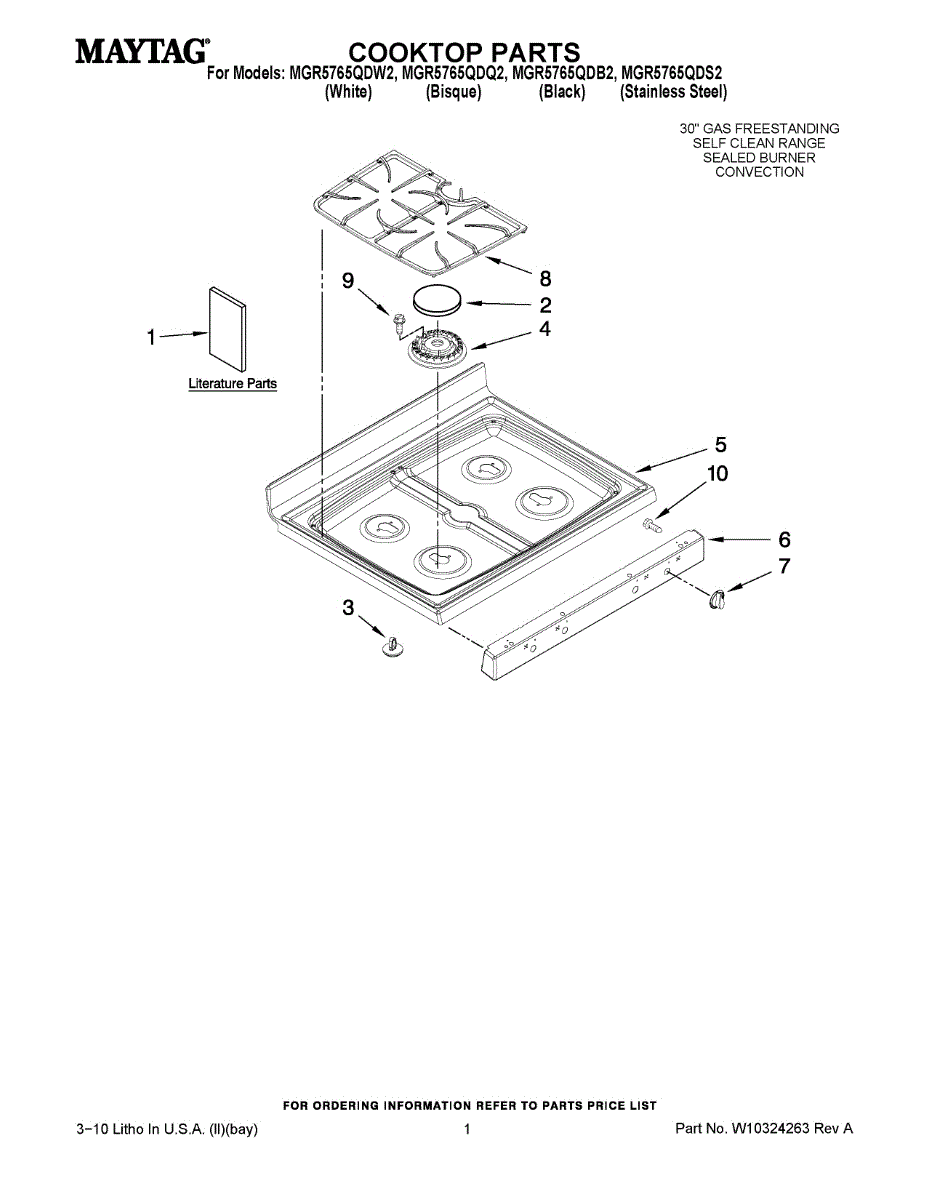

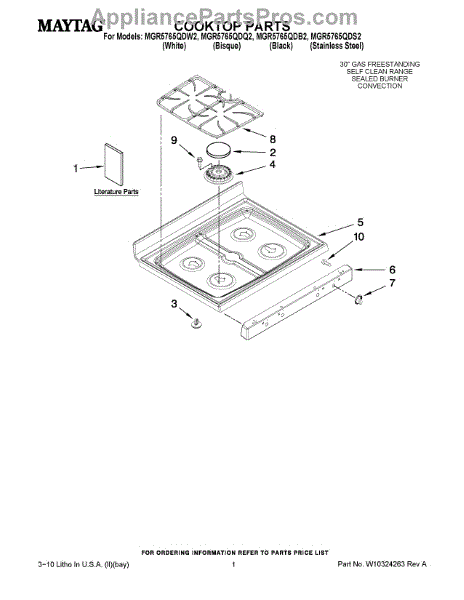

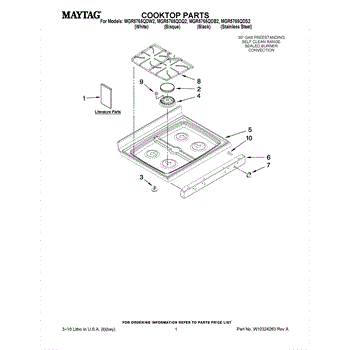

Parts for Maytag MGR5765QDS2: 01 - Cooktop Parts

Color: Taupe. Medium

Color: Taupe. Large

Color: Taupe. Small

This large gray burner cap fits over a cooktop's burner head to protect burner ports and help shape the flame for even cooking. Replacing a damaged cap restores proper burner appearance and helps maintain consistent heat. What it does:

• Covers the burner head to protect ports from spills and debris
• Helps direct and stabilize the burner flame for more even heating
• Can reduce flame irregularities caused by warped or cracked caps
• Restores the cooktop's finished appearance when original cap is chipped or discolored

• One large gray burner cap

• Turn off the appliance and ensure all surfaces are cool before starting
• Remove old cap by lifting straight off; set new cap in place so it seats flat on the burner head
• Clean burner head and surrounding area of debris before installation

This medium-gray burner cap covers the cooktop burner to help direct flame and protect the burner head from spills and debris. It restores proper flame shape for more even cooking and a cleaner cooktop appearance. What it does:

• Sits on top of the burner head to shape and stabilize the flame
• Protects the burner head from food spills, grease and corrosion
• Helps promote even heating and consistent cooking performance
• Can reduce visible flame irregularities or weak spots around the burner
• Useful when a cracked, warped or missing cap causes poor ignition or uneven cooking

• One medium-gray burner cap

• Ensure the range is off and cooled before handling burner parts
• Remove the grate and lift off the old cap; set the new cap in place so it seats flat on the burner head
• Do not force or rotate the cap; improper seating can affect ignition or flame shape
• Wipe away debris before reinstalling grates; test burner on low flame to confirm proper operation

Color: Black. Size: Medium.

Color: Black. Size: Large.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: White

Color: White

Color: Black

This replacement control knob restores a worn, cracked, or missing range/stove control interface so you can safely and accurately set cooking temperatures and modes. Simple, direct fit for compatible Whirlpool control shafts. What it does:

• Replaces a damaged or missing range/stove control knob so settings can be adjusted reliably
• Provides a solid grip and clear pointer for selecting temperature or function
• Stops slipping or spinning when the original knob has become loose or worn
• Helps prevent accidental setting changes from a broken or hard-to-turn control

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Align the knob splines with the control shaft and push straight on until fully seated
• Verify proper operation by turning the control through its settings after reconnecting power
• If the knob does not seat or turn smoothly, do not force it—inspect shaft and replace damaged components as needed

Color: Taupe. Dual.

Color: Gray. Dual.

Color: Black. Dual. Includes grate feet.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
