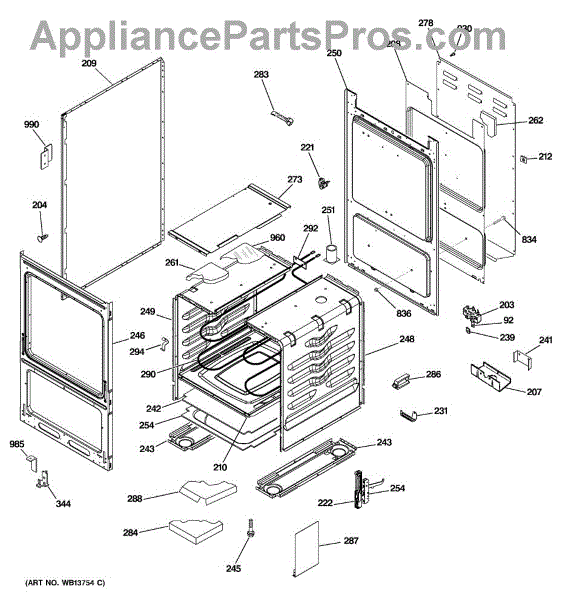

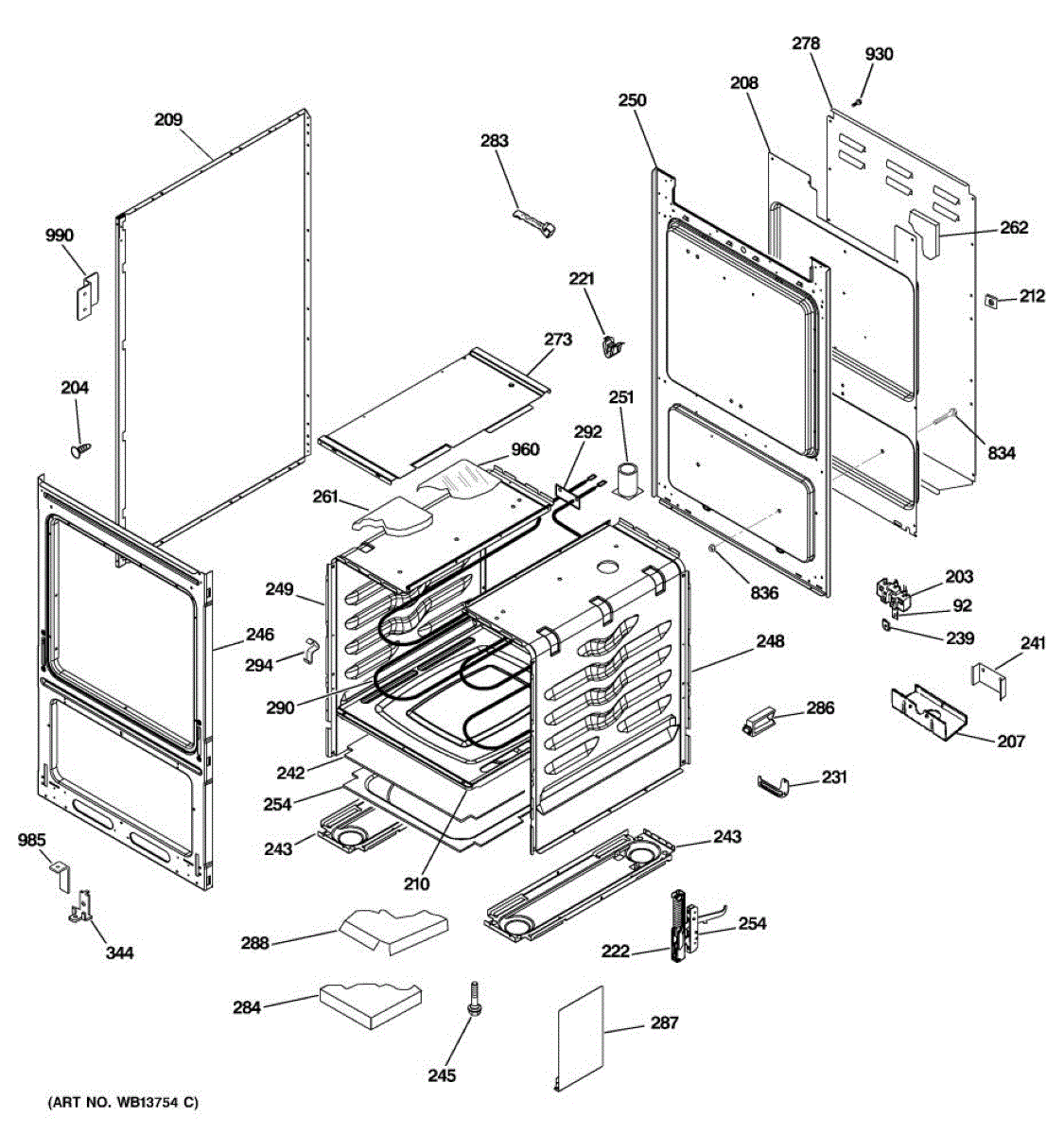

Parts for Ge RA724K1WH: 02 - Body Parts

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

Replace your range's damaged or missing side panel. This exterior trim piece installs along the side of your oven to restore its finished appearance.

Single speed nut fastener that provides threads for screws on appliances. Secures sheet-metal panels, brackets, or trim. Replace if missing or worn.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Oven door hinge assembly for ranges. Mounts to the oven frame to support and pivot the door. Replace if hinge is broken, bent, or worn causing misalignment.

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Fix a range that won't power on or has no electricity flow. This terminal block connects power supply wires to your range. Moderate DIY repair.

Shield that protects the broiler element area in your range. Replace if cracked, warped, damaged, or missing to restore proper oven protection.

This replacement leveling screw secures and adjusts an appliance's leg so the unit sits level and stable on the floor. Restores proper tilt for even door operation and stable performance. What it does:

• Replaces a worn or damaged leveling screw used to raise or lower an appliance leg
• Helps stop rocking, reduce vibration, and keep doors aligned
• Common fix when an appliance tilts forward/back or is uneven on the floor
• Works with the corresponding leveling leg/assembly to set final height

• Support the appliance before adjusting or removing leveling hardware to prevent tipping
• Use appropriate hand tools; tighten securely but avoid over-torquing
• No electrical disconnection is typically required, but unplug if working near electrical components
• If the leveling leg assembly is damaged, replace the entire leg/assembly per manufacturer instructions

Vent tube for electric ranges. Channels air flow from the cooking surface to the exhaust system. Replace if cracked, damaged, or missing to restore proper ventilation.

Oven insulation wrap installs around the range oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, or missing for efficiency.

Insulation wrap that fits around the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, missing, or damaged during repairs.

Back cover panel for electric ranges. Mounts to rear of unit to enclose internal components. Replace if cracked, dented, rusted, or missing for proper coverage.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

This bottom insulation is the replacement foam panel that fits under the refrigerator cabinet floor to help reduce drafts and stabilize internal temperatures for more consistent cooling and quieter operation. What it does:

• Provides thermal barrier under the cabinet to help limit cold spots and improve temperature consistency
• Helps reduce vibration and noise by damping movement of the cabinet floor
• Blocks drafts and air leakage from beneath the unit
• Restores proper airflow pathways when original insulation is damaged or missing

• Disconnect power and remove food, shelving, and lower access panels before servicing
• Wear gloves and a mask when handling old insulation; dispose of torn or contaminated material safely
• Position the panel in the original location without compressing it; secure with existing clips, adhesive, or fasteners as used by the manufacturer

This hinge deflector guides and protects the refrigerator door at the top hinge, helping the door open and close smoothly and preventing rubbing or catching. It restores correct door alignment and reduces wear on hinge components. What it does:

• Guides the door on the top hinge to maintain proper movement and alignment
• Helps prevent the door from rubbing, scraping, or catching on the cabinet
• Reduces wear and noise at the hinge area caused by misalignment
• Supports smooth opening and closing for a secure seal

• One hinge deflector

• Always unplug the appliance or switch off power before starting work
• Support the door before removing or loosening the top hinge to prevent injury or damage
• Remove the top hinge hardware, replace the deflector, then reassemble and tighten hardware securely
• Check door alignment and operation after installation; adjust hinge hardware as needed

Oven won't heat or preheats slowly? Replace the bake element to restore proper heating from the bottom. Simple DIY repair with basic tools in under an hour.

If your oven won't broil or brown food on top, this broil element restores upper heating. Direct replacement for standard ranges in about 30 minutes.

Secures the broiler element at the top of your oven for proper heat distribution. Replace if broken, missing, or failing to hold element in place.

Replacement screw for electric and gas ranges. Secures internal components and panels. Needed when original hardware is stripped, missing, or lost during repairs.
