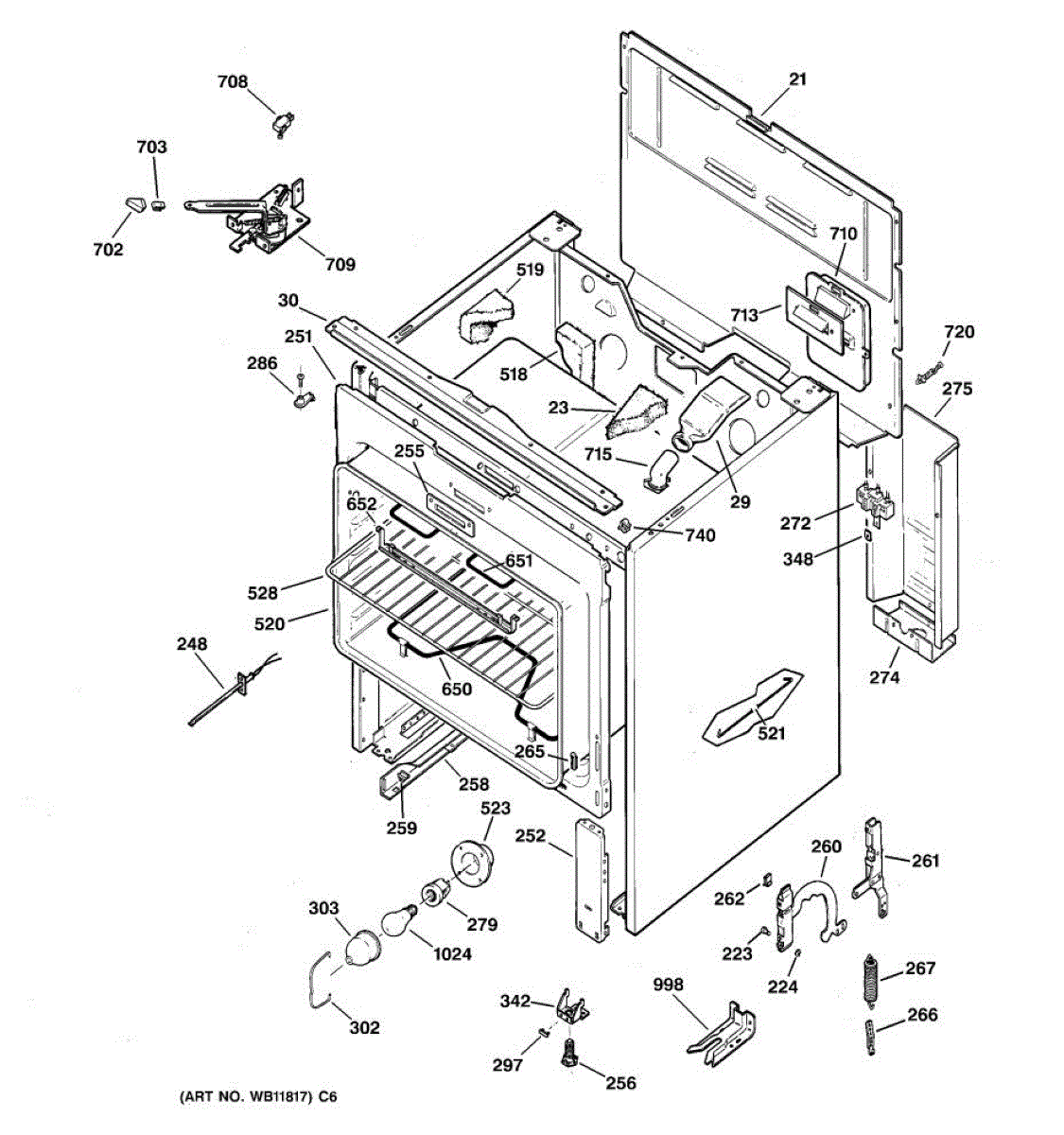

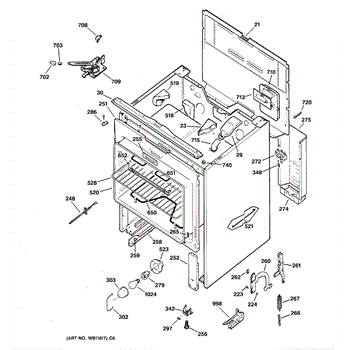

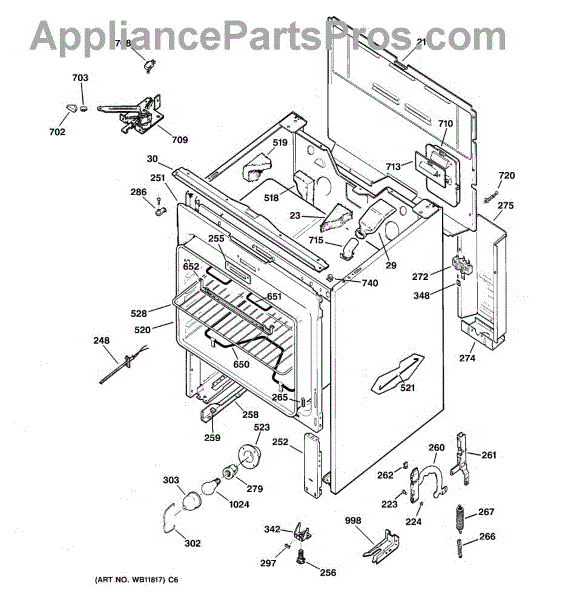

Parts for Ge RB787WB1WW: 02 - Body Parts

Clip for door hinge.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Right hand side

Left hand side

Range won't heat or power cord overheated? A faulty terminal block disrupts power to elements. Common DIY fix with basic tools in under an hour.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Replacement door latch hook assembly for electric ranges. Secures the oven door for proper closing and sealing. Needed when hook is broken or worn.

Metal oven rack provides stable support for cookware inside your range oven. Replace cracked, rusted, bent, or missing racks to restore proper function.

If your oven won't heat or the bake element burned out, this replacement part restores proper baking. Easy 10-minute DIY install—unplug & swap.

Broiler won't heat or stays cold? This range broil element restores high-heat broiling. DIY-friendly repair, typically takes 20 minutes to replace.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

This body vent directs airflow at the refrigerator cabinet base to help maintain proper air circulation and protect internal components. It replaces a cracked, broken, or missing vent to restore correct cabinet airflow and appearance. What it does:

• Channels air along the cabinet base to support consistent cooling and compressor ventilation
• Prevents debris from entering the cabinet opening and interfering with components
• Stops drafts or noise caused by a loose or damaged vent piece
• Improves finished appearance where the original vent is cracked or missing

• Disconnect power before servicing any appliance components
• Remove any front grille or access panels needed to reach the vent
• Snap or slide the replacement vent into the cabinet opening until it seats firmly
• Inspect fit and clearance; do not force or modify the part

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.
