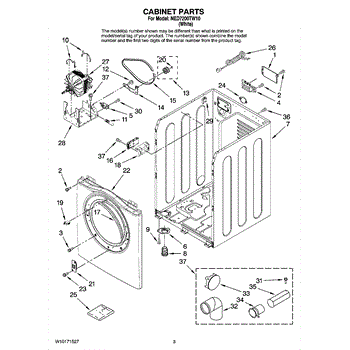

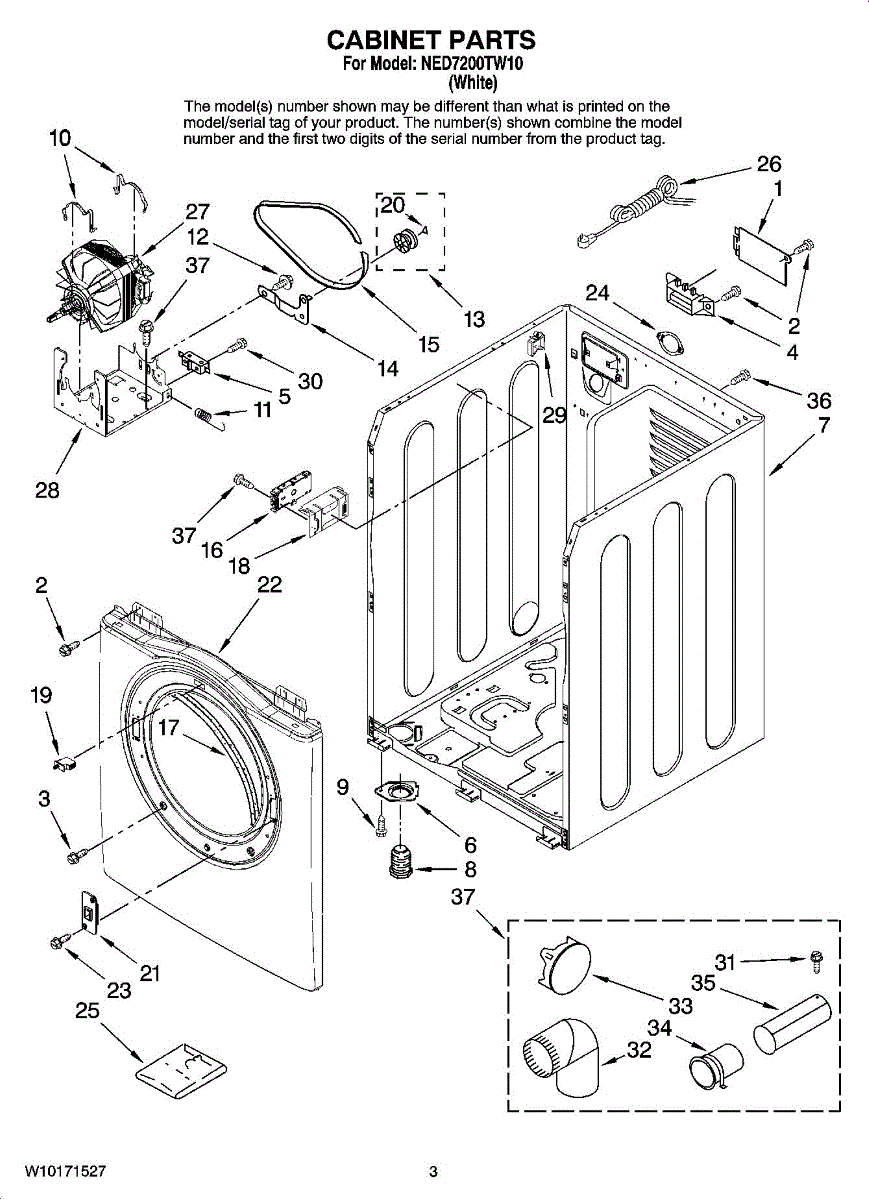

Parts for Maytag NED7200TW10: 02 - Cabinet Parts

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Pulley only is part# WP35001086

This drive belt transfers the motor's rotation to the appliance's drive system, allowing the mechanism to move as designed. A stretched, glazed, or broken belt can stop movement or cause slipping and noise.

• Transfers motor power to the drive system for proper operation
• May cause no movement even though the motor runs or hums
• May produce squealing/chirping or a burning rubber smell
• Visible belt wear can include cracks, fraying, or glazing
• Intermittent slipping or reduced performance under load

• Disconnect power before servicing; shut off gas supply.
• Access the belt through the designated service panel; note the belt routing before removal.
• Inspect pulleys and the idler/tensioner for wear; replace worn components.
• Align and tension the new belt, then hand-rotate to verify tracking before testing.

A replacement dryer motor that spins the drum and drives the blower so clothes tumble and air circulates. Restores proper drum rotation for normal drying performance. What it does:

• Turns the dryer drum and powers the blower for airflow
• Stops or reduces tumbling when the motor fails
• Can cause loud grinding, squealing or unusual noises if bearings wear
• Prevents the dryer from starting or advancing through cycles

• Disconnect power before servicing to avoid shock hazard
• Basic hand tools required; keep track of mounting screws and wire connections
• Compare new unit to old before installation and reconnect wires to matching terminals
• Test the dryer on a short cycle after installation to ensure proper operation

This factory screw secures appliance components such as panels, brackets, and trim. It replaces missing, stripped, or damaged hardware to restore a tight, rattle-free fit and proper alignment in the specified location for your model.

• Fastens covers, panels, brackets, or trim as specified in the parts diagram
• Restores secure fit when an original screw is missing or damaged
• Helps reduce vibration, rattling, and looseness
• Direct-fit hardware specified by the manufacturer for the original location

• Disconnect power and shut off water/gas before servicing
• Verify the screw's location in your model's parts diagram before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver/bit and avoid overtightening into plastic to prevent stripping

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components
