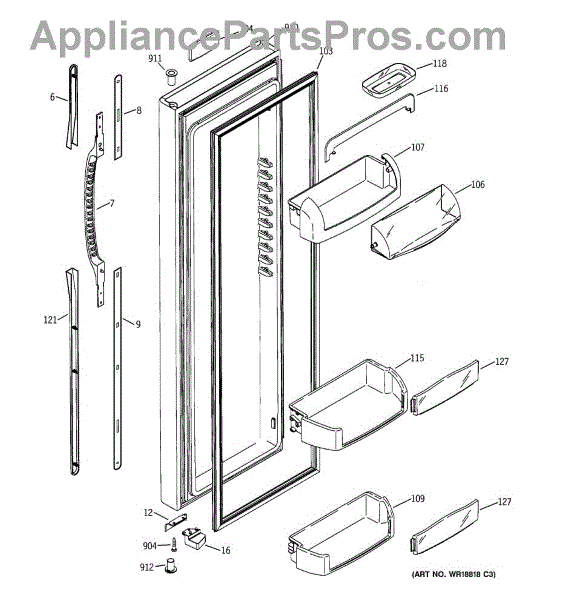

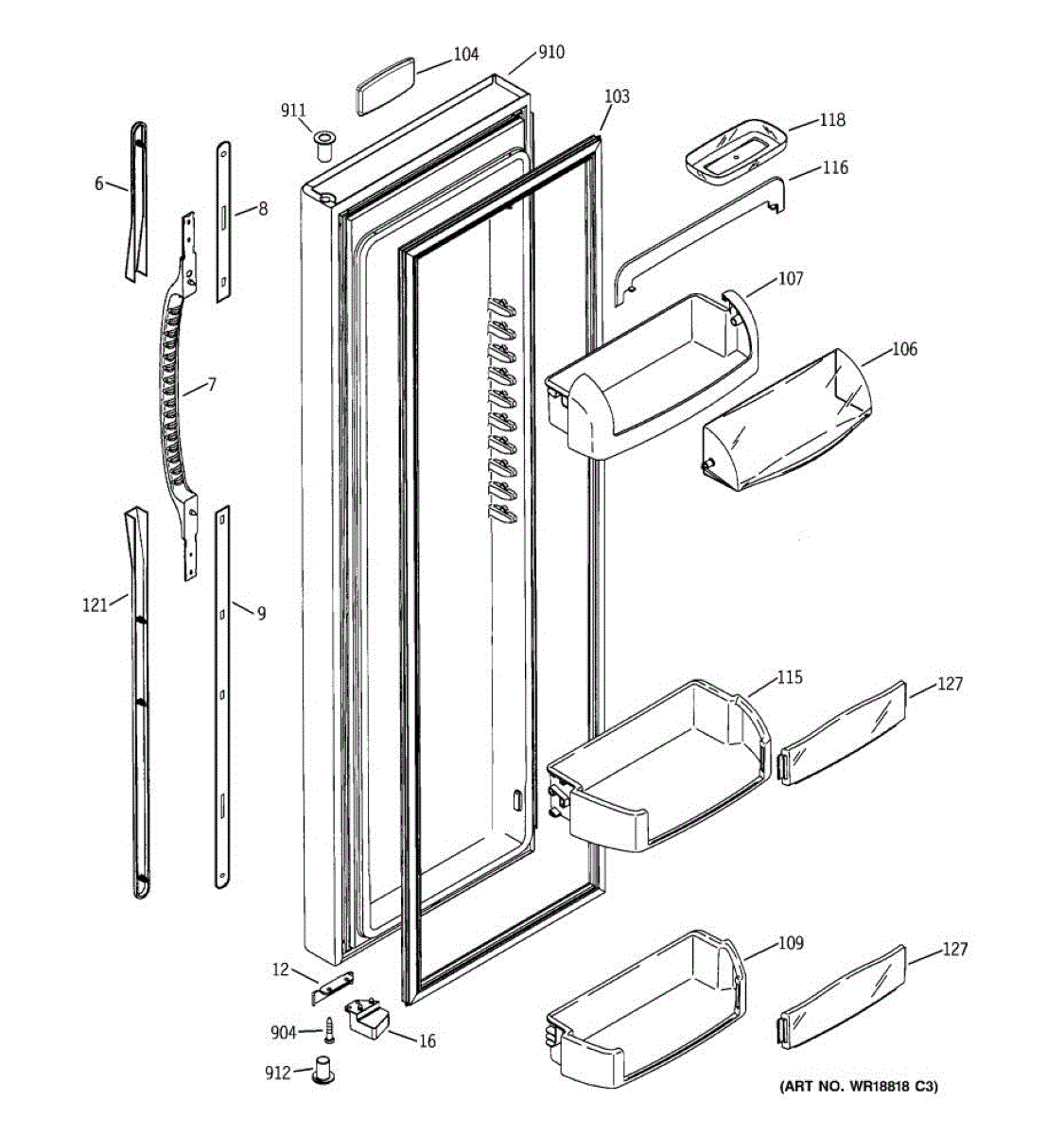

Parts for Ge ESS25LSMABS: 02 - Fresh Food Door Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


For the same part in white, purchase WR02X13424.

The Fresh Food Door Closure Cam is an OEM replacement part for GE refrigerators. It is a component located inside the fresh food door that works together with the door latch mechanism. The door closure cam has a pivoting arm that engages the latch to securely fasten the door shut when closed. For the same part in white, purchase WR02X10637.

Causes of failure include wear and tear over time from repeated usage, damage due to accidental mishandling of the door, or an impact that causes misalignment of the cam.

Symptoms of a bad door closure cam include:

• The refrigerator door not closing properly
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Door Gasket is an OEM part for GE refrigerators. This gasket forms a seal around the refrigerator door, preventing warm air from entering and cool air from escaping, thereby ensuring optimal cooling efficiency.

You should replace the refrigerator door gasket if it becomes worn, cracked, or damaged. Causes of a bad gasket can include regular wear and tear, exposure to extreme temperatures, or damage from repeated opening and closing of the door.

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator
• Excessive frost build-up inside the refrigerator
• Increased energy consumption
• The refrigerator door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Bin is an OEM part for GE refrigerators. It is a convenient storage compartment located on the interior of the refrigerator door, designed to hold and organize smaller items such as condiments, jars, or beverages.

Symptoms of a faulty door bin:

• Cracks or breaks in the bin itself
• Difficulty in removing or inserting the bin
• Loose or misaligned fit within the door
• Leaks or spills from the bin

Causes of a bad door bin can include physical damage from impact or excessive force, general wear and tear over time, or issues with the mounting brackets or support mechanisms.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Door Bin is an OEM part for GE refrigerators. This door bin is designed to fit onto the inner door panel of the refrigerator, providing convenient storage for condiments, bottles, and other items that need to be easily accessible. The use of this bin helps to maximize the storage capacity of the refrigerator, keeping items organized and within reach.

Causes of damage to the door bin often include overloading it with too much weight, which can lead to stress cracks or breakage.

Symptoms of a bad Door Bin include:

• Cracks or breaks in the bin
• The bin not fitting properly onto the door panel
• Difficulty in sliding the bin in and out or removing it for cleaning

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This tail handle is the replacement end piece for a refrigerator door handle assembly, restoring a finished grip and proper handle fit. It helps maintain a secure, comfortable hold and keeps the door handle aligned. What it does:

• Replaces a cracked, broken or missing tail/end piece on a refrigerator door handle
• Restores proper fit and finish so the handle sits securely and functions normally
• Helps eliminate looseness, wobble or sharp edges caused by a damaged tail piece
• Matches OEM shape to maintain original handle appearance

• One tail handle piece as shown

• High-level installation: access the door handle ends, remove any retaining screws or clips, swap the damaged tail piece for the replacement, and reassemble
• Use basic hand tools; avoid over-tightening fasteners to prevent cracking
• If the handle is painted or scratched, handle replacement part carefully to avoid surface damage
• Disconnect power only if working near electrical components or lights; otherwise no electrical disconnection is typically required

The Door Bin Front is an OEM part for GE refrigerators. This component serves as the front barrier for door bins, helping to keep stored items in place and preventing them from falling out when the door is opened or closed. This front measures approximately 13 inches wide by 3-1/2 inches high.

Common causes of a bad door bin front include cracking due to impact, stress from heavy items, or general wear and tear from frequent use.

Symptoms of a bad door bin front include:

• Items falling out of the door bin
• The bin front appearing loose or detached
• Visible cracks or breaks in the plastic
• Difficulty in securing the bin front to the door bin

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement 10-32 x 1 machine screw used to fasten appliance components. It restores secure mounting of panels, brackets and hardware so parts stay aligned and vibration or rattling is reduced. What it does:

• Secures panels, brackets, housings and small components to the appliance frame
• Keeps control boards, motors or assemblies held firmly in place
• Prevents loose parts that can cause vibration, noise or intermittent connections
• Matches the OEM thread and length for proper fit when replacing a worn or missing screw

• Disconnect power before working inside the appliance
• Use the correct 10-32 driver or bit to avoid stripping the head
• Thread into the original hole and tighten snugly; avoid over-torquing
• Replace with the same size and thread type to ensure proper fit and safety

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal

This door lower hinge bushing installs in the bottom of the refrigerator door and rides on the hinge pin to create a smooth pivot point. Replacing a worn bushing restores proper door alignment, quieter movement, and reliable sealing.

• Provides a bearing surface between the lower hinge pin and the door
• Helps maintain door height and alignment for consistent gasket contact
• Common symptoms: door sagging or rubbing, squeaks, hard opening/closing, or door not closing flush
• Reduces hinge friction and wear at the bottom pivot

• Disconnect power; if applicable, turn off water to the door
• Remove door contents, support the door, and remove lower hinge hardware; lift door straight up
• Pull the old thimble from the door bottom and press the new bushing fully into place
• Reinstall the door, tighten hardware, and verify alignment and gasket seal
