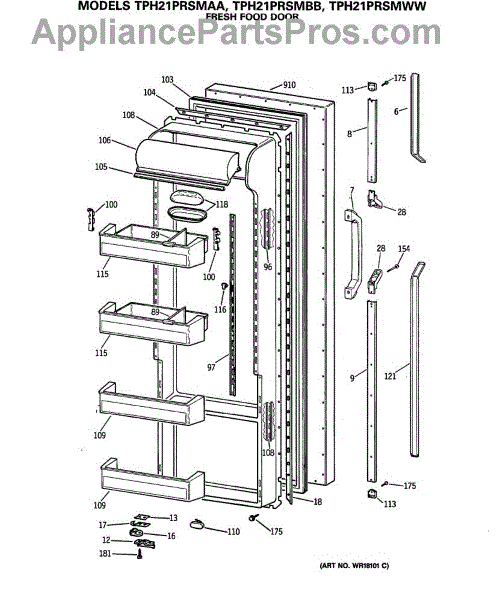

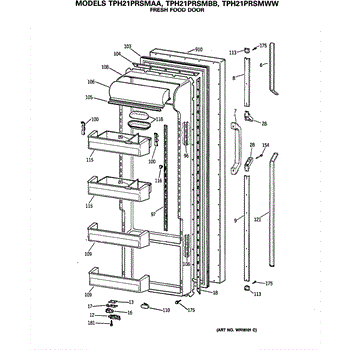

Parts for Ge TPH21PRSMBB: 02 - Fresh Food Door Parts

Restore smooth, reliable door movement. This hinge cam riser fits at the lower door hinge to provide the lift and ramp action that helps the refrigerator door open/close smoothly and seal properly—reducing sag, noise, and poor sealing. What it does:

• Interfaces with the lower hinge pin to lift and guide the door during opening and closing
• Helps maintain door alignment and gasket contact for a proper seal
• Can reduce door sag, scraping, wobble, and clicking/popping noises
• Common signs it's worn: door drops or binds, won't stay closed or self-close, or shows an uneven gap

• 1 hinge cam riser

• Disconnect power and remove items from the door before servicing
• Support the door; remove the top hinge cover and screws, then lift the door off the lower hinge
• Remove the old riser at the lower hinge and install the new riser in the same orientation
• Reinstall hinges; verify gasket contact and door alignment, adjusting leveling if needed

The Riser Cam Shim is an OEM part for GE refrigerators. This part helps in aligning and leveling the refrigerator door, ensuring it opens and closes smoothly.

Causes of a bad riser cam shim can include regular wear and tear, damage from repeated door openings and closings, or deformation from improper installation.

Symptoms of a bad riser cam shim include:

• The refrigerator door not closing properly
• Difficulty in opening or closing the door
• The door appearing misaligned
• Reduced cooling efficiency due to an improper seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: clear. Measures about 16 inches wide by 7 inches high.

A stainless-steel #6-20 screw (1/2" length) used to fasten appliance panels and components securely. Durable corrosion-resistant finish helps maintain a tight fit and long-lasting hold in wet or humid areas. What it does:

• Fastens trim, brackets, panels, and internal components where a #6-20 x 1/2" screw is specified
• Provides a corrosion-resistant connection for areas exposed to moisture
• Restores loose or missing fasteners that cause rattling or misalignment
• Matches OEM thread and length for proper fit and function

• One stainless steel #6-20 x 1/2" screw

• Turn power off and unplug appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when the component is snug and aligned
• Replace any additional damaged fasteners with matching OEM screws
