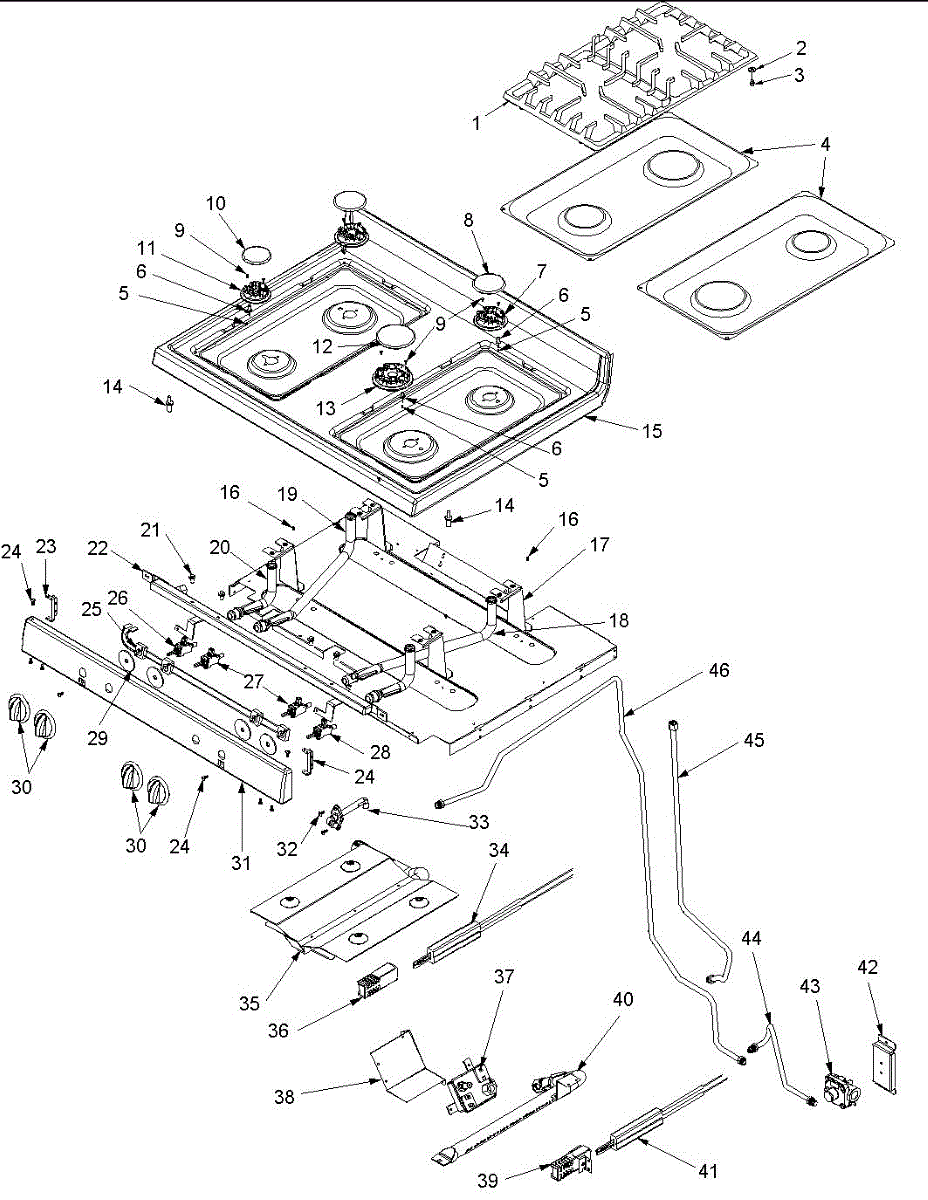

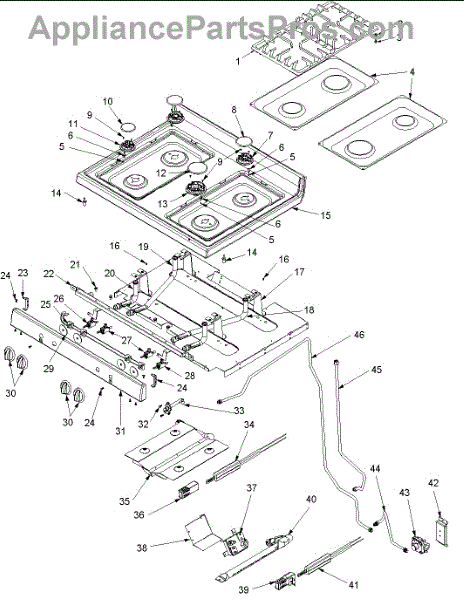

Parts for Amana ACF3375AB / PACF3375AB3: 03 - Maintop And Gas Supply Parts

The Foot Pad Kit for Whirlpool ranges is an OEM part specifically designed to fit underneath the grates. These small but critical components provide cushioning and stability for the grates, preventing them from scratching the cooktop surface and reducing noise and movement during cooking.

Symptoms of worn or missing Foot Pads include:

• Grates that wobble or shift during use
• Increased noise, such as rattling or scraping, when moving pots and pans
• Scratches or other damage to the cooktop surface beneath the grates
• Uneven cooking surfaces which can affect the stability of cookware

Causes of degradation in foot pads can include high heat exposure, frequent cleaning that wears down the material, or the natural breakdown of rubber or silicone over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a double burner bowl. It is black in color.

The Top Burner Igniter is an OEM part for Whirlpool gas ranges. This igniter is responsible for generating the spark needed to ignite the gas burner, ensuring efficient and reliable cooking performance. It plays a crucial role in the overall functionality of the stove, enabling the burners to light quickly and safely.

Causes of a bad top burner igniter can include wear and tear from regular use, buildup of food or grease that affects its operation, damage from cleaning, and electrical issues such as power surges or faulty wiring.

Symptoms of a bad top burner igniter include:

• Burners not lighting or taking a long time to ignite
• Weak or no spark visible at the igniter
• Clicking sound without ignition
• Uneven flame or burners not staying lit

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Medium top burner for gas cooktops that provides a mid-range 9,000 BTU flame, restoring even heat for everyday cooking. Ideal when the original burner is cracked, clogged, or not igniting reliably. What it does:

• Replaces a damaged or worn medium burner to restore consistent, even heat across the cooking surface.
• Provides a mid-range flame output for simmering, boiling, and general-purpose cooking.
• Improves ignition and flame stability when the existing burner lights weakly, unevenly, or produces noisy flames.
• Helps correct issues caused by clogged ports, warped burner heads, or visible cracks.

• Turn off the gas supply and power to the range before starting any service.
• Remove grates and burner caps, lift the old burner straight up, and seat the replacement burner fully over the valve stem.
• Do not force the burner into place; ensure burner ports are clear and aligned before testing.

Color: Black

6,000 BTU. Color: Coal matte black. Measures about 2 inches in diameter.

Color: Black. Size: 12K

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This elbow orifice directs gas flow to the burner or hood assembly for proper combustion and performance. It's a small, shaped gas fitting that helps ensure reliable fuel delivery where a right-angle connection is needed. What it does:

• Routes gas through a 90° connection to the burner or hood orifice
• Helps maintain correct gas burner performance and flame stability
• Common replacement when gas flow is restricted, loose, or leaking at the connection
• Used where a straight orifice cannot be installed due to space or alignment

• One elbow orifice (#54 hood) fitting

• Turn off gas supply and power to the appliance before starting work
• Verify the correct orifice size and seating before reassembly; use proper thread sealant rated for gas if required by OEM
• If you detect any gas odor after installation, stop.

The Oven bake Igniter is an OEM part for Whirlpool ovens. It is a crucial component that ignites the gas to create the flame needed for baking and broiling. By heating up to the necessary temperature, it allows the gas valve to open and ignite the gas, ensuring the oven reaches and maintains the desired cooking temperature.

Causes of a bad igniter can include electrical failures, wear and tear over time, or damage due to repeated heating cycles. An igniter can also degrade if exposed to food spills or cleaning chemicals.

Symptoms of a bad igniter include:

• Oven not heating up
• Delayed ignition or no ignition at all
• Weak or intermittent flame
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven bake Igniter is an OEM part for Whirlpool ovens. It is a crucial component that ignites the gas to create the flame needed for baking and broiling. By heating up to the necessary temperature, it allows the gas valve to open and ignite the gas, ensuring the oven reaches and maintains the desired cooking temperature.

Causes of a bad igniter can include electrical failures, wear and tear over time, or damage due to repeated heating cycles. An igniter can also degrade if exposed to food spills or cleaning chemicals.

Symptoms of a bad igniter include:

• Oven not heating up
• Delayed ignition or no ignition at all
• Weak or intermittent flame
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This OEM Replacement Part is an Adhesive designed for use in high-temperature areas of your Whirlpool appliances. Approximately 7.5 inches long, this white adhesive is suitable for securing parts such as grate feet, gaskets, and felt seals. It is especially useful, particularly in hot zones like a cooktop. The heat-resistant properties of this adhesive ensure that the bond integrity remains uncompromised even under high-temperature conditions.

Contained in a 3oz bottle, this adhesive forms a resilient bond between various components. It is commonly used in conjunction with gaskets, felt seals, and rubber feet. The RTV high temp silicone adhesive/sealant guarantees the safety and longevity of your appliance by ensuring a secure fit of parts exposed to high heat.
