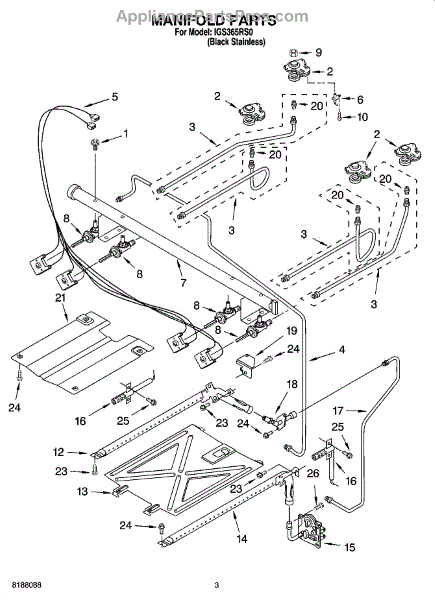

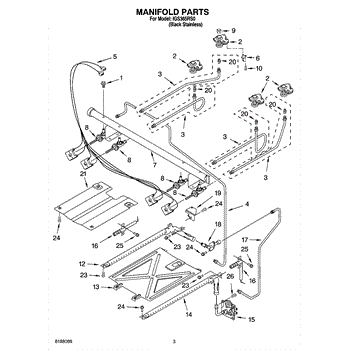

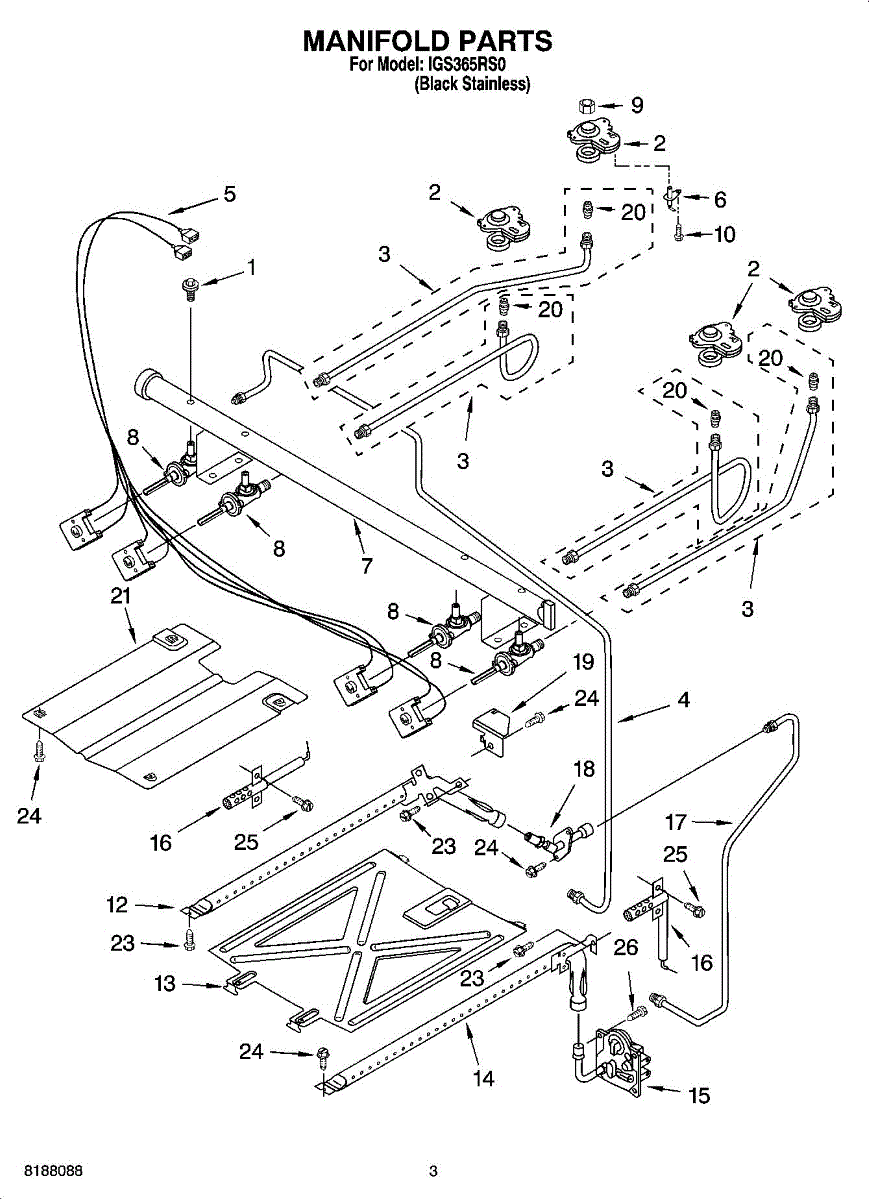

Parts for Whirlpool IGS365RS0: 03 - Manifold Parts

Screw for gas ranges and ovens. Used to secure panels, brackets, or internal components. Replace if lost, stripped, or corroded during repairs.

Burner base for gas ranges that directs gas to the burner head and holds the orifice. Replace if cracked, rusted, or broken to restore proper fit.

Replace broken or damaged burner tubing that prevents gas flow to your range burners. This aluminum tube with orifice restores proper flame operation.

Tubing with orifice.

Tubing with orifice.

Tubing with orifice.

If your range controls are unresponsive or work intermittently, this wire harness connects the switch manifold to restore reliable control operation.

Gas burner won't ignite or spark? This surface burner spark electrode generates the spark to light your cooktop burner. Moderate DIY repair.

Controls gas flow to your range's top burner. Replace if the valve stem breaks, knob won't turn, or gas won't adjust properly for simmering or boiling.

If your gas burner won't light or sparks weakly, corroded igniter screws may be the cause. These mounting screws secure the igniter to the burner assembly.

Broiler won't ignite or heat? This broiler burner restores high-heat flame for searing and browning. Fits gas ranges with direct-spark ignition systems.

Replacement oven bake burner for gas ranges with direct spark ignition. Distributes gas evenly under the oven floor. Replace if cracked, corroded, or damaged.

Range oven won't ignite or heat? Gas valve controls gas flow to burners. Common fix when igniter sparks but no flame appears. 10-15 minute repair.

Fix a broiler that won't light or clicks but doesn't ignite. This spark igniter initiates combustion for the upper burner. DIY repair in 10 minutes.

Oven won't heat or smells like gas? This igniter is often the cause. Sparks the gas burner to start heating. DIY repair takes 10-30 minutes with basic tools.

Protective cover that shields the range igniter assembly. Replace if cracked, broken, or missing to protect internal igniter components from damage.

Controls natural gas flow to your range burner for proper flame size and heat. Replace if flame is too high, too low, or uneven. Verify fit with your model.

Burner won't light or flame is too low? This natural gas orifice meters fuel flow to restore proper flame size and reliable ignition on your range.

Natural gas orifice spud that meters gas flow to range burners. Replace if worn, damaged, or converting from LP to natural gas for proper flame control.

Uneven flame or weak burner heat? This natural gas burner orifice meters gas flow for proper flame height. Direct part swap restores safe cooking.

Burner baffle for gas ranges. Sits under the burner cap to distribute flames evenly. Replace if cracked, warped, or corroded for proper heat distribution.

Mounting screw for gas ranges. Secures components and panels in place. Order a replacement if your original screw is lost, stripped, or damaged.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.
