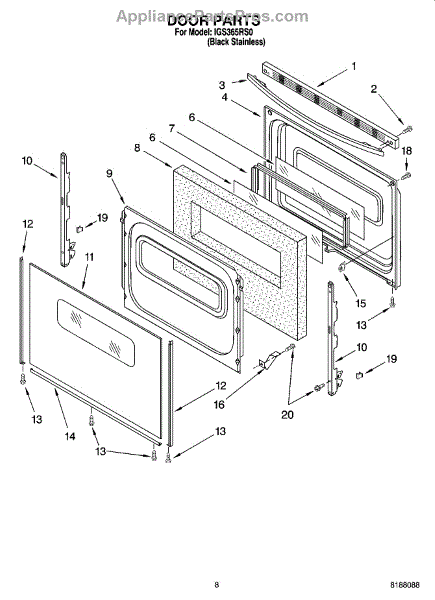

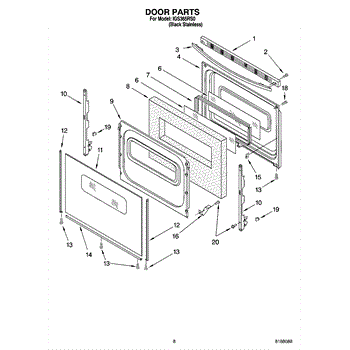

Parts for Whirlpool IGS365RS0: 06 - Door Parts

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lower Trim is an OEM replacement part for Whirlpool ranges. This black stainless steel trim is positioned at the bottom of the range, providing a finished look by covering the gap between the floor and the appliance. Additionally, the lower trim helps to protect internal components from debris and ensures the appliance fits securely within your kitchen setup.

Over time, the lower trim can become damaged due to exposure to heat, accidental impacts, or general wear and tear. A damaged or missing lower trim may lead to the appliance looking unfinished and could allow debris to accumulate underneath.

Symptoms of a bad lower trim include:

• Visible damage, such as dents or cracks
• The trim not fitting securely
• Gaps between the floor and the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This door stop clip mounts at the oven door hinge area to limit how far the door opens. Replacing a bent or missing clip restores the correct stop point and helps protect the hinge from overextension.

• Limits the oven door opening angle to a designed stop
• Helps prevent overextension that can strain or damage the hinge mechanism
• Common symptoms include the door dropping open too far, loose-feeling travel, or difficulty reinstalling the door
• Visual clues: bent, cracked, or missing clip at the hinge area

• Disconnect power or shut off gas; allow the appliance to cool completely
• Support the door; removal may be required to access the hinge area
• Install the clip in the same orientation/location as the original; replace on both hinges if your model uses two
• Verify smooth movement and that the door stops at the normal open position before use

Size: 8-18 x 1/2 inch.

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Size: 25ft, 12 Ga. 150 c Black

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Specs: 25ft,14 Ga., 200 c Brown

This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

Color: White. Size: 13 oz. Spray paint primer. can.

The Oven Liner Touch Up Paint is an OEM part for Whirlpool ovens. This 2 oz warm white touch-up paint is designed to cover minor scratches, chips, and blemishes on the oven liner, restoring its appearance and protecting it from further damage.

Causes of a bad oven liner include exposure to high temperatures, accidental impacts, and abrasive cleaning materials, which can lead to scratches, chips, and discoloration. Over time, these imperfections can worsen, making it necessary to use touch-up paint to maintain the oven liner’s integrity.

Symptoms of a bad oven liner include:

• Visible scratches or chips on the oven interior
• Discoloration or fading of the liner
• Increased difficulty in cleaning the oven liner
• Potential rust or corrosion in affected areas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Kit includes 4 pins.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
