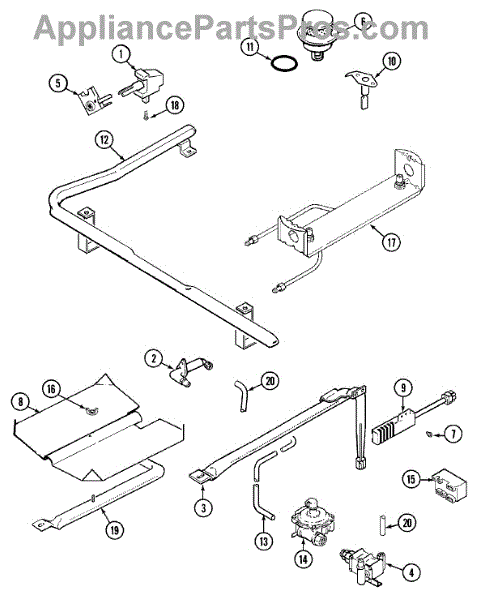

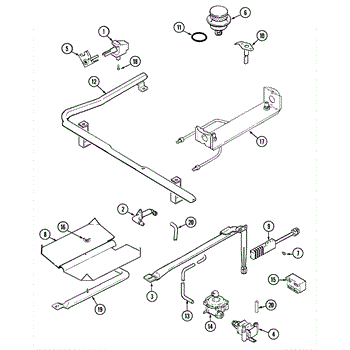

Parts for Admiral CRG9700CGM: 04 - Gas Controls Parts

This surface burner igniter switch mounts on the gas valve shaft and signals the spark module to ignite when you turn the knob. Replacing a worn or stuck switch restores consistent clicking and dependable lighting of the cooktop burners.

• Closes the ignition circuit as the knob is turned from OFF, triggering spark at the surface burners
• Typical symptoms: no spark/click at a burner, intermittent ignition, or continuous clicking when knobs are off
• Fits over the valve stem and connects to the spark harness

• Disconnect electrical power and shut off gas before servicing
• Remove the knob and access the control panel/top to reach the valve switch
• Note wire positions; transfer connectors one at a time and align the switch correctly on the valve shaft
• Test for proper spark at each burner before reassembly

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-24X5/16-NI

The Flat Style Oven Igniter Kit is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up or taking a long time to reach the desired temperature.
• A noticeable gas smell when the oven is turned on, indicating the gas is not igniting.
• The igniter glowing without producing a flame, which can point to a lack of adequate temperature to ignite the gas.

Causes of a bad oven igniter can include the wear and breakdown of the igniter element over time, a faulty electrical connection, or a disruption in the gas supply.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued and is no longer available. This gasket is no longer needed.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
