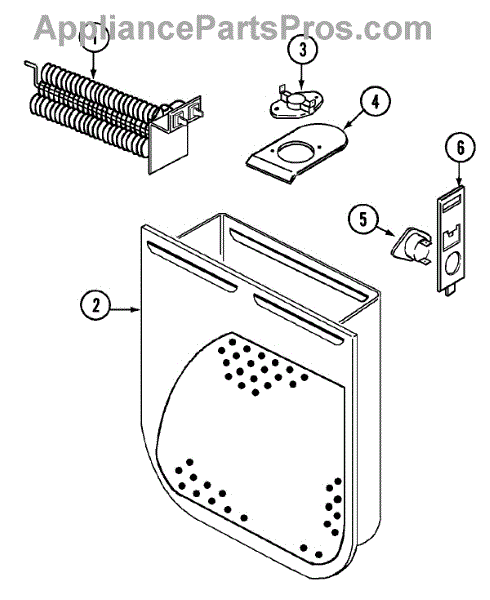

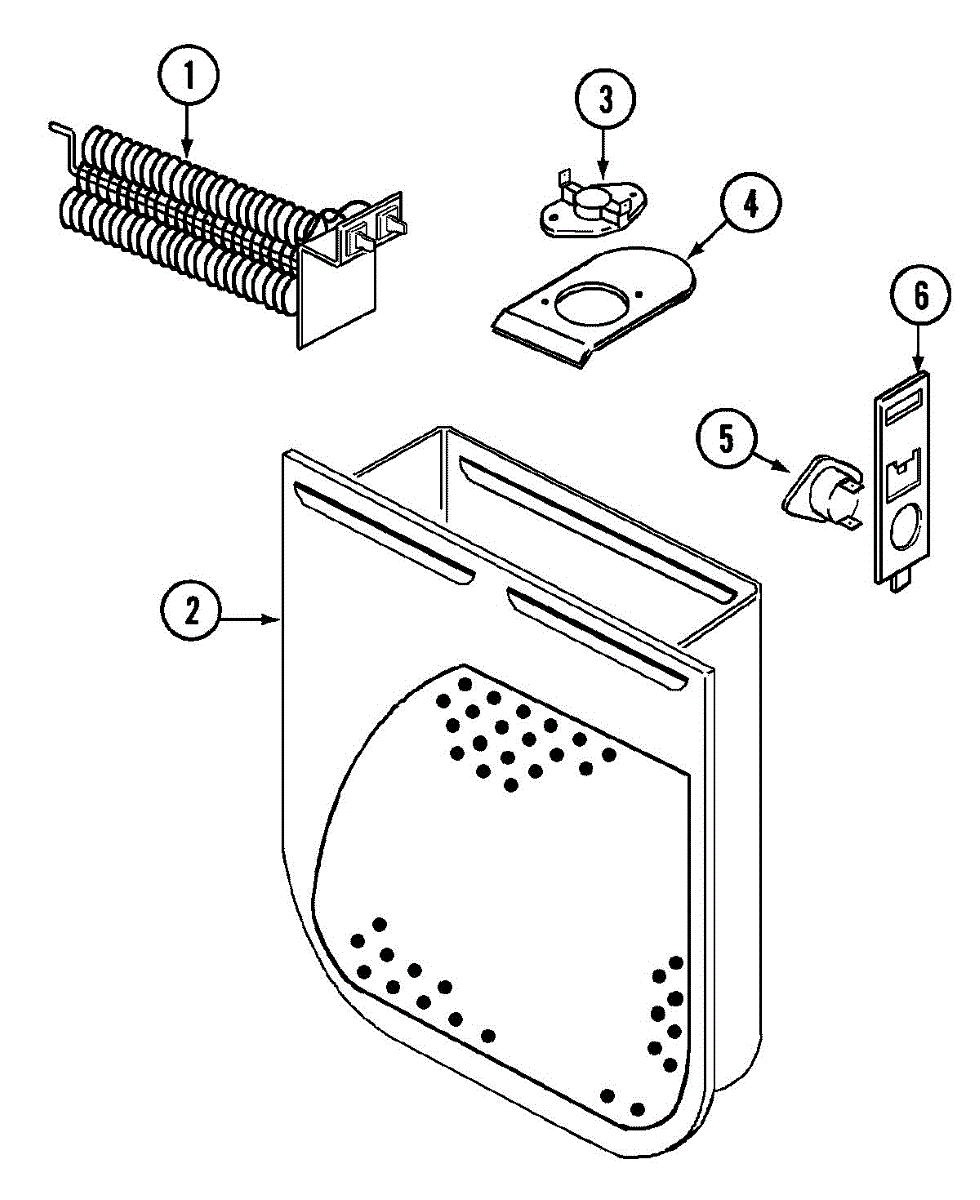

Parts for Admiral ADG7000AWW: 06 - Heater Parts

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

A high-limit thermostat that stops the dryer's heating circuit if internal temperatures get too high, helping prevent overheating and protecting heating components. Replaces a failed high-limit thermostat to restore overheat protection. What it does

• Opens the heating circuit when dryer temperature exceeds the thermostat set point to prevent overheating.
• Commonly related symptoms: dryer runs but produces little or no heat, dryer gets unusually hot, or the thermal cutoff repeatedly fails.
• Works as part of the dryer's temperature-safety system to protect heating elements, fuses, and internal wiring.

• One high-limit thermostat

• Disconnect power before accessing the dryer and work only after panels are cool.
• Take a photo or label wires before removal to ensure correct reconnection.
• Test the thermostat for continuity with a multimeter to confirm failure before replacing.
• If other safety devices (thermal fuse, cycling thermostat, element) show symptoms, inspect and test those components too.

The Thermal Fuse is an OEM part for Whirlpool dryers. This part prevents the dryer from overheating by cutting off power to the heating element if the dryer exceeds a safe temperature. It helps protect the appliance and home from potential fire hazards caused by overheating.

Causes of a bad thermal fuse can include lint buildup restricting airflow, a malfunctioning thermostat, or excessive load causing the dryer to overheat.

Symptoms of a bad thermal fuse include:

• Dryer not starting
• Dryer not producing heat
• Dryer shutting off mid-cycle
• No power to the dryer despite other electrical components functioning

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
