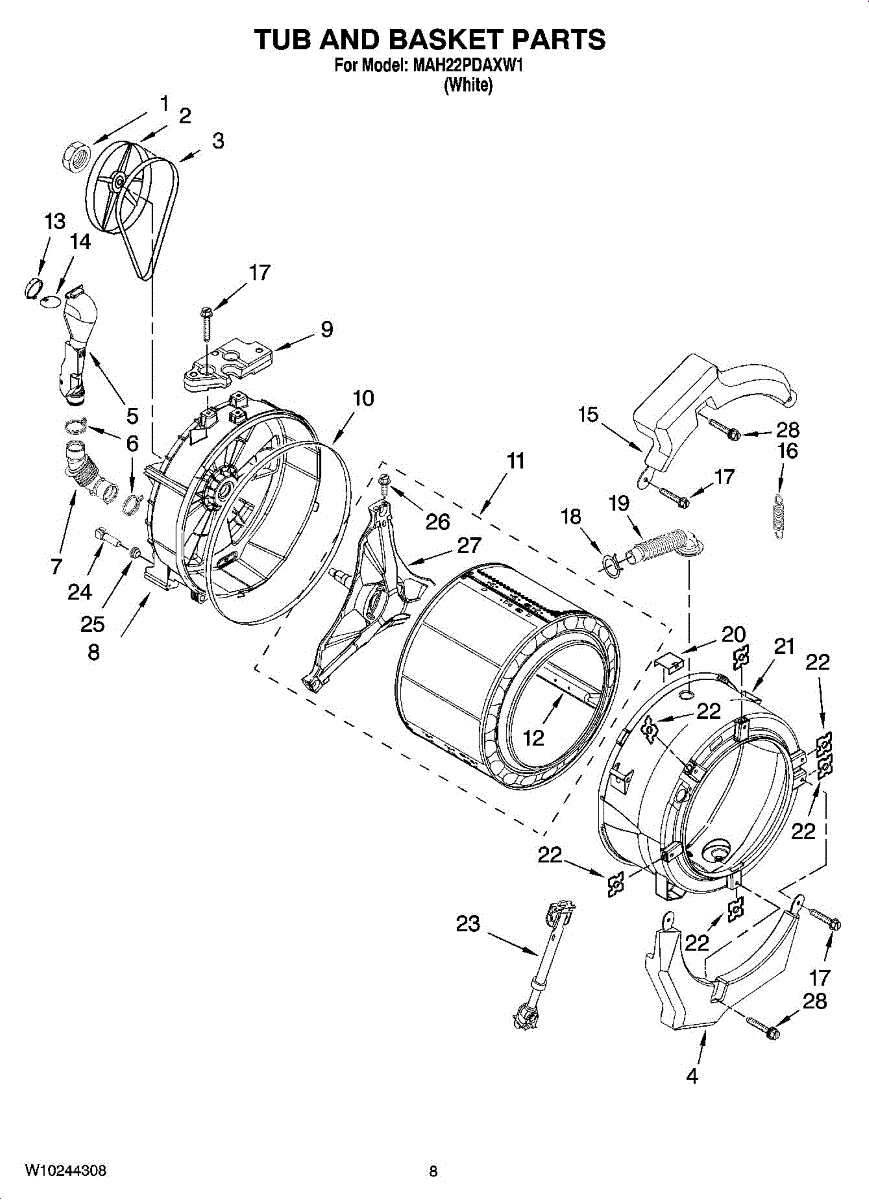

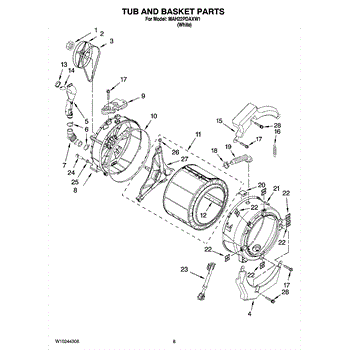

Parts for Maytag MAH22PDAXW1: 06 - Tub And Basket Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This retaining nut secures components within the pump/motor assembly, keeping them tight and properly aligned so your appliance can circulate water reliably. A worn or missing nut can lead to leaks, noise, or poor wash performance.

• Holds pump/motor parts firmly in place to prevent loosening and leaks
• Helps maintain proper water circulation and wash quality
• Direct-fit replacement for the original fastener in applicable units

• Disconnect power and shut off water before servicing
• Access the pump/motor area; note orientation of parts before removal
• Hand-start threads carefully to avoid cross-threading, then tighten to secure
• Inspect related seals and O-rings; replace any damaged components during reassembly

This pulley is part of your appliance's belt-drive system. It provides a smooth, low-friction surface for the drive belt and helps keep it tracking correctly so the motor can transfer power reliably to the drum or tub.

• Guides the drive belt and rotates freely to reduce friction and wear
• Helps maintain proper belt alignment for consistent operation
• Worn pulley symptoms can include squealing/squeaking, grinding or wobble, belt fraying or coming off, and little or no drum/tub movement
• If noise or belt damage persists, inspect the belt, tensioner/idler components, and rollers/bearings

• Disconnect power and, if applicable, shut off gas before servicing
• Access the drive path and note belt routing before removal
• Relieve belt tension, remove the old pulley, and transfer any spacers/retainers as needed
• After installation, spin the pulley by hand to ensure smooth, quiet rotation; replace a worn belt at the same time

This is a drive belt that is part of the internal structure of many washing machines. It works with two different pulleys and a drive motor to ensure the washing machine spins. As the washing machine is used, the drive belt can experience wear and tear. If the drive belt is worn or damaged, it can begin to make strange noises. The drive belt can also come loose or unevenly worn and will need to be replaced.A screwdriver, a wrench, and work gloves may be needed to replace the drive belt. Unplug the washing machine and shut off the cold and hot water valves before moving the washer forward. Remove the back panel by taking out the screws and lifting the panel away. Take the old belt off of the pulleys and install the new belt. Make sure to reassemble the washer and turn on the power and water before use.This part is designed to be used with washing machines manufactured by Maytag and Whirlpool. It is sold as an individual item. The drive belt is an authentic OEM replacement component that is directly sourced from the manufacturer.

This counterweight helps balance and stabilize a refrigerator door so it opens and closes smoothly and stays in the desired position. It replaces a worn or damaged weight to restore proper door operation. What it does:

• Adds counterbalance to a fridge door so it doesn't slam shut or drift open
• Restores even, controlled door movement and alignment
• Helps reduce stress on door hinges and seals
• Commonly replaced when the door feels heavy on one side or won't stay open

• One counterweight

• Disconnect power to the appliance before beginning any repair
• Support the door while removing/installing the counterweight to avoid injury or damage
• Basic hand tools may be required; refer to your service manual for exact steps

Service tub gasket that creates a watertight seal between the washer tub and cabinet. Replaces a worn or damaged seal to help stop leaks and limit water damage around the appliance. What it does:

• Seals the tub opening to prevent water from leaking onto the floor during fill, wash and drain cycles.
• Restores the seal that keeps moisture confined to the tub and reduces mildew buildup at the tub edge.
• Helps eliminate spray and dripping that can occur with cracked, torn or hardened gaskets.
• Supports normal drum/tub operation by maintaining the intended tub-to-cabinet seal.

• Disconnect power and shut off water supply before starting any repair.
• Inspect and clean mating surfaces before installing the new gasket; ensure proper orientation and seating into the groove or mounting channel.
• Use original clamps or fasteners and tighten evenly; replace any missing or damaged mounting hardware before testing for leaks.

This replacement counterweight helps balance and stabilize a refrigerator or freezer door so it opens and closes smoothly and stays properly aligned. It restores correct door movement and reduces sag that can interfere with sealing or latching. What it does:

• Balances the appliance door to prevent drooping and uneven closing
• Helps the door stay open or closed as designed for safer access
• Reduces stress on hinges and latch mechanisms from misaligned doors
• Can eliminate symptoms like a sagging door, difficulty latching, or uneven gaps

What's included: One counterweight. Install notes:

• Disconnect power to the appliance before starting any work.
• Support the door securely while removing/installing the counterweight to avoid injury or damage.
• Installation may require basic hand tools and removal of trim or hinge hardware; follow the OEM service instructions for your model.
• After installation, check door alignment and latch engagement; adjust hinge hardware per manufacturer guidance if needed.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Suspension Spring Kit is an OEM replacement part for Whirlpool washing machines. It contains suspension springs that absorb vibrations and support the weight and movement of internal components like the tub, agitator, and transmission.

Causes of a bad spring kit include wear from years of use, dry rot of rubber components, or damage/breakage incident to an out of balance or overly aggressive load.

Symptoms include:

• Excessive shaking and vibration, especially on higher speed cycles
• Loud banging or knocking noises
• Stress fractures developing in other housing parts over time

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This clamp secures a flexible appliance hose to a fitting to help prevent leaks and keep connections tight. It's a small but essential part that restores a proper seal on water or drain lines. What it does:

• Holds a hose firmly to a tailpiece, barb or connector to reduce leaks and hose slippage
• Helps stop intermittent dripping or pooling caused by loose hose connections
• Restores a proper seal after hose replacement or maintenance
• Works on common appliance water/drain lines where this clamp style is used

• One hose clamp

• Disconnect power and shut off water to the appliance before starting any work
• Allow the appliance and hoses to cool if recently used; use gloves and eye protection
• Use appropriate pliers or a screwdriver (depending on clamp style) to remove and install the clamp; avoid over-tightening
• Inspect the hose and fitting for damage; replace the hose if cracked or worn

The Vent Hose is an OEM part for Whirlpool washing machines. This vent hose allows air to circulate in and out of the washer, preventing pressure build-up and ensuring proper water drainage. It helps maintain the efficiency and effectiveness of the washing machine by facilitating the necessary airflow during the wash and spin cycles.

Common causes of a bad vent hose include wear and tear from regular use, blockages from lint or debris, and damage from mishandling or improper installation.

Symptoms of a bad vent hose include:

• Water not draining properly from the washer
• Unusual noises during the wash or spin cycles
• Leaks or water pooling around the washer
• Visible cracks, splits, or blockages in the hose

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This tub clamp secures a flexible seal or hose to the appliance's tub, maintaining a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop leaks and keep the tub joint stable during operation.

• Applies even clamping pressure around the tub connection
• Helps prevent water leaks at the tub-to-seal or tub-to-hose joint
• Restores proper fit when the original clamp is stretched, stripped, corroded, or missing
• Common symptoms: water at the base/front, loose seal or hose, visible clamp damage

• Disconnect power and turn off water before service
• Access the tub connection; remove the old clamp and inspect the seal/hose for wear
• Clean mating surfaces; seat the seal evenly, position the clamp, and tighten until snug without pinching the rubber
• Run a quick fill/drain test and check for leaks

Kit Includes Front & Rear Outer Tubs with bearing Plus One Gasket. Bearings not available seperate.

Push-in nut that secures panels, trim, or small components to studs or shafts. Restores a firm, vibration-resistant fastener to help stop loose panels and rattling caused by a worn or missing nut. What it does:

• Secures panels, trim or small assemblies to mounting studs or shafts.
• Helps keep parts aligned and reduces vibration or rattling during operation.
• Common symptom: loose or shifting panels, audible rattling, or components that won't stay in place.
• Designed for a push-fit installation to replace worn or missing fasteners.

• Always disconnect power to the appliance before servicing.
• Push the nut fully onto a clean, undamaged stud until seated; replace damaged studs or mounting hardware.
• If needed, use pliers or a socket to press the nut on evenly—avoid deforming surrounding plastic or sheet metal.

This washer shock absorber helps control tub movement during spin and agitation. Replacing a worn damper restores stability, reduces vibration, and helps prevent excessive noise and shaking during cycles.

• Controls suspension movement to keep the tub steady
• Helps reduce banging, walking, and excessive vibration
• Can alleviate loud thumping or rattling during spin
• Supports smoother, quieter operation when shocks wear out

• Unplug washer and turn off water supply before servicing
• Access from front or rear panel varies by model; support the tub to relieve tension
• Replace in matched positions; some washers use multiple shocks
• Each end is fully seated and locked before reassembly

The Water Temperature Sensor is an OEM part for Whirlpool washing machines. This sensor ensures the water is reaching the proper temperature at each stage of the wash cycle. Note: The sensor does not include the seal WP8540766. Order separately if needed.

Causes of a bad temperature sensor can be failures over time due to mechanical wear, thermal stress on electronic components, or damage from leaks/flooding inside the unit.

Symptoms of a bad water temperature sensor include:

• Inability to switch between wash steps or advance through the cycle
• Erratic or inconsistent temperature readings
• Failure alarms or error codes displayed
• Improper or incomplete washing even on high heat settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber seal fits around the water temperature sensor where it passes through the tub or housing. It restores a watertight barrier at the sensor port to help prevent leaks and ensure reliable temperature feedback.

• Creates a watertight seal around the temperature sensor
• Helps prevent drips or leaks from the sensor opening
• Supports stable, accurate temperature readings during cycles
• Typical failure signs: cracked, flattened, or brittle seal; moisture at the sensor area; pooling water beneath the unit; temperature-related faults

• Disconnect power and turn off water supply before servicing
• Access the sensor location and drain any remaining water
• Withdraw the sensor, remove the old seal, and clean the seating surface
• Lightly moisten the new seal with water, seat it fully, reinstall the sensor, and check for leaks during a test cycle
