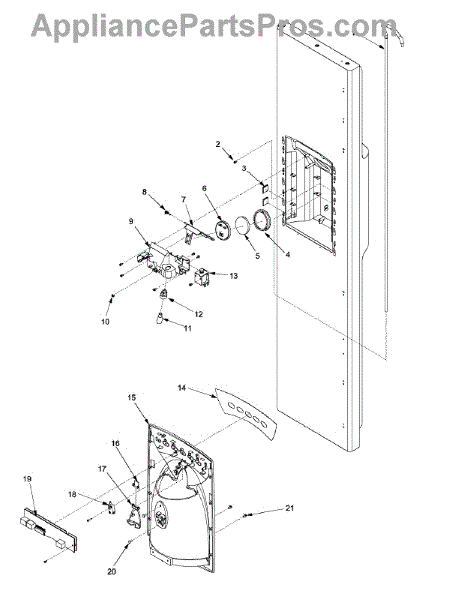

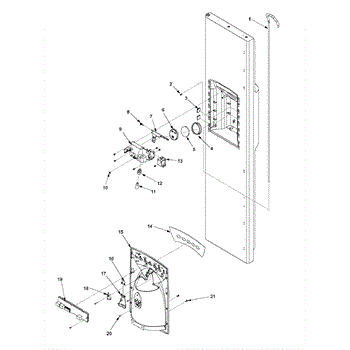

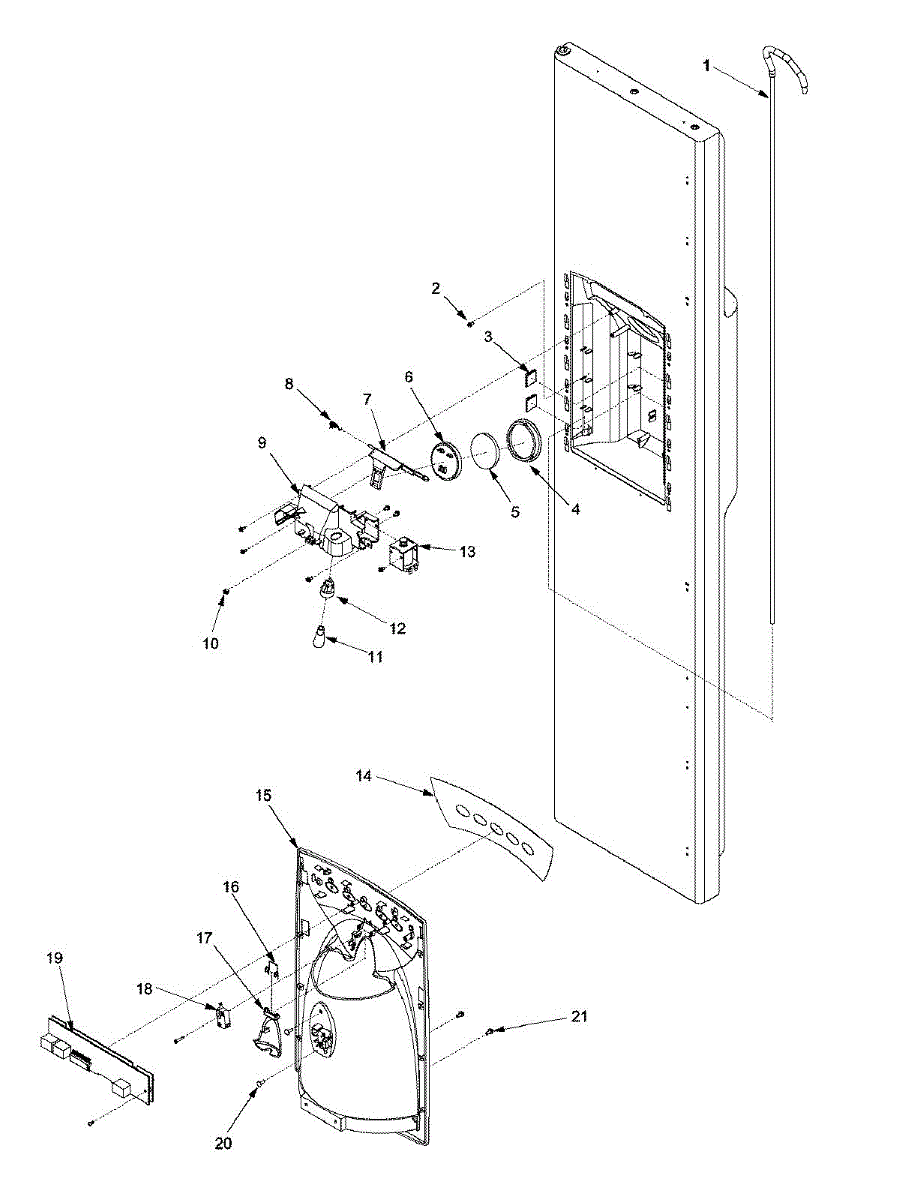

Parts for Amana XRSS267BB / PXRSS267RBB1: 07 - Fz Door And Facade Parts

This waterline assembly supplies water from the household line to the refrigerator's ice maker and/or water dispenser, restoring reliable water flow and preventing leaks from damaged tubing. Ideal when the fridge isn't filling or water is leaking. What it does

• Carries water from the home supply to the refrigerator ice maker/water dispenser
• Replaces cracked, pinched, or leaking tubing that causes visible leaks or puddles
• Restores normal fill to the ice maker and consistent water flow to the dispenser
• Helps eliminate slow or intermittent fill issues caused by restricted or damaged lines

• One waterline assembly with attached fittings as shown

• Shut off the home water supply and unplug the refrigerator before starting
• Tighten fittings to manufacturer torque—do not overtighten plastic fittings
• Inspect existing connections and replace any damaged shutoff valves or connectors
• After installation, turn water back on and check all connections for leaks; flush line per manufacturer instructions

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

The Ice Chute Door is an OEM replacement part for Whirlpool side-by-side refrigerators. It provides access to the dedicated ice and water storage and dispensing compartment located on the refrigerator door.

Causes of a faulty chute door can include normal wear from frequent use. Internal temperature fluctuations may cause durability issues over several years.

Symptoms of problems include:

• Failure to fully close or form a tight seal
• Difficulty dispensing ice or water due to door misalignment
• Premature cooling loss from unsealed opening
• Physical damage preventing proper closing

This OEM door is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerators.

The Ice Chute Door Spring is an OEM part for Whirlpool refrigerators. This part returns the ice chute door to its closed position after ice has been dispensed, ensuring the door remains sealed to maintain proper temperature and efficiency.

Causes of a bad ice chute door spring can include wear and tear over time, corrosion from exposure to moisture, or damage due to repeated use or mishandling.

Symptoms of a bad ice chute door spring include:

• The ice chute door not closing properly
• Ice or frost buildup around the ice chute
• Warm air entering the freezer compartment
• Difficulty in dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This small plastic waterline clip secures the refrigerator/dishwasher water tube to the cabinet or frame to keep the line routed and stable. It prevents the waterline from shifting or rubbing against components. What it does:

• Holds the water supply tube in place to prevent chafing and movement
• Helps keep the waterline aligned so fittings stay seated and leak risk is reduced
• Stops rattling or vibration noise caused by loose tubing
• Commonly used where the waterline passes through panels or along the appliance frame

• One waterline clip

• Disconnect power and shut off the water supply before servicing
• Typically snaps onto a flange or frame and the tubing pushes into the clip—no special tools required
• Inspect tubing and fittings for damage when replacing the clip; replace any compromised tubing or seals
• If access is limited, remove the necessary trim or panel per your model's service instructions

Size: 8-32 x 1/4 inch.

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

A white plastic button plug that replaces a missing or damaged control-panel button cover. Restores the panel's appearance and helps keep the control area cleaner for reliable button use. What it does:

• Replaces a cracked, broken, or missing control-panel button plug
• Covers unused or damaged button openings to improve appearance
• Helps reduce dirt and moisture entry around the button area
• Snap-in design restores a flush, finished look to the control panel

• Typically snaps into the control panel—press evenly until fully seated
• No specialized tools required in most installations
• Disconnect power to the appliance before servicing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles
