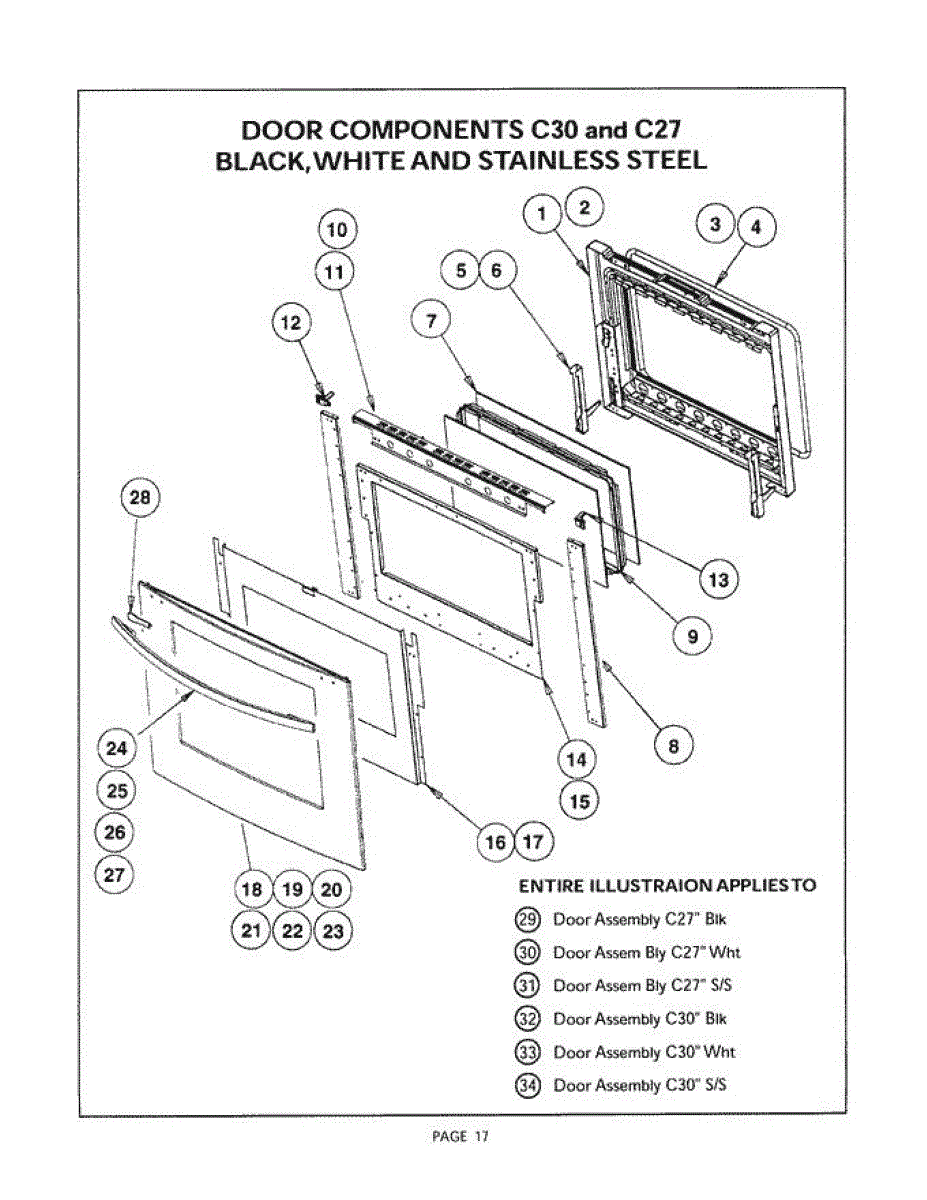

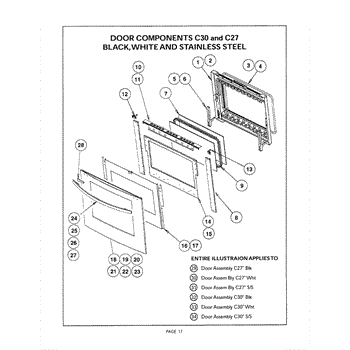

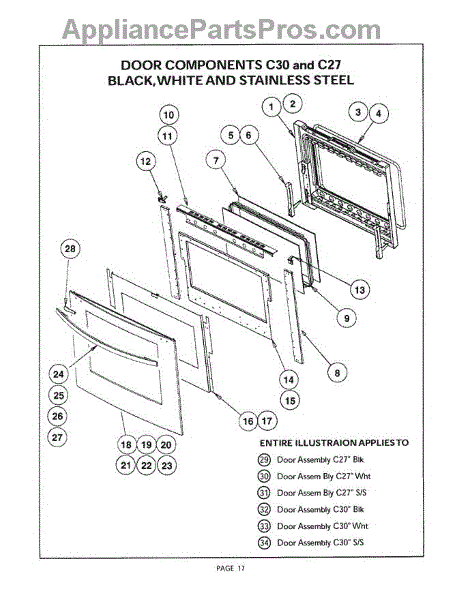

Parts for Thermador C272U: 16 - Door Parts

The oven door gasket is the heat-resistant seal around the 30-inch oven cavity. It helps the oven reach and hold temperature, preventing heat and steam leaks, and replaces a worn or damaged seal for consistent baking results.

• Seals the door-to-cavity gap to limit heat and moisture loss
• Restores proper door compression to help maintain accurate temperatures and normal preheat times
• Replaces gaskets that are torn, frayed, flattened, brittle, or stretched
• Common symptoms: hot air or steam escaping at door edges, temperature fluctuations, longer cook times, or a door that no longer closes snugly

• Disconnect power and allow the oven to cool completely before servicing
• Open the door and remove the old gasket, noting seam orientation and where the ends seat
• Clean the mating surfaces; install the new gasket with the seam at the bottom center, seating the ends fully into the factory holes/retainers without overstretching
• Close the door and check for uniform contact around the perimeter

The Oven Door Gasket Kit is an OEM replacement part for 27" Bosch wall ovens. It includes a gasket for insulating the oven cavity while in use and clips to secure it. Over time, heat and compression can break down gasket material allowing potential leaks of hot air from the oven during cooking or difficulty closing the door. Causes involve standard wear from repetitive door closing as well as exposure to high oven temperatures over many heating cycles.

Symptoms of failed gaskets include:

• excessive heat escape from the door opening
• Door locking difficulties
• visible cracks or tears in the gasket materials

Replacing the gasket allows for smooth door movement and an tight seal when closed. This Bosch part can also be used on Thermador and Gaggenau appliances.

This a Thermador oven door hinge.

This is a replacement glass panel for the appliance's front panel. It restores a clean, durable surface and helps protect the components behind it when the original glass is cracked, chipped, or shattered.

• Forms the exterior glass surface on the appliance's front panel
• Helps shield underlying components from spills and impacts
• Restores proper fit and appearance when the original glass is damaged
• Common symptoms: visible cracks/chips, shattered glass, loose or rattling panel, missing glass

• Disconnect power; also shut off gas before servicing
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Support the door or front panel during removal to prevent stress or drops
• Transfer and reuse existing trim, logos, gaskets, and hardware as designed; do not overtighten fasteners

This left-side door end cap replaces the damaged or worn trim piece at the edge of the appliance door, restoring a finished appearance and helping keep the door seal and adjacent trim aligned. Fits the factory left-hand end position and matches original black finish. What it does:

• Covers and protects the outer edge of the door where the hinge/trim meets the panel
• Restores finished look and helps prevent dirt or moisture intrusion at the door edge
• Replaces cracked, broken or missing left-side end cap that can snag or catch
• Matches the original part shape and mounting points for a direct fit

• Intended for left-side door end position only; confirm left/right before ordering
• Basic trim removal and reinstallation required; keep fasteners and clips for reuse if possible
• Power off and unplug the appliance before performing any door repairs to avoid injury
• Inspect adjacent trim and fasteners during install; replace any damaged clips for secure fit

This replacement door handle restores a secure, easy-grip opening for compatible appliances and keeps the exterior looking finished. Designed to match the original fit and appearance in black C27 size. What it does:

• Provides a solid grip to open and close the appliance door
• Replaces a cracked, loose, or cosmetically damaged handle
• Restores proper clearance and alignment for the door front
• Helps prevent accidental drops or slippage when opening

• Remove power or unplug appliance before starting any repair when applicable
• Use appropriate hand tools and keep fasteners for reuse unless replacement fasteners are supplied
• Handle mounting may require removing the door trim or screws—refer to your model-specific service instructions
