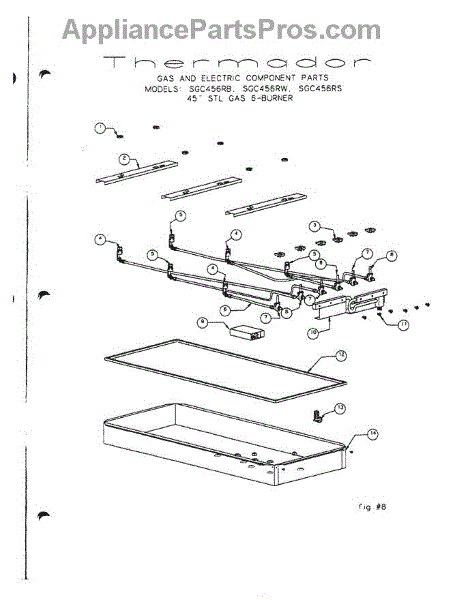

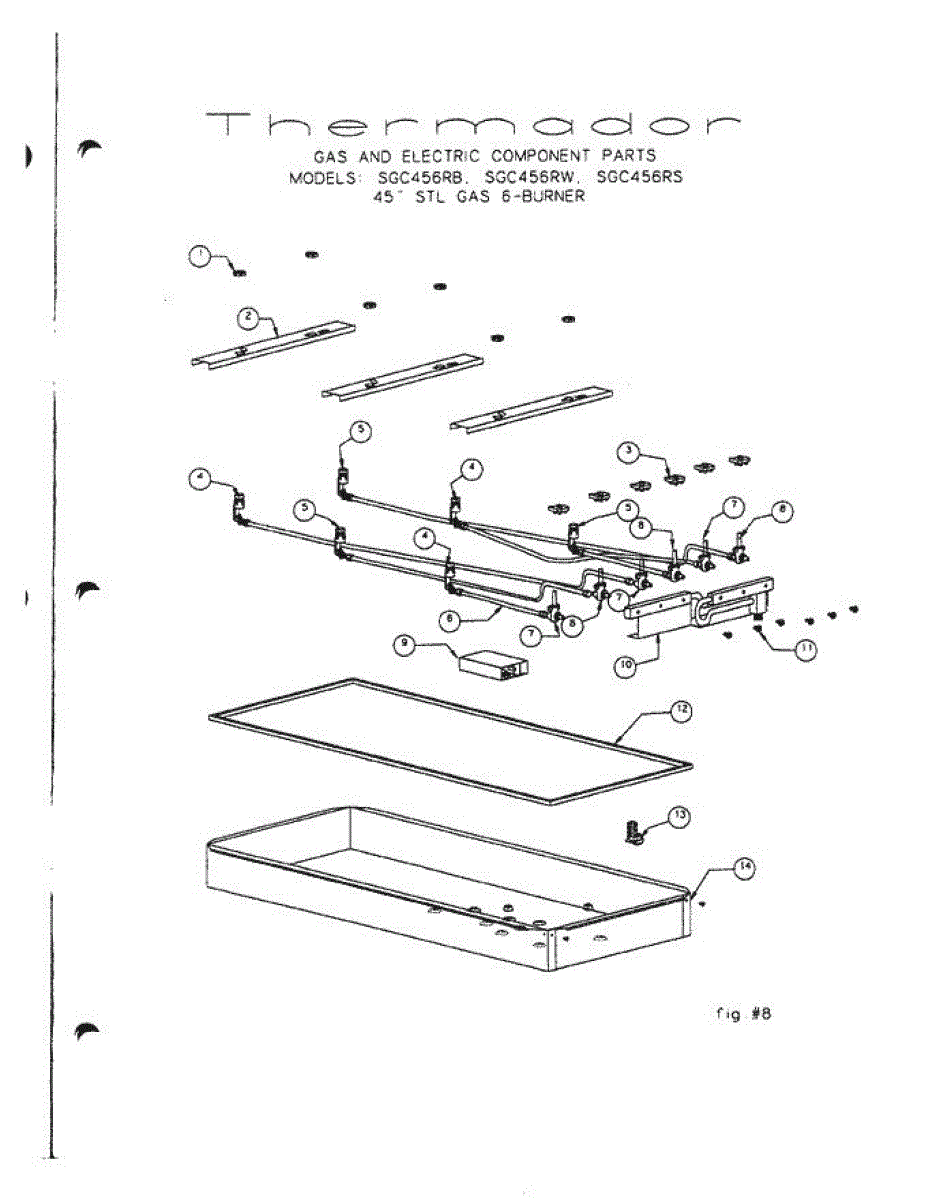

Parts for Thermador SGCS456RS: 16 - Gas And Electric Component Parts

Brass nut secures the jet holder assembly on gas ranges and cooktops. Replace if stripped, corroded, or damaged during burner maintenance or repair.

Mounting bracket that secures double burner assemblies to your gas cooktop frame. Replace if cracked, bent, or missing to properly support burner units.

Fix continuous clicking or burners that won't light with a faulty spark switch assembly. This igniter switch sends spark pulses to gas burners. Moderate difficulty repair.

Secures the burner orifice in position to deliver the correct gas jet size for your 12,500 BTU natural gas burner. Replace if cracked, broken, or missing.

Jet holder with nut for gas cooktops and ranges. Holds the orifice that controls gas flow to each burner. Replace if cracked, corroded, or damaged.

Fixes burners that won't ignite or spark continuously. This spark module generates the high-voltage needed for gas ignition. DIY repair, 1-2 hours.

This gas manifold assembly routes fuel from the range's supply to individual burner valves so burners heat reliably. Replaces a worn or damaged manifold to restore proper gas flow and consistent burner operation. What it does:

• Distributes gas evenly to each cooktop/range burner via the valve ports
• Helps maintain correct burner ignition and consistent flame performance
• Can fail and cause burners not to light, weak flames, or uneven heat
• Works with the appliance's gas valves and regulator to control fuel flow

• Turn off gas supply and electrical power before starting work
• Only install and follow OEM diagram
• Tighten connections to recommended torque and check all fittings for leaks with a soap solution or approved leak detector
• If you smell gas, stop immediately, ventilate the area.

Cooktop won't power on or has intermittent electrical issues? This terminal block with strain relief connects power supply wiring to your appliance.
