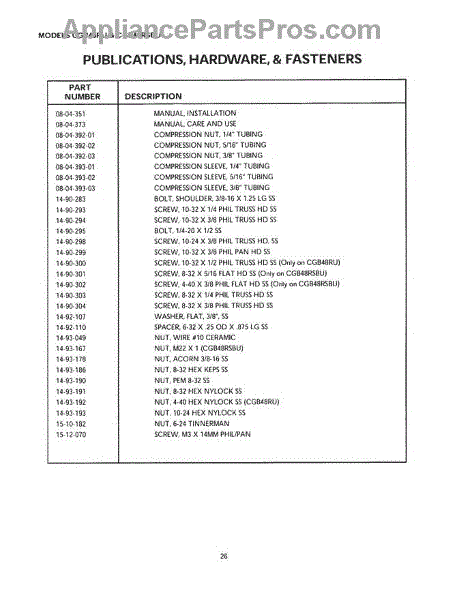

Parts for Thermador CGB48RSBU: 26 - Publications, Hardware, Fasteners Parts

This compression sleeve seals 3/8-inch refrigeration or water tubing where a compression fitting is used, restoring a tight, drip-free connection. It's a simple replacement to stop leaks and ensure a secure joint. What it does:

• Acts as the ferrule inside a compression fitting to compress against tubing and create a seal
• Restores a worn or flattened sleeve that causes leaks at nuts or fittings
• Used with a matching compression nut and fitting to secure 3/8" tubing
• Commonly replaced when connections leak, weep, or fail to hold pressure

• One compression sleeve sized for 3/8 in. tube

• Turn off and depressurize the system (water or refrigeration) before removing fittings
• Cut tubing square and deburr before installing the sleeve for best seal
• Slide the nut then the sleeve onto the tube, seat against the fitting, and tighten to manufacturer torque
• Inspect the joint for leaks after pressurizing and retighten if needed; replace sleeve if damaged during installation

This compression nut secures 3/8 in. refrigeration or water tubing to a matching compression fitting, creating a tight mechanical seal for supply lines. It's a simple, serviceable fastener used on valves and pipe connections. What it does:

• Threads onto a compression fitting to hold ferrule and tubing in place
• Helps create a leak-resistant joint on 3/8 in. tubing connections
• Commonly used on water supply, ice maker, or refrigeration line fittings
• Replaces a worn or damaged nut that causes loose or leaking connections

• Turn off water or power to the appliance and relieve system pressure before servicing
• Hand-start threads to avoid cross-threading; tighten snugly with appropriate wrenches
• Inspect ferrule and tubing; replace ferrule or cut tubing square if reusing connection
• If you see persistent leaks after tightening, stop and check components.

This is a compression nut for 5/16-inch tubing. It secures the tubing to a compatible compression fitting to create and maintain a tight, reliable connection.

• Clamps 5/16-inch tubing onto a matching compression fitting when tightened
• Helps restore a secure seal at a leaking or loose compression joint
• Useful when threads are stripped, the original nut is cracked, or the connection won't hold tension
• Common signs include drips at the fitting, inability to tighten, or visible thread damage

• Shut off the supply and allow the system to depressurize before service
• Use appropriately sized wrenches; avoid overtightening to prevent damage
• Inspect the ferrule/olive and tubing end; replace if worn or distorted
• After installation, restore supply and check for leaks at the connection

Replacement 1/4-20 x 1/2 stainless steel bolt that secures appliance components and restores proper fit. Use when mounting hardware is missing, corroded, or loose to stop rattling and maintain alignment. What it does:

• Fastens panels, brackets and other appliance components to prevent movement and vibration
• Replaces missing, stripped, or corroded bolts that can cause loose parts or noise
• 1/4-20 thread with 1/2" length for applications requiring that fit (per part listing)
• Stainless steel construction helps resist corrosion in humid or wet areas

• Disconnect power and water (if applicable) and remove outer panels before servicing for safety
• Start threads by hand to avoid cross-threading, then tighten with the proper wrench or socket
• Do not overtighten; snug until secure and follow manufacturer torque specs if available

This compression sleeve forms the sealing ring for a 5/16-inch tubing compression joint, restoring a watertight connection when used with a matching compression nut and fitting. Ideal for stopping leaks and restoring reliable water lines. What it does:

• Creates the compression seal on 5/16" tubing when installed with a compatible compression nut and fitting.
• Stops leaks or drips at compression-style water connections.
• Used on appliance water lines (ice makers, water inlets) and other 5/16" tubing joints.
• Replaces worn or damaged sleeves that fail to hold a tight seal.

• Shut off the water supply and relieve pressure before working on water lines.
• Inspect and cut tubing squarely; slide the sleeve onto the tube before threading the compression nut and fitting.
• Tighten the compression nut per the fitting manufacturer's instructions and check the joint for leaks.
• Replace the sleeve if damaged or deformed.

Used to hold down the jet holder assembly.
