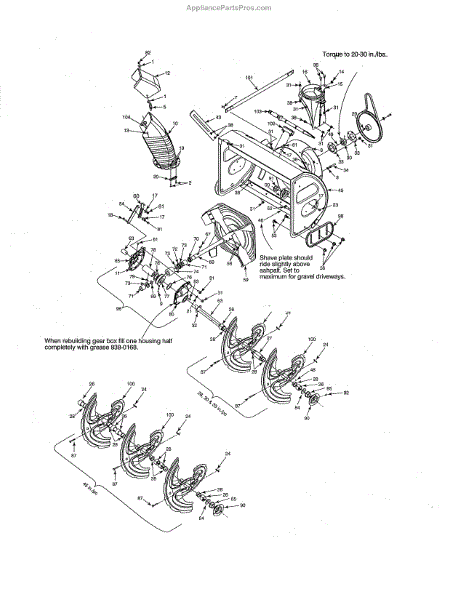

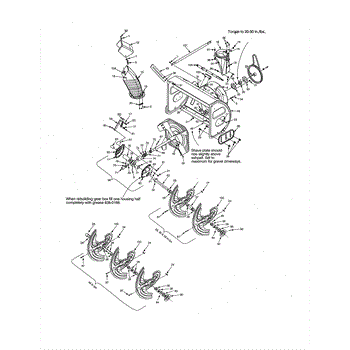

Parts for Yard-Man 31AE9P3I801: Auger & Housing Parts

This hex screw is a genuine MTD part. It is a replacement part for lawn tractors, edgers, lawn mowers, snow blowers, tillers, string trimmers, chainsaws, log splitters, and wood chippers. It is a standard-sized part and it may be compatible with other machines as well.This particular screw is a one-inch metal screw and may be found in various places on the pieces of equipment. Refer to a parts diagram to find out where it is used on the equipment.This hex screw is a genuine OEM part sourced directly from the manufacturer. It is sold individually. Most machines have multiple screws; check others to see if more need replacement. It is compatible with several makes, including but not limited to Bolens, MTD, Troy-Bilt, Yard-Man, Yard Machines, Ryobi, Husky, Cub Cadet, Montgomery Ward, MasterCut, Turf King, and more.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

A cotter pin, also known as a hitch pin, is used to secure pins and shafts in place. Meant for snowblowers, riding lawnmowers, and lawn tractors, this bow-tie shaped cotter pin has a double-end design making it easy to pull or push through either side of a pre-drilled hole. This pin snaps into a locked position without tension, keeping it secure during operation. Designed for lawn and garden maintenance equipment, this part ensures secure fastening. If the power equipment is used frequently, cotter pins may have to be replaced regularly so it would be practical to keep extra bow tie cotter pins on hand. It is highly recommended that work gloves be worn during the installation of this part. This part is compatible with Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut brands of lawn mower, snowblower, and log splitters. This is a genuine OEM replacement part that is sold individually.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This replacement part is a bolt and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This bolt has many different uses and is a versatile part in lawn mowers and power tools. Bolts help other parts of the machine or appliance stay together and in place so that the entire machine is able to run smoothly. A new bolt might be needed if the current one is missing or damaged in any way. It is common for bolts to become stripped overtime due to normal wear and tear and need to be replaced. It's common for users to have some on hand so consider purchasing more than one. This repair should be simple and require no more than a screwdriver and possible pliers if the previous part is stuck. This bolt is sold individually and is a genuine OEM replacement part.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This grease plug is a genuine OEM replacement part sourced directly from the manufacturer. It is found on snowblowers and other outdoor yard machines on the gearcase assembly, which houses the auger gear. The grease plug seals the oil port on the gearbox. This keeps lubrication inside the gearbox and is the access point for adding more when needed. If this plug is lost, the gearbox's oil could leak out, and contaminants could get into the gearbox.Lubricate the contents of the gearbox before installing the new grease plug. Locate and remove the two screws on the side to drain the gearbox. Install the grease plug in the bottom. Refill the oil using the vent hole. Continue filling until oil is coming out the top side screw. Close everything back up, and the machine is ready for use. To prepare the equipment for long storage, remove the grease plug and check the oil level. If it is not to the top, add more lubricant before sealing the grease plug.This grease plug is made of durable black molded plastic and is sold as an individual unit. It is compatible with snowblowers and snow throwers manufactured by Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, and Husky.

This is a genuine OEM gear housing assembly sourced directly from the manufacturer; it is used on snow blowers to protect the components in the gearbox. This solid metal housing prevents the components from being damaged by the elements, debris, and foreign objects. The gear housing assembly also keeps the internal components dry and lubricated by sealing lubricant in and keeping water out.Although the gear housing assembly is a heavy-duty metal part, it is possible that time, heavy use, and the elements can cause damage. If this is found during annual routine inspections, the gearbox housing should be removed and replaced. Before making this repair, remove the fuel from the snowblower and place the machine on a flat surface. Wear protective gloves and goggles. Keep a diagram of the machine nearby for reference as the machine is disassembled to access the gear housing assembly. After removing and replacing the gear housing assembly, reassemble the snowblower, and refill the gas. This gear housing assembly is made of heavy-duty metal and sold as an individual unit. It is compatible with snow blowers and snow throwers manufactured by Craftsman.

This replacement part is a drive shaft. This is a genuine replacement part made by MTD. Driveshafts are an important part of many different kinds of machinery. They often help transfer torque and engine rotation into the vehicle motion when the machine is shifted into drive. A new driveshaft might be needed if the user is unable to start or stop the vehicle. If the power in the movement of the machine is less than normal, be sure to replace the driveshaft as this might be the issue. It is recommended that the engine is completely turned off before attempting to replace this part. Work gloves are recommended when working with any type of part associated with the engine. This drive shaft is a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer.

This oil seal is a genuine MTD part. It is designed as a replacement part for snowblowers. Oil seals do exactly what their name implies: they prevent oil from leaking. They are located on the input and output shafts of the crankshaft of the snowblower.It is not abnormal for oil seals to become worn over time, especially under heavy use. Users may notice oil leaking, especially while using the snowblower, if this is the case. Leaking oil can cause a mess (which can be dangerous) or may seriously damage the engine. Replacing an oil seal is a relatively simple repair, though some disassembly of the engine may be required. The oil seal itself is very small and round.This oil seal is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. There is more than one oil seal on most snowblowers, so check them all before ordering. It is designed for compatibility with machines made by Craftsman, MasterCraft, White Outdoor, Columbia, Yard-Man, Cub Cadet, MTD, Yard Machines, and Troy-Bilt.

This sleeve is a genuine MTD part. It is a replacement part for snow blowers and snow throwers primarily, but is also sometimes utilized on other small engine lawn equipment.Sleeve bearings are very important as they help with linear movements between two parts. They do this by absorbing the friction created by the two other parts, which reduces noise and vibrations. It is normal for them to wear out over time. Increased noise is one way to recognize this problem.This sleeve bearing is a genuine OEM part sourced directly from the manufacturer. It is sold individually. Some machines require more than one sleeve bearing. It is compatible with equipment made by White Outdoor, Craftsman, Mastercraft, Columbia, MTD, Troy-Bilt, Cub Cadet, Yard Machines, Yard-Man, and others.

This part is a replacement thrust bearing. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a broken or defective thrust bearing in outdoor power equipment.Bearings help to reduce friction created by moving parts as well as ensure the equipment functions smoothly and without excessive vibration. Bearings can become worn, corroded, jammed, or otherwise defective, requiring replacement. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this thrust bearing, the appropriate owner's manual and equipment diagrams should be referred to. This thrust bearing is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with small engine outdoor power equipment models that have been manufactured by MTD, Craftsman, and other brands.

This replacement part is a gear. This is a genuine replacement part made by MTD. This part is made with ridges that are able to connect to other parts so that they can turn or spin during use. This transfers energy and force to different pieces in the machine to ensure that the everything is working properly. A new gear might be needed if the current one is struggling to stay attached to other parts. This can be due to the ridges become stripped over time. If this is the case, the gear should be replaced. gears experience large amounts of friction and will need to be replaced after a while. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This replacement part is a housing assembly. It ensures that multiple parts are connected to allow for the engine to run smoothly and effectively during use. A new housing assembly might be needed if the current one is no longer able to stay attached to the machine. This can be due to normal wear and tear over time.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This gear housing assembly is a genuine replacement part that is designed to protect the gears and provide mechanical support so that the gears can work properly. This housing holds the gears and protects them from damage and other risks, as well as providing lubrication for the parts. Over time, the housing can crack or become damaged and it will need to be replaced to keep the gears protected and working properly. This genuine OEM part is manufactured to exact standards by MTD and designed for use in select models of snowblowers to protect the gears during use. It is compatible with models from Yard Man, Troy-Bilt, and Cub Cadet, as well. This part is sold individually and does not include any additional parts or hardware. Be sure to disconnect the power to install any parts, including this gear housing assembly. Wear gloves for hand protection and allow the unit to cool completely before starting work. Do not use a snowblower with a faulty gear housing assembly as it can cause serious damage.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

Note: This is a quantity of 1 shear pin only. For kit of 4 shear pins with retainers, order OEM-738-04155

This grease fitting attaches to the cast pivot bar on many types of garden and lawn equipment. It is made of durable metal and ensures that internal parts of the equipment are lubricated so they operate at their full potential. Sometimes a grease fitting can become worn damaged and need to be replaced.If a lawn tool no longer seems to be properly lubricated, the grease fitting could be the cause. A pair of pliers will be required to make the replacement. Clean the area near the grease fitting and then use a hex wrench to remove it from the machine. Take the new fitting and place it into the hole and tighten it before applying grease.This is a genuine OEM replacement grease fitting that is sourced directly from the manufacturer. The part is sold individually. The fitting is compatible with chipper shredders, lawn tractors, snowblowers, string trimmers, edgers, chainsaws, and lawnmowers manufactured by Yard-Man, Cub Cadet, Troy-Bilt, Craftsman, Ryobi, Murray, Broan, Yard Machines, Huskee, Montgomery Wards, Bolens, MasterCut, and MTD.

This part is a replacement skid shoe. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or defective skid shoe in snow blowers.Skid shoes attach to the snow blower's auger housing in order to enable the equipment to slide easily across the ground. This part is subject to significant wear and tear and thus will require replacement if broken, worn, or detached. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this skid shoe, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This skid shoe can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.
