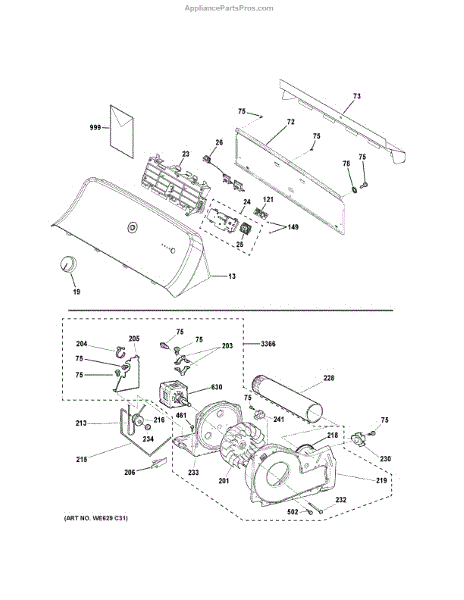

Parts for Ge VTD52EASR0WB: Backsplash, Blower & Motor Assembly Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

The GEA3 Wi-Fi communication board provides the refrigerator's wireless interface so the appliance can connect to your home network and the manufacturer's mobile services. Restores smart features like remote monitoring and alerts when the original board fails. What it does

• Enables the refrigerator to join a home Wi-Fi network for app connectivity and smart features
• Handles wireless communication between the appliance and cloud services
• Works with the appliance's main control system to send/receive settings and notifications

• One GEA3 Wi-Fi communication board (single wireless interface module)

• Disconnect power to the appliance before replacing the board to avoid shock or damage
• Handle the board as an electrostatic-sensitive device; avoid touching contacts and use ESD precautions if possible
• Reinstall per the appliance wiring diagram/service manual and secure all connectors firmly
• After installation, power the appliance and follow the manufacturer's pairing or network setup steps (may require app re-registration)

8-18 hi/lo 5/8

The Blower Wheel is an OEM component specifically designed for GE dryers. It is responsible for circulating air during the drying cycle, directing airflow through lint and clothes to remove moisture. The plastic blades of the blower wheel push air through the dryer and out the vent when the motor is running.

Symptoms of a bad blower wheel include:

• Slow or inefficient drying times even on low moisture loads
• Strange noises from inside the dryer cabinet
• Excessive vibrations felt through the dryer door or cabinet
• Bent or cracked blower wheel blades

Causes can include normal wear and tear over time, accidents that damage the blades, or failures in the secure mounting of the blower wheel.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This idler support bracket holds the dryer idler pulley in the correct position so the drive belt stays routed and tensioned, helping the drum turn smoothly. It replaces a worn or broken bracket to restore proper belt alignment and reduce belt slippage. What it does:

• Secures the idler pulley to the dryer chassis so the drive belt maintains correct tension
• Keeps the belt aligned to prevent rubbing, squealing, or premature wear
• Helps the drum turn freely by maintaining consistent belt routing and tension
• Commonly replaced when the bracket is cracked, bent, or the idler pulley mounting fails

• One idler support bracket

• Disconnect power before starting any repair
• Access typically requires removing the dryer's front or lower access panel; follow model-specific disassembly steps
• Inspect the idler pulley and drive belt; replace any worn components together to ensure reliable operation
• Use basic hand tools; avoid forcing fasteners and follow torque/fastening recommendations in the service manual

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This blower housing channels heated air from the dryer drum to the vent, restoring proper airflow and helping the appliance dry clothes efficiently. It replaces a cracked or damaged housing to reduce air leaks and noise. What it does

• Directs and seals airflow from the dryer drum to the blower wheel and exhaust vent.
• Helps maintain proper drying performance and cycle times by preventing air loss.
• Reduces rattling or scraping noises caused by a damaged housing contacting the blower wheel.
• Can prevent overheating caused by restricted or leaking airflow.

• One blower housing assembly.

• Disconnect power (and gas supply for gas dryers) before starting any service.
• Access may require removing the dryer front or rear panel; follow your model's service instructions.
• Inspect the blower wheel and seals when installing; replace if worn or damaged.

This exhaust duct is a replacement vent connector that routes appliance exhaust air safely away from the unit, helping restore proper airflow and reduce heat buildup. Use it to replace a damaged or missing duct for safer venting. What it does:

• Channels exhaust air from the appliance to the household vent system
• Restores proper airflow when the original duct is cracked, bent, or disconnected
• Helps reduce heat and moisture buildup around the appliance
• Supports safe operation by maintaining a clear exhaust path

• Disconnect power to the appliance before beginning any service
• Confirm orientation and fit with the appliance vent opening before final installation
• Use appropriate clamps or fasteners and ensure a secure, airtight connection
• If venting to the outdoors, verify the exterior vent is clear of obstructions after installation

The Thermostat is an OEM replacement part for GE dryers. It is responsible for regulating the temperature during the drying cycle to prevent damage to your clothes and dryer.

Symptoms of a faulty dryer cycling thermostat include:

• Inconsistent or inadequate heating
• Extended drying times
• Dryer shutting off prematurely

A bad dryer cycling thermostat can be caused by normal wear and tear over time or a malfunction in the thermostat's internal components. If you notice that your dryer is not reaching the desired temperature, takes longer to dry clothes, or shuts off before the cycle is complete, it may be time to replace the old or damaged cycling thermostat with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plate motor drives the microwave/oven turntable, keeping the glass tray rotating for even cooking and heating. Replaces a worn or failed motor to restore tray rotation and reduce uneven heating. What it does:

• Turns the glass turntable so food cooks evenly
• Stops rotation or hesitates when motor fails or wears out
• May make buzzing, grinding, or intermittent noises before failing
• Prevents the turntable from rotating if the motor no longer engages

• One replacement plate (turntable) motor

• Disconnect power before servicing to avoid shock; verify unit is fully powered off
• Remove the turntable glass and roller guide to access the motor underneath the oven/microwave floor
• Typical install requires removing interior fasteners and unplugging the motor connector; retain hardware for reassembly

The Outlet Control Thermistor is an OEM part for GE dryers. This thermistor monitors and regulates the temperature inside the dryer by sending temperature readings to the control board, ensuring the dryer operates at optimal temperatures for efficient drying and preventing overheating.

Causes of a bad outlet control thermistor can include wear and tear from regular use, electrical malfunctions, or exposure to excessive heat.

Symptoms of a bad outlet control thermistor include:

• The dryer overheating or not heating at all
• Inconsistent drying times
• The dryer shutting off prematurely
• Error codes related to temperature issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 t. Includes 12 screws.

This GE Motor Drive and Pulley is an OEM part for GE dryers. The motor drive powers the drum, and the pulley system ensures proper tension and alignment of the belt.

The need for replacement can arise from various factors such as prolonged use, electrical issues, or mechanical wear and tear. A failing motor drive and pulley can significantly impact the dryer's performance.

Symptoms of a malfunctioning Motor Drive and Pulley include:

• The dryer drum struggles to turn or doesn't turn at all.
• Unusual noises like humming or grinding during operation.
• The dryer stops unexpectedly during a cycle.
• Overheating of the dryer motor.
• The dryer takes longer than usual to dry clothes.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Motor and Blower Assembly is an OEM part for GE dryers. This part creates the necessary airflow to circulate hot air and remove moisture from your laundry.

A bad motor and blower assembly can occur due to wear and tear, mechanical failure, or electrical issues. If you notice symptoms such as the drum not spinning, reduced airflow, unusual noises during operation, or the dryer not heating properly, it may be time to replace this assembly.

Symptoms of a bad motor and blower assembly include:

• Drum not spinning
• Reduced airflow
• Unusual noises during operation
• Dryer not heating properly

Restore your GE dryer by replacing the faulty motor and blower assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
