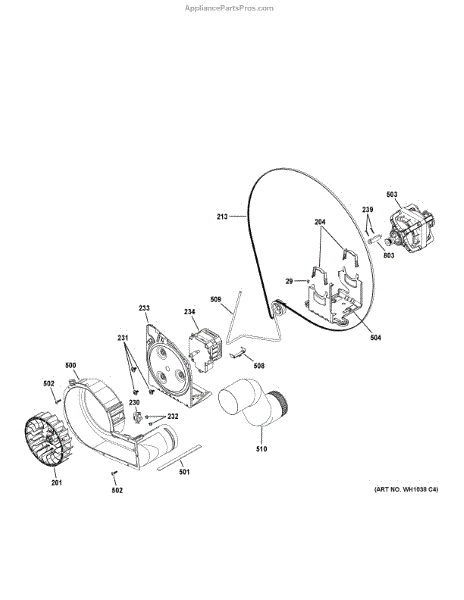

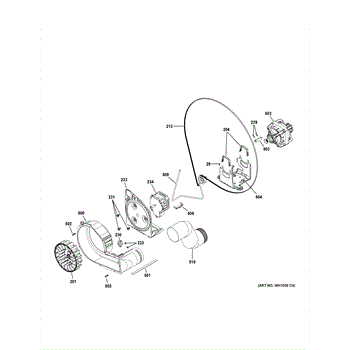

Parts for Ge GUV27ESSM0WW: Blower & Motor Assembly Parts

This replacement blower wheel for a dryer mounts to the drive motor and pulls air through the drum, lint filter, and exhaust, restoring proper airflow so loads dry efficiently and the appliance runs as intended. What it does:

• Spins with the motor to move air through the drum, lint screen, and exhaust duct
• Maintains airflow needed for even drying and temperature control
• Wear, cracks, or a stripped hub can cause long dry times and weak vent airflow
• Damage or imbalance may produce rattling, scraping, or vibration noises from the blower area

• 1 blower wheel

• Disconnect power; turn off gas supply for gas models before servicing
• Access the blower housing and remove the old wheel from the motor shaft per your model's design
• Clean lint and debris from the blower housing and exhaust duct while open
• Seat the new wheel fully and verify free rotation without rubbing before reassembly

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Cycling Thermostat is an OEM replacement part for GE dryers. It regulates heating element output and drum temperature during drying cycles. Maintaining proper air and drum temperatures is key to achieving thorough moisture removal from fabrics within targeted cycle times.

Causes of failure typically involve defects developing over many heat exposure and cool-down cycles. Mineral deposits accumulating on the thermostat head can also impact heat-sensing precision over extended use.

Symptoms of a bad cycling thermostat include:

• Slow or inadequate drying times
• Excessively long cycles for normal loads
• The dryer turning on/off irregularly while operating
• Unpredictable or fluctuating drum temperatures

This OEM replacement thermostat is compatible with GE, Hotpoint, and some Kenmore models.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This is a genuine GE replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. A simple fastener that helps keep assemblies aligned and functioning safely. What it does:

• Secures panels, brackets, and small components in place
• Prevents noise from loose parts and maintains structural alignment
• Restores proper fastening after repairs or wear
• Matches OEM fit for reliable replacement

• Disconnect power to the appliance before accessing internal parts
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to prevent damage
• Replace any damaged or missing fasteners with the same OEM part for best results

This blower housing directs airflow from the dryer motor to the drum and exhaust, keeping proper ventilation for efficient drying. Replaces a worn or damaged housing to restore normal airflow and reduce noise or overheating risks. What it does

• Channels air from the blower wheel to the drum and vent system for proper drying.
• Helps prevent recirculation of lint and hot air that can reduce drying performance.
• Can cause reduced drying, longer cycles, or unusual blower noise when cracked or clogged.
• Supports the blower wheel and seals to maintain consistent airflow.

• Disconnect power (and gas supply for gas dryers) before servicing.
• Removal typically requires opening the dryer cabinet and removing the drum; follow the model's service manual.
• Inspect the blower wheel, housing mounting tabs, and vent path for debris or damage before reassembly.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This motor drive and pulley kit replaces the dryer drive motor assembly and matching pulley to restore drum rotation for drying performance. Designed as a direct-replacement kit to replace worn or failed drive components. What it does:

• Spins the dryer drum by transferring motor torque to the drum assembly.
• Restores normal tumbling when a failed motor or damaged pulley prevents rotation.
• Reduces unusual motor or pulley-related noise when worn parts are replaced.
• Helps resolve dryer starting or stopping problems caused by a seized or damaged drive assembly.

• One motor drive and pulley kit (motor drive assembly plus matching pulley)

• Disconnect power before service to avoid electric shock; this kit services mains-powered dryers.
• Basic hand tools and moderate mechanical skill are typically required.
• Inspect the dryer belt, idler and mounting hardware while replacing the drive; replace any worn accessories for best results.

This idler bracket secures the dryer/tumble assembly's idler pulley, helping maintain proper belt tension for smooth drum rotation and reliable clothes movement. It restores correct pulley alignment and reduces belt slippage or noise. What it does:

• Holds the idler pulley in the correct position so the drive belt stays tensioned
• Prevents excess belt wear and slipping that can stop the drum from turning
• Helps reduce vibration and squeaking caused by a loose or misaligned pulley
• Works with the idler pulley and belt to enable consistent drum rotation

• Replace with the dryer unplugged and gas supply turned off (if applicable)
• Inspect the idler pulley and drive belt; replace if worn for best results
• Basic hand tools are typically required; verify access and clearance before starting
• Torque fasteners to OEM specifications if available

This idler arm supports belt tension and helps the dryer drum rotate smoothly so clothes tumble evenly. It replaces a worn or damaged idler to restore proper belt tracking and reduce abnormal noise. What it does:

• Provides pulley support and proper tension for the dryer drive belt
• Keeps the drive belt aligned to prevent slipping or coming off the drum
• Helps the drum rotate smoothly for even tumbling and drying
• Common symptom fixes: noisy operation, belt squeal, drum not turning or belt off track

• One idler arm long vent assembly

• Disconnect power before starting any repair
• Access typically requires removing dryer front or rear panels; refer to your model's service instructions
• Inspect the drive belt and pulley when replacing the idler; replace worn components as needed
• Use basic hand tools; keep fasteners organized and follow safety precautions

This duct exhaust directs and channels appliance exhaust air to the venting system to help remove heat, steam and odors from the unit. Fits into the appliance's vent path to restore proper airflow and venting performance. What it does:

• Channels exhaust air from the appliance to the household venting system
• Restores a sealed outlet path to reduce backflow and poor venting
• Helps prevent overheating and moisture buildup in the appliance cabinet area
• Commonly replaced when the existing duct is cracked, warped or missing

• Disconnect power and gas (if applicable) before servicing; follow manufacturer safety instructions
• Verify orientation and seating into the appliance vent before tightening fasteners
• Use proper venting materials and clamps when reconnecting to the home vent system

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.
