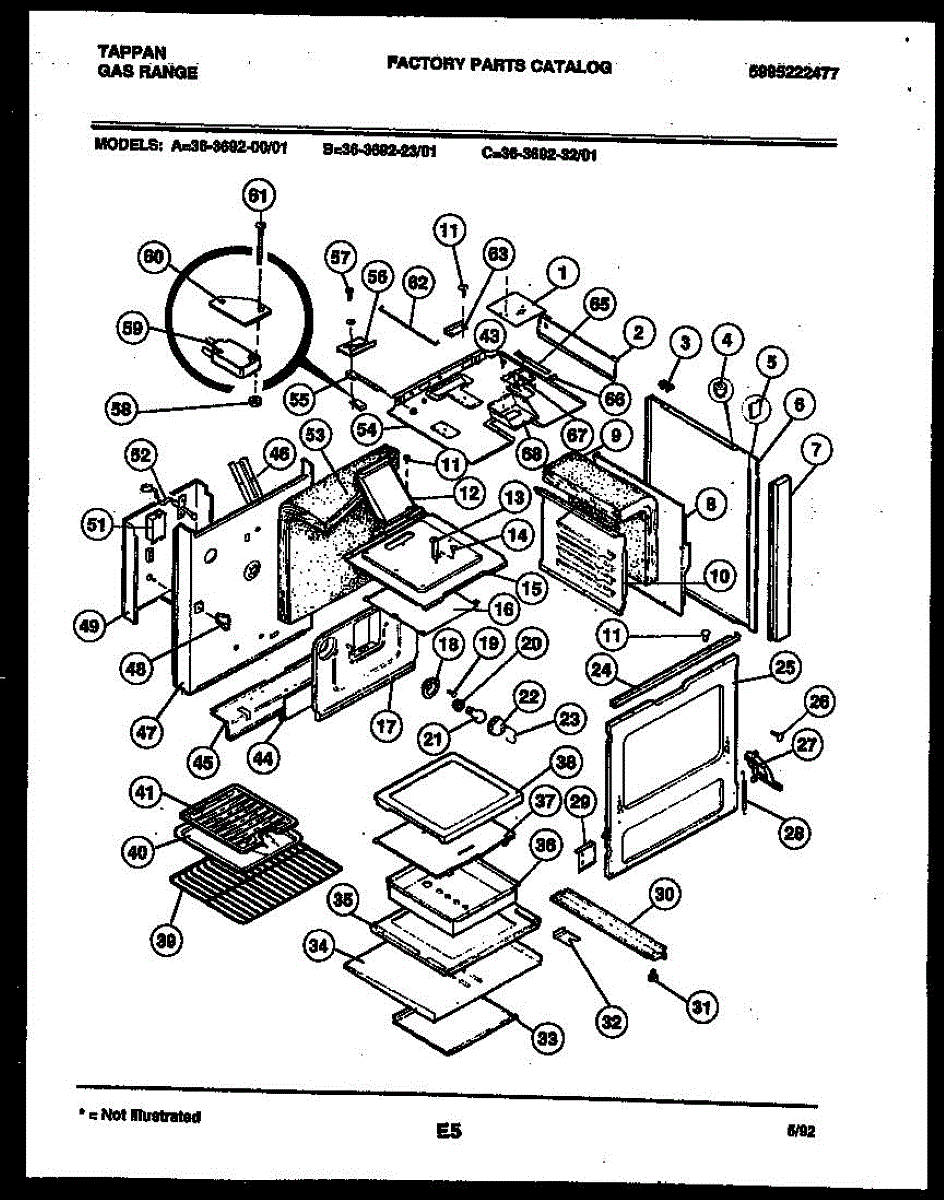

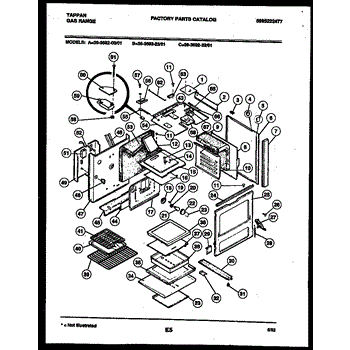

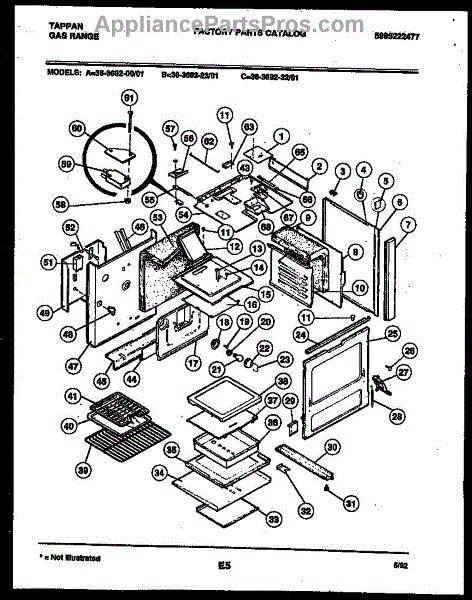

Parts for Frigidaire 36-3692-00-01: 06 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

Hex washer head ,10-32 x 0.375. Ground

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: For the right side use 318348800

The Hinge Assembly is an OEM part for Frigidaire ranges. This part allows the oven door to open and close smoothly while providing a secure attachment to the range body.

Causes of a bad Hinge Assembly can include wear and tear over time, physical damage from impact or mishandling, or failure of the internal mechanisms due to exposure to high temperatures or debris buildup.

Symptoms of a bad Hinge Assembly include:

• Difficulty opening or closing the oven door
• The door feeling loose or wobbly when opening or closing
• The door failing to stay in the open position
• Excessive noise or grinding sounds when operating the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Restore balanced, controlled oven door movement with this oven door spring. Replacing a worn or broken spring helps the door open and close smoothly and reduces sagging or sudden drops for safer, more reliable use. What it does:

• Provides counterbalance for the oven door hinge so the door opens and closes smoothly.
• Reduces door sagging, dropping, or closing too quickly caused by stretched or broken springs.
• Replaces the worn spring that can cause uneven or loose door movement.
• Helps restore proper door alignment and consistent hinge tension.

• Disconnect power to the appliance before beginning any repair.
• Springs are under tension—wear eye protection and gloves and use proper tools when removing/installing.
• Compare the new spring to the removed part to ensure correct orientation and fit before final installation.
• If the opposite door spring shows wear, replace both to maintain balanced door operation.

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This factory replacement oven probe kit lets your range or wall oven sense temperature during probe-cook cycles. It restores reliable probe detection and accurate temperature feedback to help your control end cooking at the right time.

• Senses temperature and relays readings to the electronic control during probe-assisted cooking
• Supports probe-cook features that stop or hold when the target temperature is reached
• Common symptoms: "PROBE" error or no detection, erratic/stuck readings, or visible damage/corrosion on the probe or receptacle
• Replaces heat-damaged or worn probe components to ensure consistent contact and accurate feedback

• Disconnect power to the appliance before servicing
• Access may require removing the oven from the cabinet; route wiring along the factory path and away from hot surfaces
• Handle connectors and sensor tip carefully; do not kink the cable
• After installation, run a brief probe test per the user/service manual to confirm proper operation

This replacement nut secures threaded fasteners on compatible Frigidaire appliances to hold panels and components in place. It restores proper fastening where a stripped, missing, or damaged nut causes loose parts or noise. What it does:

• Secures bolts and studs to keep panels, brackets, and components mounted firmly
• Prevents fasteners from backing out and reduces vibration-related noise
• Common symptom: loose or rattling panels or components near the fastener location
• Replaces corroded, rounded, or stripped nuts to restore reliable fastening

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct wrench or socket to avoid rounding the nut; match thread and size exactly
• Tighten snugly but avoid overtightening to prevent stripped threads or warped components
• If threads are damaged, replace both the nut and the mating bolt/stud for a secure fit

A replacement support rod bracket that secures the refrigerator/freezer support rod to the cabinet, restoring proper door support and alignment for smooth opening and closing. Designed to match OEM fit and function. What it does:

• Holds the end of the door support rod in place to keep the door properly supported
• Prevents the support rod from slipping or detaching during normal use
• Helps restore correct door alignment and reduce sagging or uneven closing
• Works with the matching support rod and mounting hardware to maintain stable operation

• Inspect the support rod and mounting area for damage; replace any additional worn parts for a complete repair
• Remove power to the appliance and empty the door area before beginning work for safety
• Typically secures with existing screws or clips; keep original fasteners unless replacements are provided
