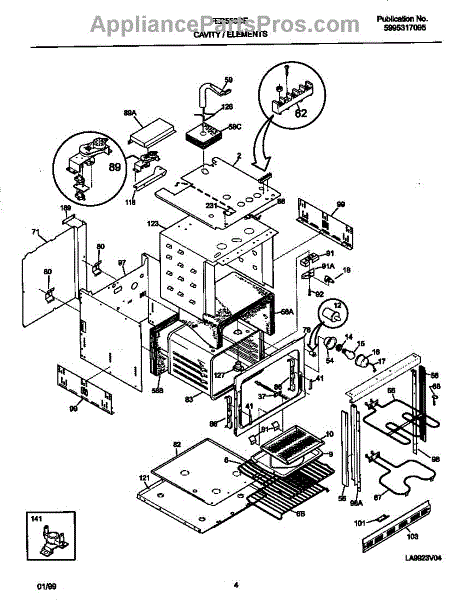

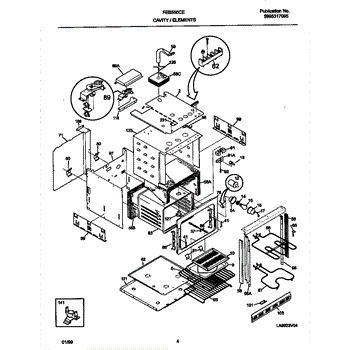

Parts for Frigidaire FEB556CETF: 03 - Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has three terminals.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Sensor Probe is an OEM part for Frigidaire ovens and ranges. This sensor is essential for monitoring the oven's internal temperature and communicating with the control board to maintain accurate cooking temperatures. It helps ensure that your oven heats to the desired setting and maintains consistent temperatures throughout the cooking process.

You should replace this sensor probe if it becomes faulty. Common issues that lead to a bad sensor probe include regular wear and tear, exposure to high temperatures over extended periods, or electrical failures within the sensor itself. Physical damage from accidental impacts during cleaning or maintenance can also compromise the sensor's functionality.

Symptoms of a bad sensor probe include:

• Inaccurate oven temperature readings
• Oven not reaching the set temperature
• Error codes related to temperature control
• Oven overheating or underheating

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM replacement part for  Frigidaire electric ranges. It is an electric heating component located at the top of the oven used for broiling food. The broil element generates intense radiant heat from above, allowing food to brown and crisp up while also cooking from direct heat exposure. It is crucial for the broil cooking function.

Symptoms of a bad broil element include:

• The broil feature failing to get the oven hot enough or working inconsistently
• Discoloration, rusting, or other signs of deterioration on the element
• Tripping of the circuit breaker or thermostat when using broil
• Food not browning or crisping up as expected under the broiler

Causes can be standard wear and tear over many heating and cooling cycles or damage from cleaning products or spatters inside the oven.

This OEM Frigidaire replacement part is also compatible with some Electrolux, Westinghouse, and Kenmore electric ranges.

The Bake Element is an OEM part for Frigidaire ranges. It functions as the lower heating element responsible for baking. The element heats the bottom of the oven cavity, ensuring foods are cooked evenly from the bottom up by radiant heat transfer.

Symptoms of a bad lower baking element include:

• Uneven or poor bottom cooking of baked goods
• Foods not browning or crisping properly on the bottom
• The oven failing to reach or maintain set baking temperatures

Causes can be cracked or damaged insulators leading to short-circuiting or failure to glow red-hot. Overheating may also cause element coils to warp or break over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This back-side wrapper is the outer rear panel that covers and protects the appliance's rear components while restoring the unit's finished appearance. It helps keep wiring and parts shielded from dust and incidental contact. What it does:

• Covers the appliance's rear area to protect wiring and components from dust and damage
• Restores a finished exterior surface for a neat appearance
• Helps reduce incidental contact with internal parts during normal use
• Can stop minor drafts or air movement that occur through a damaged or missing rear wrapper

• Disconnect power to the appliance before beginning any service
• Remove access panels or mounting clips as required to reach the rear wrapper
• Use basic hand tools; support the panel during removal/installation to avoid scratching adjacent surfaces

This trim bracket secures a decorative trim piece to the appliance, restoring proper fit and appearance. Replaces a damaged or missing bracket so trim stays aligned and stable. What it does

• Anchors the exterior trim to the appliance frame so the trim does not sag or separate.
• Helps eliminate visible gaps or misalignment between trim and appliance body.
• Common symptom: trim that moves, rattles, or falls away when touched.
• Common symptom: visible gap or uneven trim edges after impact or wear.

• One trim bracket

• Disconnect power to the appliance before beginning work to avoid injury.
• Remove trim and fasteners carefully; keep screws and clips for reassembly.
• Use basic hand tools (screwdriver, nut driver) — do not force parts; align bracket before tightening.
• If trim is bent or damaged, replace the trim piece as needed for a proper fit.

This adapter assembly joins and aligns mating parts inside the appliance so they fit securely and operate as designed. Replace a cracked or missing adapter to restore proper fit and eliminate looseness or misalignment after service. What it does:

• Provides the correct spacing and alignment between connected components
• Helps secure parts to reduce vibration, rattling, or shifting
• Restores proper fitment after a component replacement or repair
• Replace if the original is cracked, warped, or missing mounting features

• One adapter assembly

• Disconnect power and allow the appliance to cool before servicing
• Note the original orientation and take photos to aid reassembly
• Transfer any reusable screws/clips from the old part if needed
• Test fit and alignment before fully tightening fasteners

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This padded washer is a cushioned fastener washer that helps protect surfaces and reduce vibration where a bolt or screw passes through. It cushions metal-to-metal contact and helps prevent damage and loosening. What it does:

• Cushions and protects mating surfaces from wear and scratching
• Dampens minor vibration and reduces noise around the fastening point
• Helps maintain a secure connection by filling gaps and distributing load
• Commonly used where a soft barrier is needed between a fastener and equipment panel

• One padded washer

• Inspect the washer for damage or compression before reuse; replace if deteriorated
• Position the padded side toward the surface that needs protection
• Use the correct bolt or screw size for a snug fit; avoid over-tightening which can compress the pad
• Follow all safety precautions: unplug power and remove water supply before servicing appliances

Hex washer head ,10-32 x 0.375. Ground
