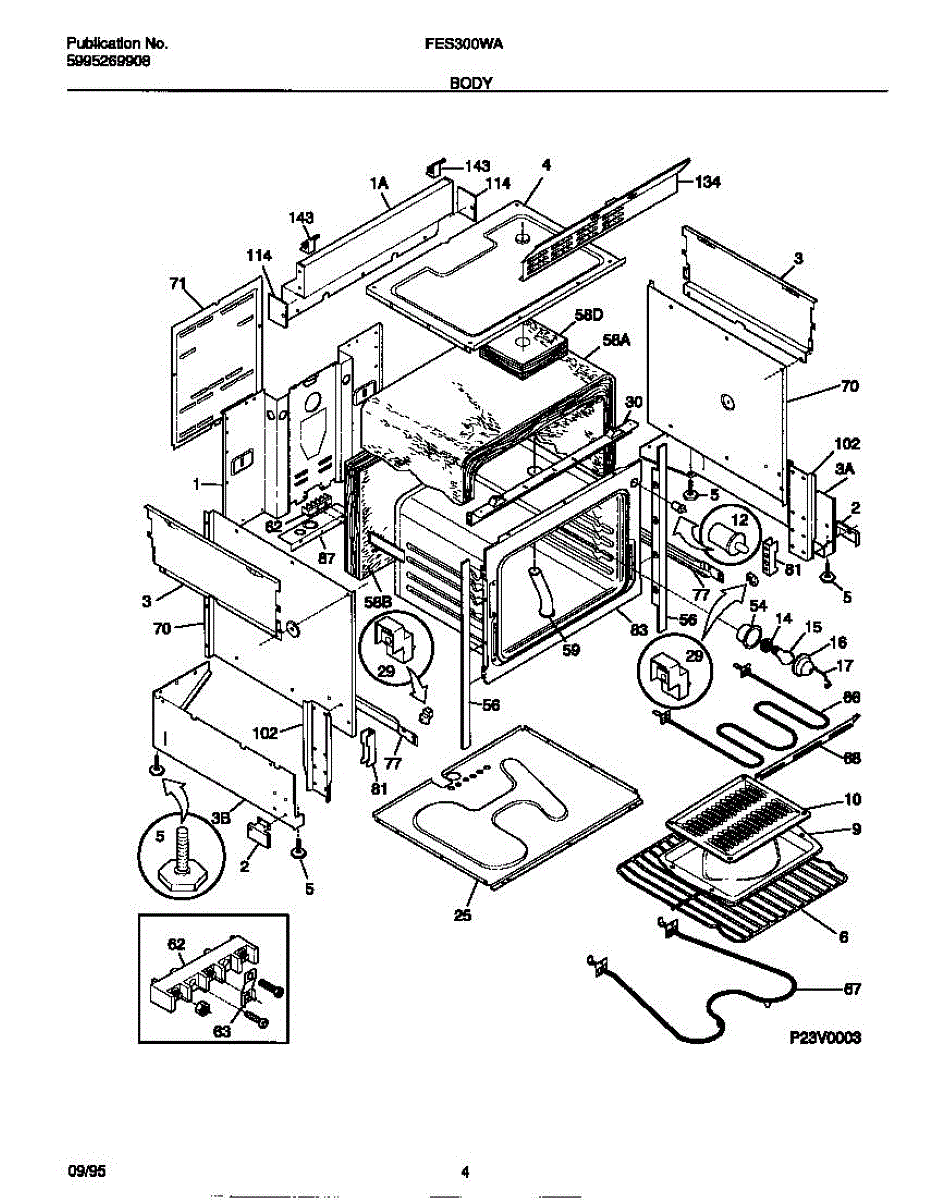

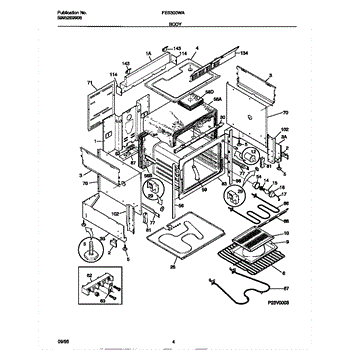

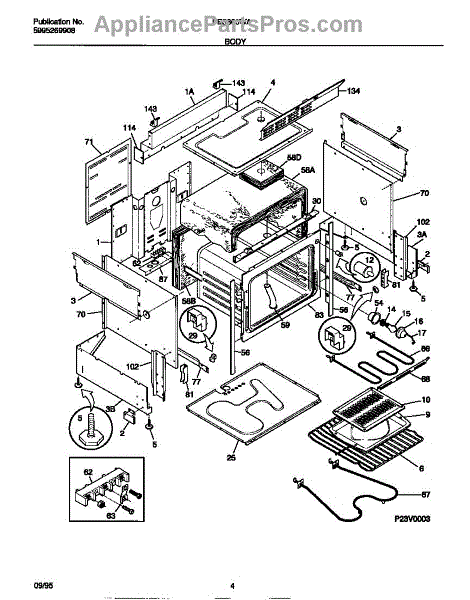

Parts for Frigidaire FES300WABC: 03 - Body Parts

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has two terminals.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This vent tube directs airflow or drainage away from internal components to the appliance vent opening, helping maintain proper venting and reduce buildup. A simple replacement when the original tube is cracked, split, or disconnected. What it does:

• Routes vented air or condensate from internal ducts to the exterior vent
• Restores proper airflow path when the original tube is damaged or collapsed
• Helps prevent leaks or pooling caused by cracked or disconnected vent tubing
• Reduces chances of performance issues related to restricted venting

• Disconnect power (and gas supply on gas appliances) before starting any repair.
• Inspect surrounding ducts and seals; replace any damaged clamps or connectors for a secure fit.
• Push or clamp the tube fully onto both mating fittings to prevent leaks; secure with the proper fasteners.
• Use basic hand tools.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This broil element mounts at the top of the oven cavity and provides high, radiant heat for broiling and top-browning. Replace it if the broiler won't heat, heats unevenly, or the element shows visible damage.

• Delivers intense, top-down radiant heat for broiling and finishing dishes
• Restores broil performance when the original element is open, shorted, or weak
• Common symptoms: no broil heat, only part of the element glows, uneven browning, visible blisters/cracks, tripping the breaker
• Direct replacement designed to fit and connect to existing terminals

• Disconnect power at the breaker or unplug the range before servicing; high-voltage hazard
• Remove oven racks; take out element mounting screws and carefully pull the element forward to access terminals
• Transfer wires one at a time and support them to prevent retracting into the insulation; ensure tight, clean connections
• Reinstall screws, restore power, and test broil for an even, consistent glow

The bake element is an OEM replacement part for Frigidaire ovens. This element is located at the bottom of the oven cavity and is responsible for providing the heat needed for baking. When the oven is turned on, electrical current flows through the bake element, causing it to heat up and glow red. This process radiates heat evenly throughout the oven, ensuring that food is cooked thoroughly and uniformly.

Causes of a bad Oven Bake Element include visible damage such as blistering or holes, which can occur after years of use or from food spillages that corrode the metal. Additionally, a malfunctioning element may not glow red or may only partially heat, indicating that it's unable to conduct electricity effectively.

Symptoms of a bad Oven Bake Element include:

• The oven not heating up properly or at all
• Uneven cooking or baking results
• The element not glowing when the oven is turned on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This part has been discontinued by the manufacturer and is no longer available.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
