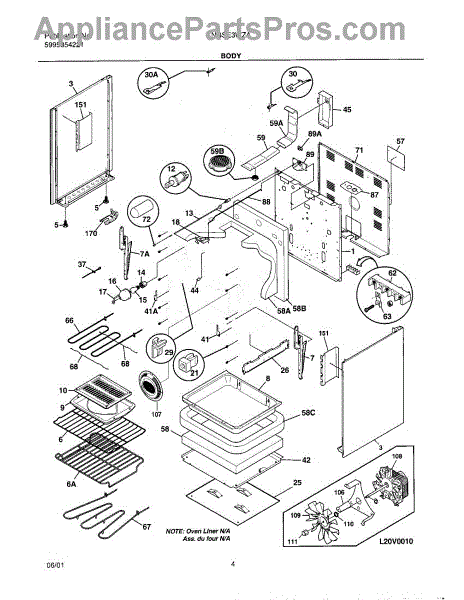

Parts for Frigidaire NGSE3WZABA: 05 - Body Parts

Replacement back panel for your electric range. Covers the rear of the range chassis. Order a new panel if yours is cracked, damaged, or missing.

Plastic leveling leg.

Replace your cracked, warped, or hard-to-clean oven rack. This durable rack installs inside your range oven to support cookware during baking and roasting.

This is the left side door hinge. For right side use 316216500.

Right side oven door hinge for your range. Replaces broken, bent, or worn hinges that prevent proper door closure. Installs on range frame. Sold individually.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

Replace your oven's light lens cover if cracked, broken, or missing. Protects the bulb and restores interior visibility. Confirm fit with your model.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Body-side spacer for gas range door or lid hardware. Installs on cabinet side to set correct stand-off and alignment. Replace if cracked or missing.

Plastic glide that attaches to the front of your range body to support the bottom storage drawer. Replace if cracked, broken, or missing for smooth operation.

Right-hand hinge bracket for gas range main top. Secures the cooktop hinge assembly. Replace if cracked, bent, or missing to restore proper alignment.

Left-hand hinge bracket for gas range main top. Secures and supports the range top hinge assembly. Replace if bent, cracked, or broken to restore proper fit.

Fixes oven not reaching correct temperature or displaying error codes. This temperature sensor probe monitors and regulates oven heat. Easy DIY fix.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Lower wool shield for electric ranges. Installs beneath the cooktop to provide insulation. Replace if damaged, torn, or missing for proper heat protection.

Plastic spacer that positions the oven door correctly during opening and closing. Replace if cracked, broken, or missing to restore proper door alignment.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Replacement access cover kit for electric ranges. Covers internal components and wiring. Order a new kit if your original is cracked, broken, or missing.

Upper oven vent tube for gas and electric ranges. Channels hot air from the oven cavity to the exterior vent. Replace if cracked, damaged, or missing.

Ceramic catalyst insert for range oven vents. Breaks down cooking odors and residues at high temperatures. Replace if cracked, clogged, or missing.

Range won't power on or tripped breaker? Burnt or loose terminal block connections are often the cause. This kit restores safe power delivery. DIY-friendly.

This part has been discontinued by the manufacturer and is no longer available.

Broil element not heating or burnt out? This upper heating element restores intense top heat for broiling meats and melting cheese. Easy DIY repair.

Oven not heating or preheating slowly? A failed bake element is usually the cause. This direct-heat component restores even baking. DIY repair in 30 minutes.

Support bracket that secures the broil heating element in your range oven. Replace if cracked, broken, or missing to properly mount the broiler element.

Replace a cracked, damaged, or missing shield on your electric range. This structural component protects internal parts and maintains proper assembly.

Protective cover for the light switch rod end assembly. Replace if cracked, broken, or missing to shield the switch and maintain proper door light operation.

Mounting plate for electric and gas ranges. Secures components in place. Replace if cracked, bent, or broken to restore proper structural support.

Replacement door latch rod for electric and gas ranges. Installs in the door mechanism to secure the latch assembly. Order a new rod if broken or missing.

Protects the evaporator fan assembly and directs airflow in your range. Replace if cracked, broken, or missing to restore proper airflow and shield the fan.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

Secures oven handles, doors, and internal panels. Replace if cracked, missing, or worn. Installs with screws to hold components firmly in place.

Securing nut for ovens and ranges. Holds interior components like convection fans in place. Replace if stripped, damaged, or missing during repair.

Paper template for positioning and installing the anti-tip bracket on your range. Helps ensure accurate placement during installation or replacement.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

8-18 x 0.5 inch mounting screw for electric and gas ranges. Replaces lost, stripped, or corroded screws used to secure components and panels.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Size: 10-32 x 0.312 inch. Color: Black.
