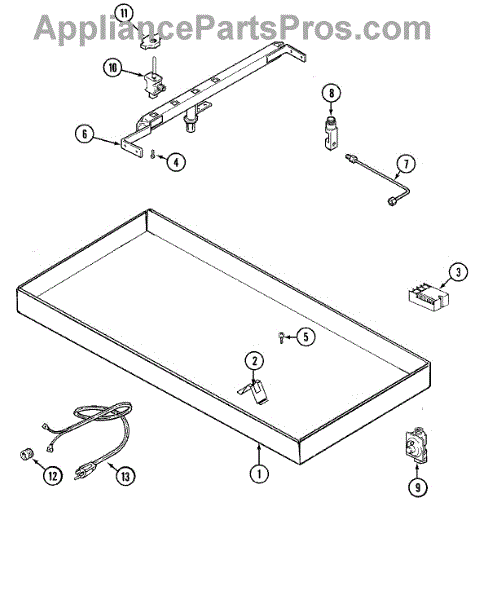

Parts for Jenn-Air CCGX2620B: 01 - Body Parts

This spark module supplies the high-voltage pulses that light your gas burners. Replacing a weak or failed module restores fast, consistent ignition and helps eliminate the hassle of burners that won't spark or click unpredictably.

• Generates high-voltage pulses to each burner igniter when a control is turned to Light
• Helps restore ignition when all or multiple burners won't spark
• May address intermittent or weak sparking and delayed ignition
• Can help resolve continuous clicking caused by a failed ignition control

• Disconnect electrical power and shut off gas before servicing
• Note wire locations; transfer connectors one at a time to the new module
• Mount securely and ensure proper grounding; keep wiring routed away from sharp edges and heat
• Restore power/gas and verify each burner sparks and lights properly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This gas tubing supplies fuel from the household gas line to the appliance's regulator or manifold, restoring proper gas flow for reliable burner operation. It's a direct-replacement style tubing used where a 60-inch feed is required. What it does

• Replaces damaged or corroded gas supply tubing to restore safe gas delivery
• Helps resolve issues like weak or no burner flame when tubing is obstructed or compromised
• Prevents kinked or pinched lines from restricting flow when installed correctly
• Intended for use with compatible gas ranges/ovens and gas connections

• One 60-inch gas tubing assembly

• Turn off the gas supply and electrical power before attempting replacement
• Use proper fittings and thread sealant rated for gas; inspect all joints for leaks after installation
• Do not modify or shorten tubing except with approved fittings and methods

This orifice spud controls propane fuel flow to a gas burner for safe, consistent flame performance. It replaces a worn or damaged LP orifice to restore proper burner operation and even heating. What it does:

• Meter fuel to the burner for correct propane (LP) combustion
• Helps maintain steady flame and consistent heat output
• Commonly replaced when burners burn unevenly or fail to light reliably
• Designed to fit the factory orifice holder and seating on compatible ranges

• Turn off gas supply and power before servicing; follow all local codes
• Only install on appliances configured for propane (LP); do not mix with natural gas or different orifice sizes
• Use proper tools to avoid damaging the orifice seating; check for leaks after installation

This LP gas orifice delivers the correct low-pressure fuel flow for compatible gas ranges and cooktops, restoring even burner flames and reliable heating performance when the original orifice is worn or replaced for conversion. What it does:

• Controls LP gas flow to the burner for stable, efficient combustion
• Helps restore consistent flame size and even heating across the burner
• Commonly replaced when burners sputter, burn unevenly, or fail to light properly
• Sized for LP service (4.500) to match appliance conversion requirements

• One LP orifice (4.500) as shown

• Turn off gas supply and electricity to the appliance before starting work
• Inspect seals and fittings for leaks after installation and perform a leak test per local codes
• No additional gaskets or adapters included; confirm fit before installation

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


A replacement switch/ignitor that restores spark ignition so gas burners or the oven will light reliably. Designed to replace a failed ignition switch and help recover consistent sparking for normal appliance operation. What it does:

• Sends the spark needed to ignite gas burners or the oven burner.
• Common symptom: burners or oven won't light or ignition clicks without sparking.
• Can fix intermittent ignition or complete loss of spark at the cooktop/oven.
• Works as the electrical switching/ignition component within the appliance's ignition circuit.

• Disconnect power and shut off the gas supply before beginning any work.
• Handle wires and terminals carefully; avoid bending or damaging the igniter wiring.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly
