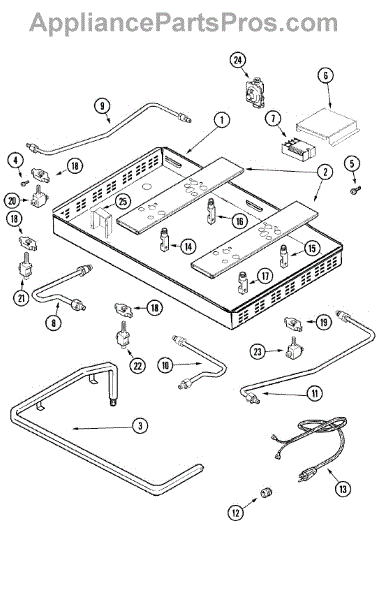

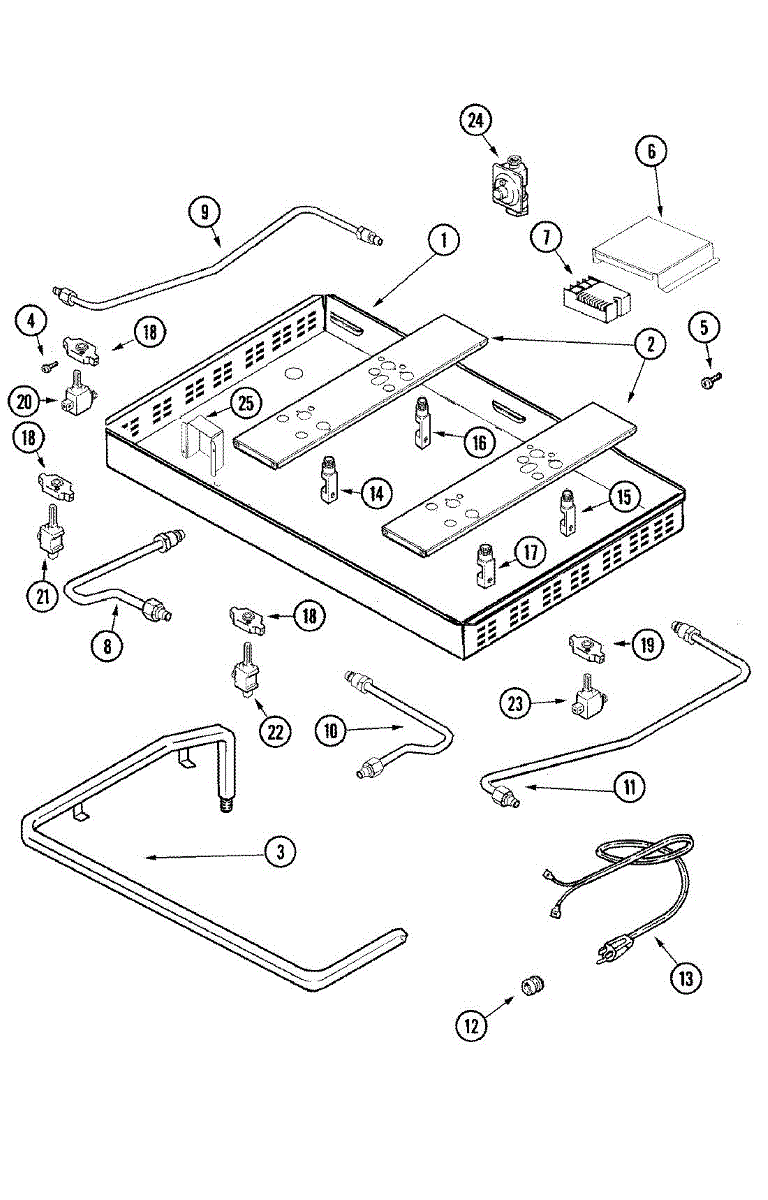

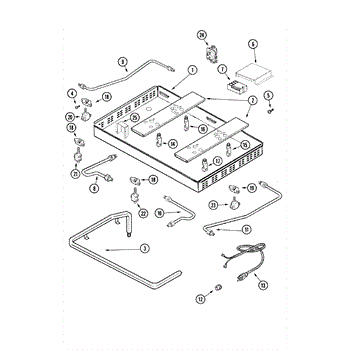

Parts for Jenn-Air JGC8430ADB: 01 - Body Parts

This 1/4-20 screw is a threaded fastener used to secure panels and components on compatible appliances, restoring proper fit and reducing vibration or movement. Easy to replace with common hand tools. What it does:

• Secures panels, brackets or components to keep parts properly aligned
• Stops rattling or vibration caused by loose fasteners
• Restores a solid attachment where a missing or damaged screw causes gaps
• Matches the standard 1/4-20 machine screw thread for correct fit

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct sized driver or socket to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid overtightening to prevent damage
• Keep removed hardware in a labeled bag for reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

This LP gas orifice delivers the correct low-pressure fuel flow for compatible gas ranges and cooktops, restoring even burner flames and reliable heating performance when the original orifice is worn or replaced for conversion. What it does:

• Controls LP gas flow to the burner for stable, efficient combustion
• Helps restore consistent flame size and even heating across the burner
• Commonly replaced when burners sputter, burn unevenly, or fail to light properly
• Sized for LP service (4.500) to match appliance conversion requirements

• One LP orifice (4.500) as shown

• Turn off gas supply and electricity to the appliance before starting work
• Inspect seals and fittings for leaks after installation and perform a leak test per local codes
• No additional gaskets or adapters included; confirm fit before installation

This orifice spud controls propane fuel flow to a gas burner for safe, consistent flame performance. It replaces a worn or damaged LP orifice to restore proper burner operation and even heating. What it does:

• Meter fuel to the burner for correct propane (LP) combustion
• Helps maintain steady flame and consistent heat output
• Commonly replaced when burners burn unevenly or fail to light reliably
• Designed to fit the factory orifice holder and seating on compatible ranges

• Turn off gas supply and power before servicing; follow all local codes
• Only install on appliances configured for propane (LP); do not mix with natural gas or different orifice sizes
• Use proper tools to avoid damaging the orifice seating; check for leaks after installation

This orifice spud controls propane fuel flow to a gas burner for safe, consistent flame performance. It replaces a worn or damaged LP orifice to restore proper burner operation and even heating. What it does:

• Meter fuel to the burner for correct propane (LP) combustion
• Helps maintain steady flame and consistent heat output
• Commonly replaced when burners burn unevenly or fail to light reliably
• Designed to fit the factory orifice holder and seating on compatible ranges

• Turn off gas supply and power before servicing; follow all local codes
• Only install on appliances configured for propane (LP); do not mix with natural gas or different orifice sizes
• Use proper tools to avoid damaging the orifice seating; check for leaks after installation

This igniter switch controls power to the oven/range igniter so burners light reliably. It replaces a worn or failed switch to restore normal spark/ignition operation and help the appliance heat safely and consistently. What it does:

• Routes electrical power to the gas igniter when the control calls for heat
• Commonly replaced when the range/oven fails to light or sparks inconsistently
• Helps restore reliable ignition and prevent no-heat or intermittent-lighting symptoms
• Works as the electrical actuation point between the appliance control and igniter

• One igniter switch

• Disconnect power to the appliance before inspecting or replacing the switch
• For gas appliances, also shut off the gas supply and verify no leaks after service
• Inspect wiring and connectors for damage; use matching connectors and secure grounding

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
