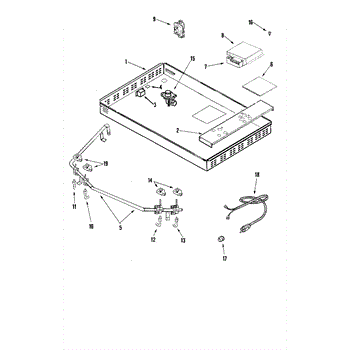

Parts for Jenn-Air JGC8430BDS: 01 - Body Parts

This adhesive tape is a replacement sticky mounting tape used to secure trim, insulation, or small components inside appliances. It provides a quick, low-profile way to hold parts in place during normal use and repairs. What it does:

• Provides a strong bond for light trim, insulation, or panel edges
• Helps keep loose wiring or small components secured and out of the way
• Reduces rattles caused by unsecured panels or trim
• Useful for reattaching factory-applied tape that has worn or peeled

• Surface must be clean, dry, and free of grease for best adhesion
• Apply firm pressure and allow tape to set before restoring appliance use
• Wear gloves if skin sensitivity is a concern; avoid contact with eyes
• Not a structural fastener—use only for light-duty securing as intended

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This right-side burner switch controls heat output on the cooktop so burners respond correctly to your knob settings. It restores proper power and temperature control for a single right-side heating element. What it does:

• Replaces a worn or faulty right burner control to restore variable heat settings
• Enables proper on/off function and temperature regulation for the right cooktop element
• Commonly used when a burner won't heat, only works at certain settings, or cycles unexpectedly
• Works with ranges that use a separate switch for the right front/right rear heating element

• Disconnect power at the breaker before attempting any repair to avoid shock
• Handle wiring terminals carefully; verify connections match the original before reassembly
• Use proper tools and avoid overtightening mounting hardware to prevent damage

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

This gas surface-burner orifice holder serves the 15K burner position on many cooktops/ranges. It routes gas from the valve to the burner orifice and keeps the burner properly aligned for consistent ignition and flame.

• Channels gas from the surface valve to the orifice for the 15K burner
• Rigidly locates the burner base and orifice for correct flame pattern and ignition
• Common symptoms of a failed holder include: burner clicking but not lighting, weak/small or uneven flame, or intermittent ignition on that burner
• Replacement restores proper alignment and gas flow at the affected burner

• Shut off gas supply and disconnect power; allow the appliance to cool
• Remove grates, caps, and burner heads; lift/open the top to access the holder
• Note orientation, disconnect tubing, remove mounting screws, and install the new holder in the same position; transfer any fittings as needed
• After reassembly, perform a soap-and-water leak check at all serviced connections before use

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

This burner switch controls the power and heat settings for a surface cooking element, restoring reliable on/off operation, accurate temperature selection, and consistent element cycling on compatible electric ranges. What it does

• Regulates electrical power to a surface burner so the element heats to selected settings and cycles to maintain temperature.
• Replaces a worn or failed switch that causes a burner to not heat, not respond to knob changes, or only work on certain settings.
• Stops intermittent operation or arcing at the switch caused by worn contacts.
• Helps resolve a burner that stays on or will not turn on when the switch is faulty.

• Always disconnect power at the breaker before starting any repair to avoid shock.
• Photograph and/or label wires before removal so you can reconnect terminals correctly.
• Handle terminals gently and ensure secure, tight connections; replace any damaged wiring or connectors.
• Test the range on all heat settings after installation; if you see arcing, burning smell, or continued malfunction, cut power.
